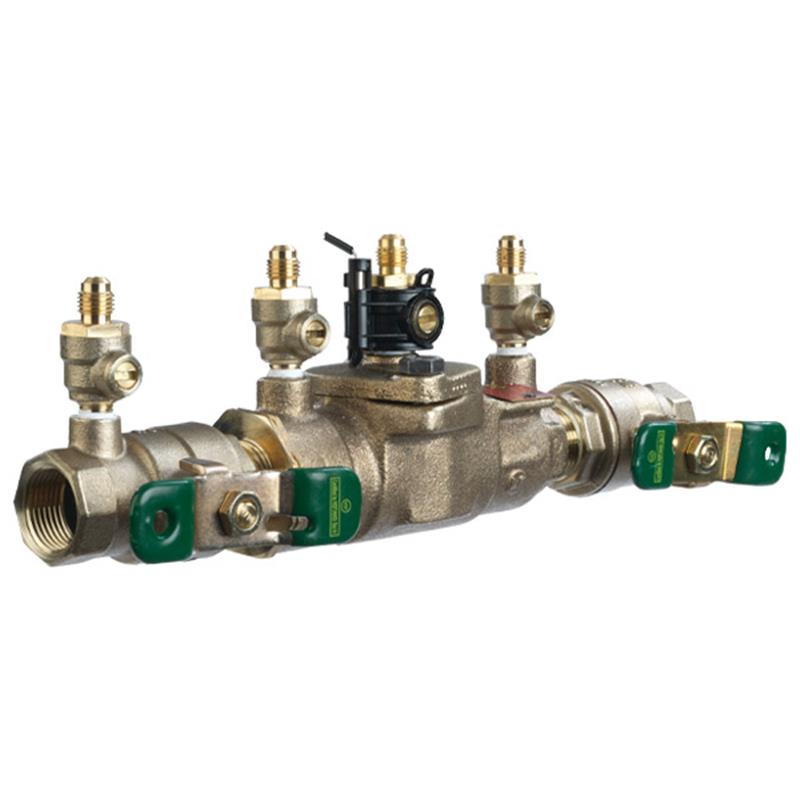

This 3/4 inch lead free double check valve backflow preventer assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage or backpressure in accordance with national plumbing codes and water authority requirements.

Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance.

Components

• Lead Free* cast copper silicon alloy body construction
• NPT end connections
• Quarter turn ball valve shutoffs
• Top mounted test cocks
• Two in-line independent positive seating check modules
• Captured springs
• Replaceable check discs and seats

Freeze Sensor Features

• Includes a freeze sensor for use with SentryPlus Alert® technology to signal facility personnel when temperature nears and reaches the freezing point.
• Available freeze sensor connection kit to activate a monitoring system that triggers alerts for low and freezing temperatures.
• Freeze alerts feature available with an add-on connection kit for Wi-Fi networks, building management systems (BMS), and irrigation management systems (IMS).

WARNING: The freeze sensor solely provides alerts about a possible freeze event and cannot prevent a freeze event from occurring. User action is required to prevent freeze conditions from causing product and/or property damage.
