3/4 LF007M3-QT (W/PRESS)

Item Number: 0063239
1 1
$736.14
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Assembly Size: 3/4 inch
  • Weight: 4.8 lb
  • Body Material: Lead Free Cast Copper Silicon Alloy
  • Connections: Viega ProPress® Adaptors
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F – 180°F
  • Check Valve Type: Double Check
  • Shutoff Valves: Quarter Turn Ball
  • Corrosion Protection: ArmorTek Coating

Description

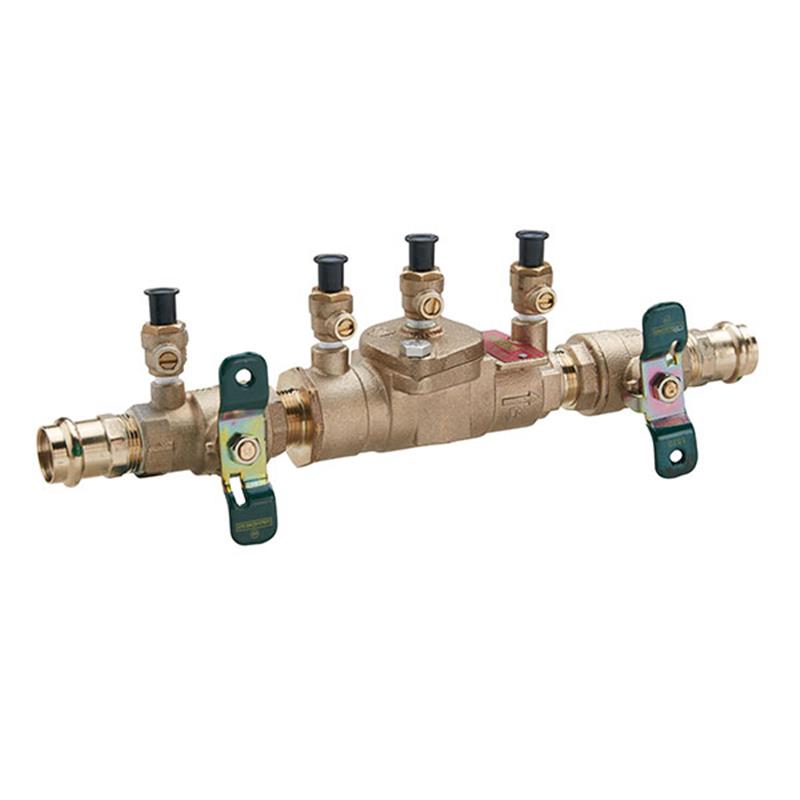

This 3/4 inch Watts Lead Free Double Check Valve Backflow Preventer Assembly with Viega ProPress® adaptors protects potable water from pollution due to backsiphonage or backpressure. Its compact, modular design features a lead free cast copper silicon alloy body, quarter turn shutoffs, and a single top-entry cover for easy in-line maintenance. ArmorTek coating provides corrosion resistance, and it includes two independent check modules. Rated for 175 psi maximum working pressure and approved for horizontal and vertical flow. Item number 0063239.

Help Me Connect

This 3/4 inch Watts Lead Free Double Check Valve Assembly features Viega ProPress® Adaptors on both the inlet and outlet. This allows for quick, flame-free connections to compatible copper or stainless steel tubing systems using a Viega ProPress® tool. The assembly is designed for in-line installation in continuous pressure piping applications.

View full details

Additional Details

This 3/4 inch lead free double check valve backflow preventer assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and/or backpressure in accordance with national plumbing codes and water authority requirements. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards.

Features

  • Lead Free cast copper silicon alloy body construction.
  • Compact, modular design for easy maintenance with a single top-entry access cover.
  • Two in-line independent positive seating check modules with captured springs and replaceable rubber seat discs.
  • Quarter turn ball valve shutoffs and top-mounted test cocks.
  • ArmorTek coating technology resists electrochemical and microbial-induced corrosion.
  • Equipped with Viega ProPress® adaptors for inlet and outlet connections.
  • Approved for horizontal and vertical "flow up" installations.

A freeze sensor solely provides alerts about a possible freeze event and cannot prevent a freeze event from occurring. User action is required to prevent freeze conditions from causing product and/or property damage. An add-on connection kit (sold separately) is required to activate the freeze sensor.

Specifications

  • Body Material: Lead Free* Cast Copper Silicon Alloy
  • Coating: ArmorTek Powder Coating (internal and external surfaces)
  • Check Module: Captured spring and rubber seat disc
  • Access Cover Bolts: Stainless Steel
  • Connections: 3/4 inch Viega ProPress® Adaptors
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F – 180°F (0.5°C – 82°C)
  • Check Valve Assembly Type: Double Check
  • Shutoff Valves: Quarter Turn Ball Valves
  • Test Cocks: Top-mounted, Resilient Seated
  • Overall Length (with ProPress Unions): 13 13/16 inches (350 mm)
  • Weight: 5.0 lbs (2.3 kg)

Certificates & Approvals

  • ASSE Standard 1015
  • AWWA Standard C510
  • IAPMO PS31
  • CSA B64.5
  • ASSE
  • AWWA
  • IAPMO
  • CSA
  • UPC
  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California
  • UL Classified without shutoff valves (3/4" to 2", except 007M3LF)
  • Horizontal and vertical "flow up" approval on all sizes

FAQs

What type of connections does this backflow preventer use?

This assembly features 3/4 inch Viega ProPress® adaptors on both the inlet and outlet, designed for quick and secure flame-free connections.

What is the maximum operating pressure and temperature for this device?

The maximum working pressure for this unit is 175 psi (12.1 bar), and it can operate within a temperature range of 33°F to 180°F (0.5°C to 82°C).

What kind of backflow does this assembly prevent?

This 3/4 inch double check valve assembly is designed to prevent the backflow of polluted water from entering the potable water supply due to both backsiphonage and backpressure.

Are the internal components serviceable or replaceable?

Yes, the check modules, seats, and seat discs are all replaceable. The compact, modular design with a single top-entry access cover facilitates easy in-line maintenance without special tools.

Is this backflow preventer lead-free?

Yes, this assembly features a Lead Free* cast copper silicon alloy body construction, complying with state codes and standards requiring reduced lead content.
