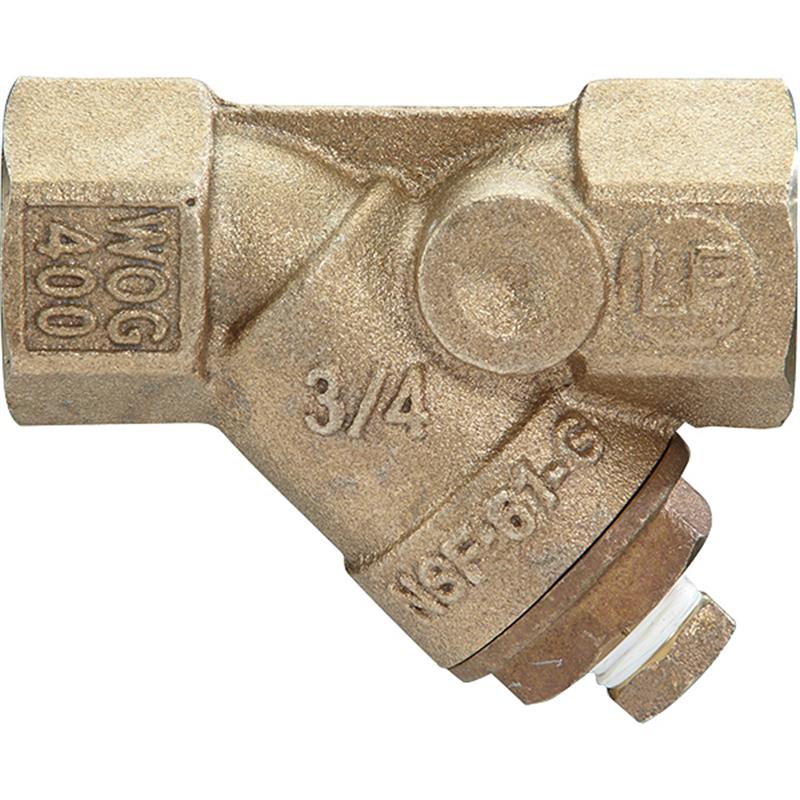

3/4 LF650A

Item Number: 0122976
1 1
$100.12
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 3/4 inch
  • Weight: 10.2 lb
  • Body Material: Cast copper silicon alloy
  • Screen Material: 304 stainless steel
  • Screen Mesh: 20
  • Maximum Working Pressure (WOG): 400 psi
  • Connections: Female NPT
  • Lead Free construction
  • Tapped retainer cap with closure plug

Description

The FEBCO 3/4 inch LF650A Y-strainer is a lead-free solution designed to protect valuable water piping system equipment from foreign material. Constructed from durable cast copper silicon alloy with a 20 mesh 304 stainless steel screen, it effectively filters debris. This Y-pattern strainer features female NPT inlet and outlet connections, a tapped retainer cap with closure plug for easy maintenance, and a maximum working pressure of 400 psi WOG. It ensures compliance with lead-free requirements for potable water applications. Item number 0122976.
View full details

Additional Details

The FEBCO Series LF650A Y-strainer is designed for installation in water piping systems to protect expensive equipment from foreign material and debris.

This 3/4 inch lead-free Y-pattern strainer is crucial for safeguarding components like backflow preventers from damage or failure caused by pipeline contaminants, ensuring system longevity and reliability.

Features

  • Features Lead Free* construction, ensuring compliance with lead-free installation requirements
  • Includes a tapped retainer cap with a closure plug for easy blow-down and maintenance
  • Equipped with a durable 304 stainless steel screen to effectively filter foreign material
  • Designed with recessed screen seats for accurate screen alignment
  • Constructed from high-quality cast copper silicon alloy for body and cap/cover

Specifications

  • Size: 3/4 inch (20mm)
  • Body Material: Cast copper silicon alloy
  • Cap/Cover Material: Cast copper silicon alloy
  • Screen Material: 304 stainless steel
  • Screen Mesh: 20

Pressure & Temperature

  • Maximum Working Pressure (WOG): 400 psi (27.6 bar) @ 210°F (99°C)
  • Maximum Working Pressure (WSP): 125 psi (8.6 bar) @ 353°F (178°C)

FAQs

What is the primary purpose of the FEBCO LF650A Y-strainer?

The primary purpose of this Y-strainer is to protect expensive equipment in water piping systems, such as backflow preventers, from damage or failure caused by foreign material and debris in the pipeline.

What materials are used in the construction of this Y-strainer?

The body and cap/cover are made from cast copper silicon alloy. The screen is constructed from 304 stainless steel with a 20 mesh size, ensuring durability and effective filtration.

What type of connections does the 3/4 inch LF650A strainer utilize?

This 3/4 inch Y-strainer is designed with NPT threaded end connections, specifically featuring female NPT inlets and outlets for secure installation into your piping system.

What is the maximum working pressure rating for the FEBCO LF650A?

The maximum working pressure for this strainer is 400 psi (27.6 bar) for Water, Oil, and Gas (WOG) at 210°F (99°C), and 125 psi (8.6 bar) for Working Steam Pressure (WSP) at 353°F (178°C).

Is this product considered lead-free?

Yes, the FEBCO Series LF650A Y-strainer features lead-free construction. The wetted surface of this product that contacts consumable water contains less than 0.25% of lead by weight, complying with lead-free installation requirements.
