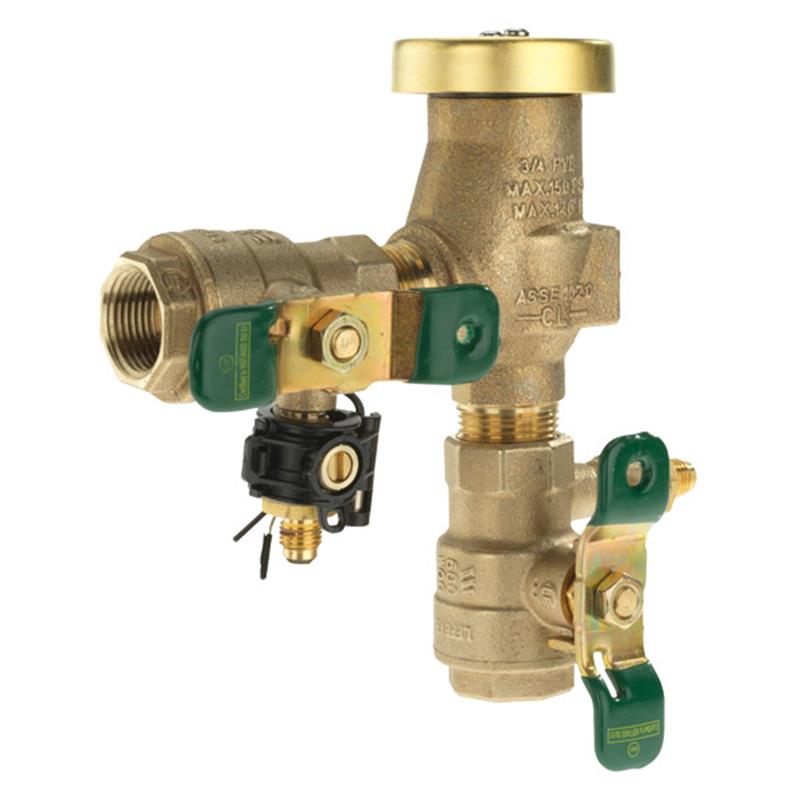

This 3/4 inch lead free anti-siphon pressure vacuum breaker backflow preventer prevents the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It is ideal for health hazard continuous pressure applications such as irrigation systems and industrial process water systems where water enters equipment at or below its flood rim.

Key Features

• Lead free cast copper silicon alloy body construction ensures durability and compliance.
• Features a replaceable plastic seat for easy maintenance of internal parts.
• An acetal bonnet acts as a "freeze plug" to prevent body damage.
• Equipped with an O-ring bonnet seal to reduce the possibility of fouling.
• Includes a silicone seat disc for enhanced durability.
• Test cocks are positioned for easy testing and winterization draining.
• Designed for compact space-saving installation.
• Features two quarter-turn ball valve shutoffs for reliable operation.
• Requires no special tools for servicing.
• Includes an integrated freeze sensor for use with SentryPlus Alert® technology to signal facility personnel when temperatures approach freezing.
• Freeze alerts can be integrated with Wi-Fi networks, building management systems (BMS), and irrigation management systems (IMS) using an optional add-on connection kit.

Materials

• Springs: Stainless steel
• Bonnet: Celcon®
• Vent Disc: Silicone rubber
• Disc Holder Float: Polypropylene
• Check Valve Disc: Silicone rubber
• Check Valve Seat: Noryl® plastic
• Body: Lead Free* cast copper silicon alloy

WARNING: The freeze sensor solely provides alerts about a possible freeze event but cannot prevent a freeze event from occurring. User action is required to prevent freeze conditions from causing product and/or property damage.
