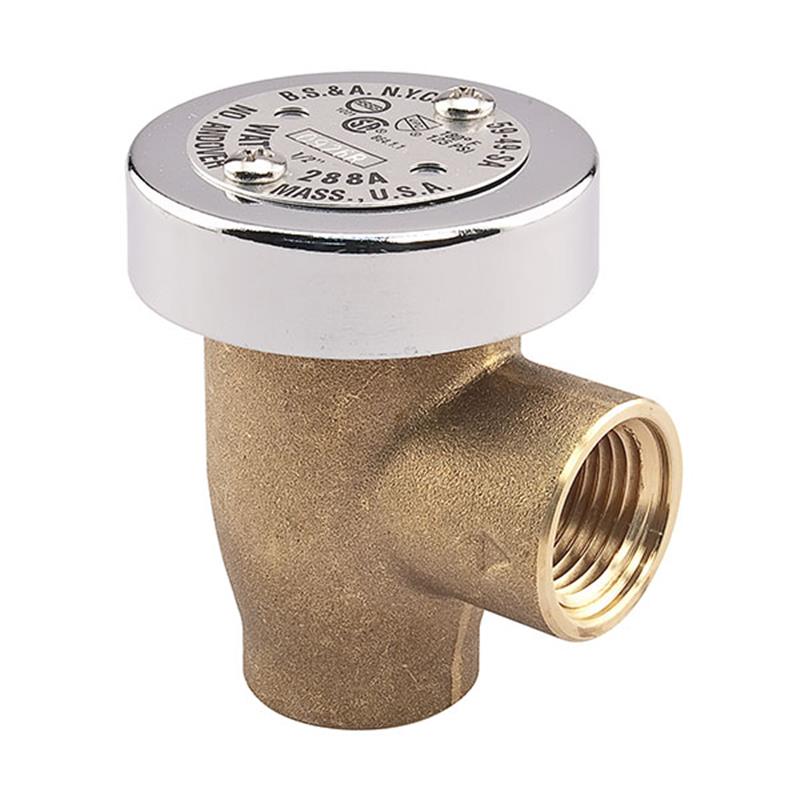

3/4" Watts LF288A Atmospheric Vacuum Breaker

Item Number: 0792039
1 1
$295.12
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Lead Free* Brass Body
  • Weight: 17.5 lb
  • Full Size Orifice: For maximum flow
  • Lightweight Disc Assembly: Prevents spilling
  • Durable Silicone Disc: High heat and water hammer shock resistance
  • Maximum Operating Pressure: 125 PSI
  • Maximum Operating Temperature: 180°F (82°C)
  • Inlet/Outlet: 3/4 inch Female NPT
  • Certifications: ASSE Standard 1001, ANSI A112.1.1, CSA B64.1.1

Description

The 3/4 inch Watts LF288A Anti-Siphon Vacuum Breaker provides essential protection against backsiphonage, preventing contaminated water from entering the potable water supply. Designed for hot or cold water applications, this lead free* brass device features a full-size orifice for optimal flow and a durable silicone disc for tight sealing and resistance to heat and water hammer. It is ideal for low-flow, non-continuous use in health hazard applications like laboratory equipment. Certified to ASSE 1001, ANSI A112.1.1, and CSA B64.1.1, it offers reliable performance up to 125 PSI and 180°F.

Help Me Connect

Installation Guidelines

  • This atmospheric vacuum breaker must be installed a minimum of 6 inches (152mm) above the highest point on the downstream piping to ensure proper function.
  • No shutoff valves should be installed downstream of this anti-siphon vacuum breaker.
  • This device is designed for low flow, non-continuous pressure applications. It must not be subjected to continuous pressure for more than twelve (12) hours per ASSE Std. 1001.
  • This vacuum breaker is not suitable for protection against backpressure backflow. For applications requiring backpressure protection, Watts Series LF909 or LF009 reduced pressure principle backflow preventers should be specified.
View full details

Additional Details

The 3/4 inch Watts Series LF288A Anti-Siphon Vacuum Breaker is engineered to prevent the backsiphonage of contaminated water into a potable water supply. Featuring a full-size orifice, it ensures pipe size capacity and maximum flow with minimal pressure loss. This device is ideal for low-flow, non-continuous hot or cold water applications, such as on laboratory equipment.

Construction & Features

  • Lead Free* Brass Body: Durable construction, compliant with Lead Free* installation requirements.
  • Durable Silicone Disc: Chemical resistant silicone seat disc offers high heat and water hammer shock resistance, ensuring tight seating and preventing spilling under various flow conditions.
  • Full-Size Orifice: Assures pipe size capacity and maximum flow, with streamlined water passages for minimal pressure loss.
  • Chrome Hood: Features an atmospheric vent for effective operation.

This device is not to be used under continuous pressure for more than twelve (12) hours per ASSE Std. 1001, or where there is a possibility that a backpressure condition may develop. Vacuum breakers are not designed or approved to protect against backpressure backflow.

Specifications

General

  • Product Type: Anti-Siphon Vacuum Breaker
  • Model Series: LF288A
  • Nominal Size: 3/4 inch
  • Application: Hot or Cold Water

Materials

  • Body Material: Lead Free* Brass
  • Disc Material: Silicone
  • Hood Material: Chrome

Performance

  • Maximum Operating Pressure: 125 PSI (8.6 bar)
  • Maximum Operating Temperature: 180°F (82°C)

Connections

  • Inlet Connection: 3/4 inch Female NPT
  • Outlet Connection: 3/4 inch Female NPT

Certificates & Approvals

  • ASSE Standard: ASSE Standard 1001
  • ANSI Standard: ANSI A112.1.1
  • CSA Standard: CSA B64.1.1
  • Lead Content: Wetted surface contains less than 0.25% lead by weight

FAQs

What is the primary purpose of the Watts LF288A Anti-Siphon Vacuum Breaker?

Its primary purpose is to prevent backsiphonage, which is the reverse flow of non-potable or contaminated water into a potable drinking water supply, thereby protecting water quality.

What are the connection size and type for this vacuum breaker?

This particular model has a 3/4 inch nominal size with female NPT (National Pipe Thread) inlet and outlet connections.

Can this vacuum breaker be used under continuous pressure?

No, the Watts LF288A is an atmospheric type vacuum breaker and is not designed for continuous pressure applications. It should not be subjected to continuous pressure for more than twelve hours per ASSE Standard 1001.

What materials are used in the construction of the LF288A?

It features a Lead Free* brass body, a durable chemical-resistant silicone seat disc, and a chrome hood with an atmospheric vent.

What types of applications is the LF288A suitable for?

It is ideal for low-flow, non-continuous hot or cold water health hazard applications, such as on laboratory equipment, where backsiphonage protection is needed.
