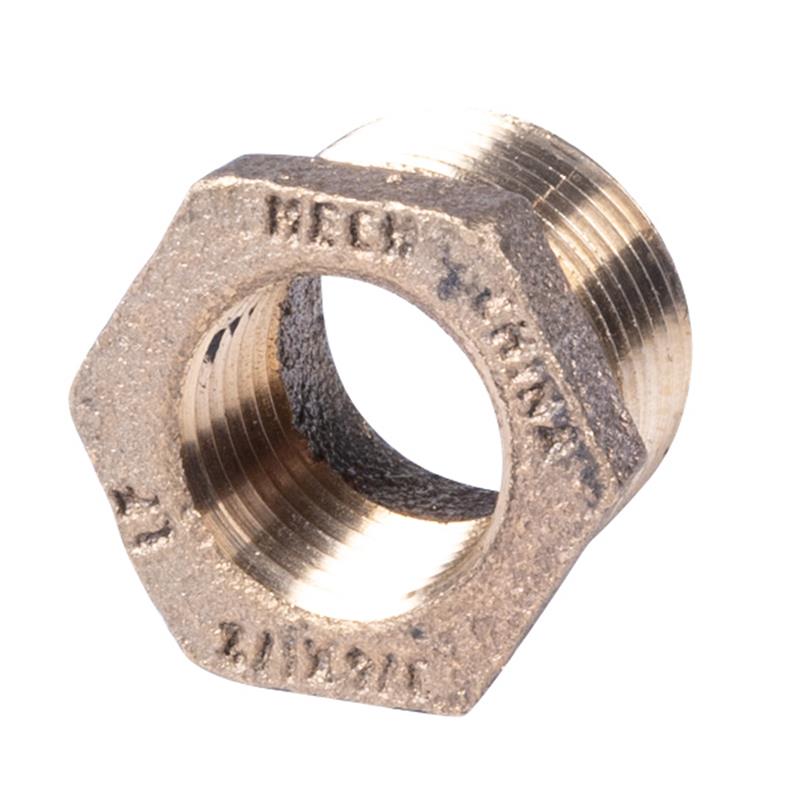

3/4" x 1/2" Lead Free Brass Bushing
Item Number: 15280
1
/
of
1
Regular price
$5.43
Limited Stock
(4)
Estimated transit time: 2 to 5 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Material: Lead Free Brass (ASTM B584, Alloy C89833)
- Weight: 0.14 lb
- Nominal Size: 3/4" Male NPT x 1/2" Female NPT
- Pressure Class: 125 lbs
- Thread Standard: ASME B1.20.1
- Dimensional Standards: ASME B16.15, B16.18
- Certified to NSF 61
- Certified to NSF 372 (Lead-Free)
Description
Description
This 3/4" x 1/2" lead-free brass bushing is engineered to safely reduce pipe connection sizes in plumbing systems. Constructed from durable ASTM B584, Alloy C89833 lead-free brass, it ensures reliable performance, especially in potable water applications. The fitting features ASME B1.20.1 NPT threads for a secure fit and is rated for Class 125 lbs service. It meets NSF 61 and NSF 372 certifications, making it suitable for drinking water systems where lead-free compliance is essential. This reducer is ideal for various residential and commercial plumbing needs. Item number 15280.

Collapsible content
Additional Details
This 3/4 x 1/2 lead-free brass bushing is designed to reduce a 3/4 inch NPT female connection to a 1/2 inch NPT female connection, providing a versatile solution for plumbing installations.
Construction & Design
- Manufactured from lead-free brass (ASTM B584, Alloy C89833) for safe use in potable water applications.
- Features ASME B1.20.1 NPT threads for secure and leak-tight connections.
- Rated for Class 125 lbs service.
Certifications
- Approved by NSF 61, ensuring suitability for use in drinking water systems.
- Certified to NSF 372 for lead-free compliance.
Specifications
- Body Material: Lead Free Brass (ASTM B584, Alloy C89833)
- Nominal Size: 3/4" Male NPT x 1/2" Female NPT
- Pressure Class: 125 lbs
- Thread Standard: ASME B1.20.1
- Dimensional Standards: ASME B16.15, ASME B16.18
Certificates & Approvals
- NSF 61
- NSF 372
FAQs
What is the primary use of this bushing?
This bushing is primarily used to connect a pipe or fitting with a 3/4 inch female NPT thread to a pipe or fitting with a 1/2 inch male NPT thread, effectively reducing the connection size.
What material is this bushing made from?
It is made from lead-free brass, specifically conforming to ASTM B584, Alloy C89833 standards, ensuring safety for potable water applications.
What are the specific connection sizes of this fitting?
This fitting provides a 3/4 inch male NPT connection on one end and a 1/2 inch female NPT connection on the other end.
Is this bushing suitable for drinking water systems?
Yes, it is certified to NSF 61 and NSF 372 standards, making it safe and compliant for use in potable water applications.
What is the pressure rating for this lead-free brass bushing?
This bushing is rated for Class 125 lbs, indicating its suitability for applications requiring this pressure class.
