3/4" x 2 1/2" LF Brass Water Meter Coupling

Item Number: MN433T04LF
Skip to product information
1 of 1
Regular price $12.21
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Lead Free Brass construction
  • Weight: 1.0 lb
  • Includes gasket for a tight seal
  • NSF 61/372 Certified
  • AB 1953 Certified
  • Meter Side Connection: 3/4 inch Male Iron Pipe (MIP)
  • Building Side Connection: 1 inch Female Iron Pipe (FIP)
  • Overall Length: 2-1/2 inches
  • Gasket Material: NBR SN-719F

Description

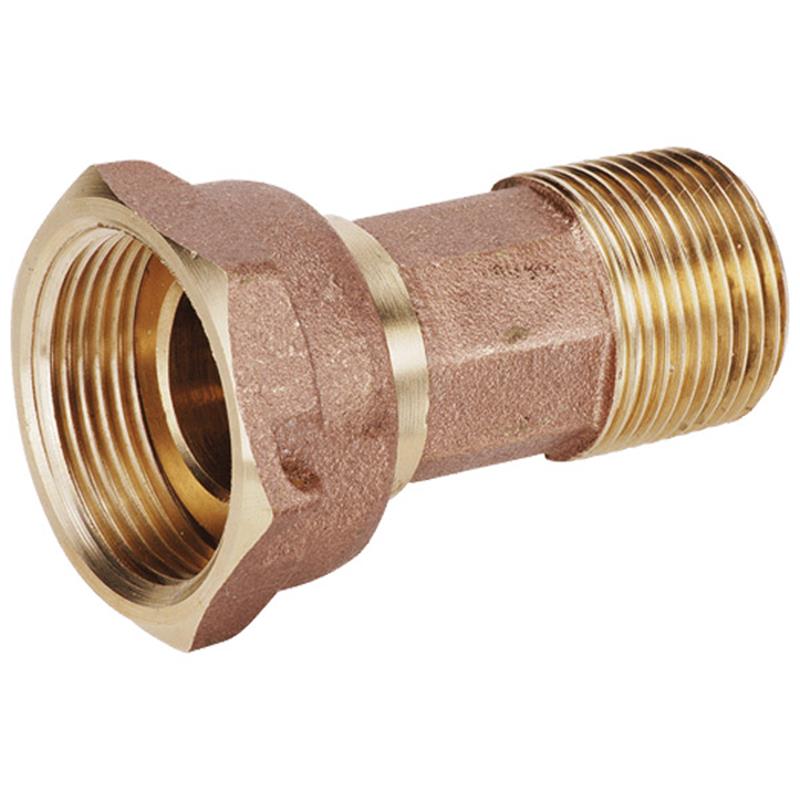

This Matco-Norca 3/4" MIP x 1" FIP Lead Free Brass Water Meter Coupling is designed for connecting water meters in residential and commercial plumbing systems. It features durable lead-free brass construction, ensuring safety for potable water applications. The coupling includes a gasket for a reliable, leak-free seal and measures 2-1/2 inches in overall length. It is NSF 61/372 and AB 1953 certified, meeting stringent standards for water quality and safety. Ideal for new installations or replacements, providing a secure and compliant connection.

Help Me Connect

Connecting Your Water Meter Coupling

  • The 3/4 inch Male Iron Pipe (MIP) threaded end is designed to connect to a 3/4 inch female threaded port on the water meter.
  • The 1 inch Female Iron Pipe (FIP) threaded end is designed to connect to a 1 inch male threaded pipe on your building's plumbing system.
  • Ensure that both connection points are clean and use appropriate thread sealant or tape for a watertight seal, in addition to the included gasket.
View full details

Collapsible content

Additional Details

This is a lead-free brass water meter coupling, specifically sized as 3/4 inch Male Iron Pipe (MIP) by 1 inch Female Iron Pipe (FIP), designed to connect water meters in potable water systems.

Features

  • Constructed from Lead Free Brass for safe potable water use
  • Includes a gasket for a secure, leak-tight seal
  • NSF 61/372 Certified and AB 1953 Certified for quality assurance

Material Components

  • Nut Material: Brass C85700
  • Nipple Material: Brass C89844MOD
  • Gasket Material: NBR SN-719F

Specifications

  • Product Type: Water Meter Coupling
  • Body Material: Lead Free Brass
  • Connection Size (Meter Side): 3/4 inch Male Iron Pipe (MIP)
  • Connection Size (Building Side): 1 inch Female Iron Pipe (FIP)
  • Overall Length (Dimension A): 2-1/2 inches
  • Nut Material: Brass C85700
  • Nipple Material: Brass C89844MOD
  • Gasket Material: NBR SN-719F

Certificates & Approvals

  • NSF 61/372 Certified
  • AB 1953 Certified

FAQs

What are the specific connection sizes of this water meter coupling?

This coupling features a 3/4 inch Male Iron Pipe (MIP) connection on the meter side and a 1 inch Female Iron Pipe (FIP) connection on the building side, with an overall length of 2-1/2 inches.

What material is used for the construction of this coupling?

The coupling is primarily constructed from lead-free brass, with the nut made of Brass C85700 and the nipple made of Brass C89844MOD. A NBR SN-719F gasket is included.

Is this water meter coupling certified for potable water use?

Yes, this coupling is NSF 61/372 Certified and AB 1953 Certified, making it suitable and safe for use in potable (drinking) water applications.

Does this coupling come with a gasket?

Yes, a gasket is included with the coupling to ensure a secure and leak-tight connection upon installation.

What is the overall length of the 433T04LF coupling?

The overall length of the 433T04LF coupling is 2-1/2 inches, as indicated by Dimension 'A' in the specification sheet.
