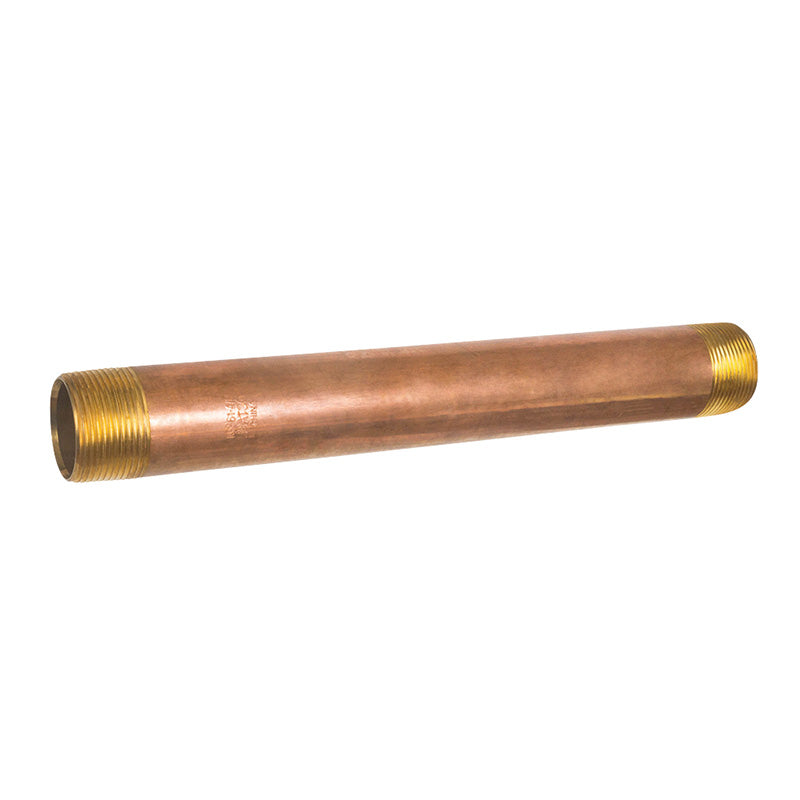

3/4" x 4" Lead Free Brass Nipple
Item Number: 9414
1
/
of
1
Regular price
$13.24
Special Order
When Will it Ship:
Contact for Lead Time
Estimated transit time: 2 to 5 Business Days
Brand - Matco-Norca
Couldn't load pickup availability
- Size: 3/4 inch x 4 inch
- Weight: 0.64 lb
- Material: Lead Free Brass
- Schedule: 40
- Thread Standard: ASME B1.20.1
- Conforms to ASTM B43 and ASTM B687
- NSF/ANSI61 certified
- NSF/ANSI372 certified (Lead Free)
- CRN certified
Description
Description
This 3/4 inch x 4 inch Lead Free Brass Nipple is a Schedule 40 pipe fitting designed for reliable connections in plumbing and industrial applications. Constructed from lead-free brass conforming to ASTM B43, it features threads that meet ASME B1.20.1 standards, ensuring robust and leak-free installations. This nipple is certified to NSF/ANSI61 and NSF/ANSI372, making it suitable for potable water systems, and also holds CRN certification for added quality assurance. Its 4-inch length provides versatility for various pipe extension or connection needs.
Help Me Connect
Help Me Connect
Connections
- This nipple features male NPT threads on both ends, designed to connect to corresponding female NPT threaded fittings or pipes.
- The threads conform to ASME B1.20.1 for standard compatibility with various piping systems.

Collapsible content
Additional Details
This is a 3/4 inch x 4 inch Lead Free Brass Nipple, engineered for connecting threaded pipes in a variety of applications.
It is constructed from Schedule 40 lead-free brass, ensuring durability and compliance with strict safety standards.
Construction & Compliance
- Made from Lead Free Brass conforming to ASTM B43
- Schedule 40 wall thickness for robust performance
- Dimensions and ends conform to ASTM B687
- Threads conform to ASME B1.20.1 for reliable connections
Certifications
- Meets NSF/ANSI61 standards for drinking water system components
- Meets NSF/ANSI372 for lead content requirements
- CRN certified
Specifications
- Nominal Pipe Size: 3/4 inch
- Overall Length (L): 4 inches
- Material: Lead Free Brass
- Schedule: 40
- Thread Standard: ASME B1.20.1
- Material Standard: ASTM B43
- Dimensional Standard: ASTM B687
- Dimension A (Outer Diameter of Thread): 0.822 inches
- Dimension B (Outer Diameter of Pipe Body): 1.050 inches
- Thread Engagement Length (L1): 0.793 inches
- Minimum Wall Thickness (Tmin): 0.108 inches
Certificates & Approvals
- NSF/ANSI61
- NSF/ANSI372
- CRN
FAQs
What material is this brass nipple made from?
This brass nipple is made from lead-free brass, specifically conforming to ASTM B43 standards.
What are the dimensions of this pipe nipple?
This is a 3/4 inch nominal pipe size nipple with an overall length of 4 inches. It features Schedule 40 wall thickness.
Is this nipple safe for use with drinking water?
Yes, this nipple is certified to NSF/ANSI61 for drinking water system components and NSF/ANSI372 for lead content, making it suitable for potable water applications.
What type of threads does this nipple have?
This nipple features threads that conform to ASME B1.20.1 standards, which are typically male NPT (National Pipe Taper) threads.
What does "Schedule 40" mean for this nipple?
"Schedule 40" refers to the wall thickness of the pipe nipple, indicating a standard, robust wall suitable for general purpose applications.
