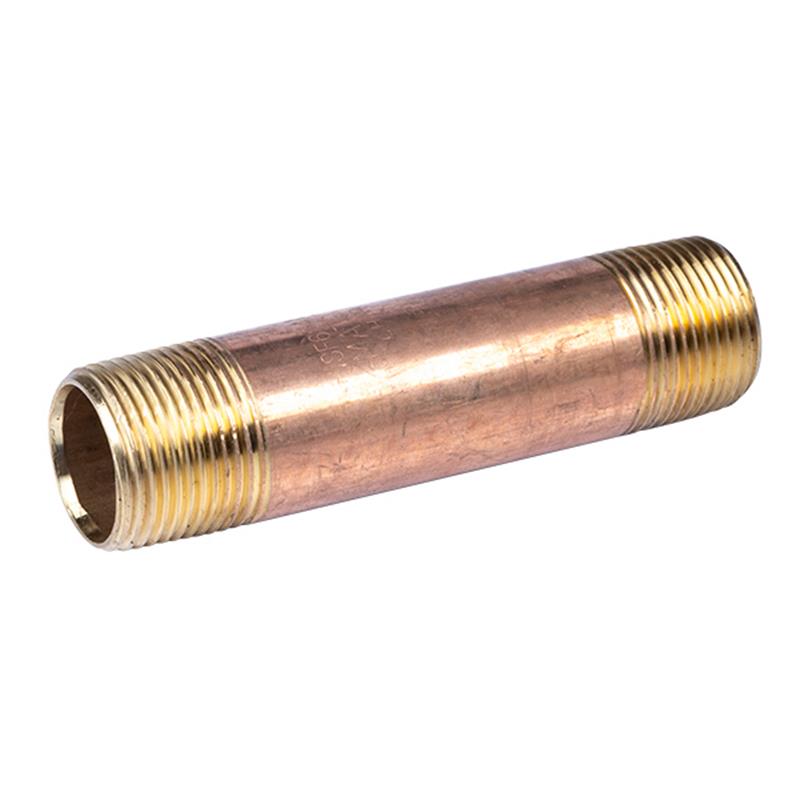

3/4" x 4" Lead Free Brass Nipple
Item Number: 8126
1
/
of
1
Regular price
$9.08
In Stock
(10)
Estimated transit time: 2 to 3 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Size: 3/4 inch x 4 inches
- Weight: 0.38 lb
- Material: Lead Free Brass
- Pipe Schedule: 40
- Certifications: NSF/ANSI61, NSF/ANSI372, CRN
- Threads: ASME B1.20.1
- Conforms to ASTM B43 and ASTM B687
Description
Description
The Matco-Norca 3/4" x 4" Lead Free Brass Nipple is a Schedule 40 pipe component crafted from lead-free brass, ensuring safety and compliance for potable water systems. Its dimensions and ends conform to ASTM B687, while threads meet ASME B1.20.1 standards for reliable installation. This nipple is certified by NSF/ANSI61, NSF/ANSI372, and CRN, making it suitable for a wide range of industrial and plumbing applications. Its durable construction from ASTM B43 brass offers long-lasting performance.
Help Me Connect
Help Me Connect
Thread Connections
- The threads on this brass nipple conform to the ASME B1.20.1 standard, ensuring compatibility with other fittings and pipes that adhere to this widely accepted national pipe thread (NPT) standard.
Dimensional Conformance
- The dimensions and ends of this nipple conform to ASTM B687, providing consistent sizing and reliable fit within systems designed to this specification.

Collapsible content
Additional Details
This 3/4" x 4" Lead Free Brass Nipple is a durable component designed for various plumbing and industrial applications, providing a reliable connection point in pipe systems.
Features
- Constructed from Lead Free Brass conforming to ASTM B43 for safe and reliable use.
- Manufactured to Schedule 40 pipe specifications.
- Dimensions and ends conform to ASTM B687 standards.
- Pipe threads conform to ASME B1.20.1 for consistent and secure connections.
- Meets rigorous standards including NSF/ANSI61, NSF/ANSI372, and CRN.
Specifications
- Nipple Size: 3/4 inch x 4 inches
- Body Material: Lead Free Brass
- Pipe Schedule: 40
- Overall Length (L): 4 inches
- Thread Length (L1): 0.793 inches
- Outside Diameter (A): 0.822 inches
- Inside Diameter (B): 1.050 inches
- Minimum Wall Thickness (Tmin.): 0.108 inches
Certificates & Approvals
- ASTM B43
- ASTM B687
- ASME B1.20.1
- NSF/ANSI61
- NSF/ANSI372
- CRN
FAQs
What is the primary material of this brass nipple?
This brass nipple is made from Lead Free Brass, specifically conforming to ASTM B43 standards.
What are the dimensions of this pipe nipple?
This nipple is 3/4 inch in diameter and 4 inches in length. Its outside diameter is 0.822 inches and its inside diameter is 1.050 inches.
Does this product meet any specific certifications for safety or performance?
Yes, it meets NSF/ANSI61, NSF/ANSI372, and CRN standards, ensuring it is suitable for various regulated applications, including potable water systems.
What thread standard does this brass nipple use?
The pipe threads on this nipple conform to ASME B1.20.1, ensuring compatibility with standard threaded pipe fittings.
What is the Schedule rating for this nipple?
This brass nipple is manufactured to Schedule 40 pipe specifications, indicating its wall thickness and suitability for general service applications.
