3 5000SS-LG-GPM-FS

Item Number: F0690541
1 1
$7,887.75
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 3 inch
  • Weight: 80.0 lb
  • Body Material: 300 Series Stainless Steel
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F – 110°F
  • Flood sensor with SentryPlus Alert® technology
  • Includes Gallons per Minute (GPM) meter
  • Designed for non-potable service and health hazard applications
  • Approvals: ASSE 1047, CSA B64.5, UL Classified, FM Approved

Description

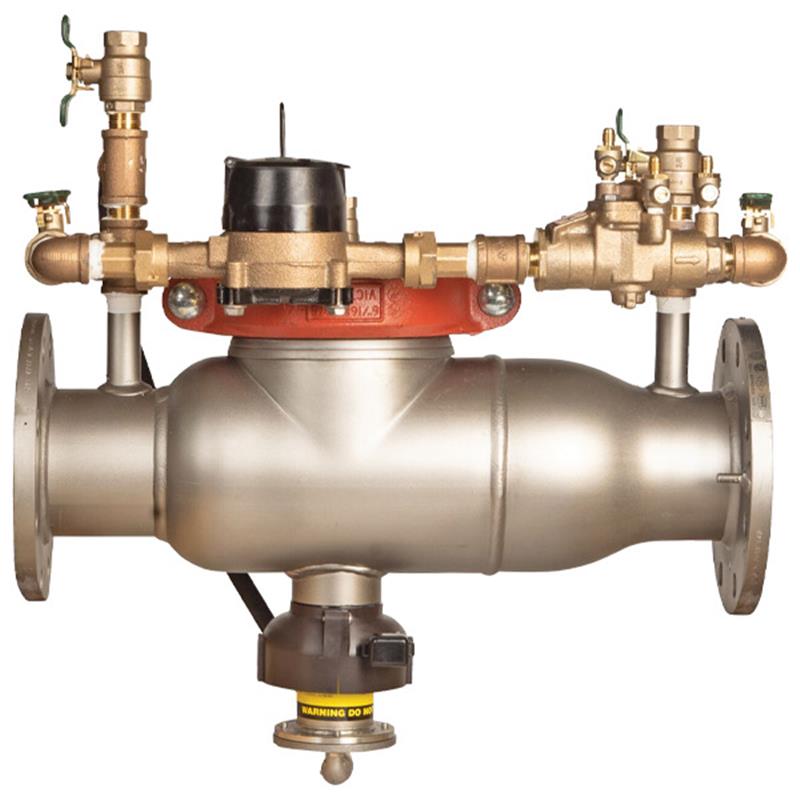

The AMES 3 inch 5000SS Reduced Pressure Detector Backflow Preventer Assembly safeguards non-potable water supplies from hazardous cross-connections. Featuring a durable 300 series stainless steel body, this assembly is built for long-term corrosion resistance. It includes an integrated flood sensor with SentryPlus Alert® technology for detecting excessive relief valve discharge, signaling potential issues when connected with an add-on kit. A built-in gallons per minute meter monitors for leaks and unauthorized water use. Rated for 175 PSI maximum working pressure, it's ideal for fireline, irrigation, and industrial health hazard applications where shutoff valves are supplied separately. Item number F0690541.

Help Me Connect

Installation & Integration

  • This 3 inch Reduced Pressure Detector Assembly requires an add-on sensor connection kit to activate its integrated flood sensor for active monitoring.
  • The flood sensor supports communication with various systems, including BMS (Building Management Systems) and cellular networks.
  • For advanced integration, pair with the Sensor Control Monitor to connect with BAS (Building Automation Systems) via RS-485 Modbus or the Nexa® platform through Wi-Fi connectivity.
  • The connections are grooved coupling connections, making installation straightforward with compatible grooved piping.
View full details

Additional Details

This 3 inch Series 5000SS Reduced Pressure Detector Assembly is designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply due to backsiphonage and/or backpressure. It is ideal for health hazard applications and cross-connections in continuous pressure piping systems.

This backflow preventer features a flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve, providing early notification for potential flooding events. It comes without shutoff valves ("Less Gates") and includes a gallons per minute meter for detecting underground leaks and unauthorized water use.

Construction & Design

  • Features a lightweight 300 Series stainless steel body for long-term corrosion resistance and maximum strength.
  • Short end-to-end dimensions make retrofit installations easy.
  • Compact modular design allows for smaller enclosures.
  • Bottom-mounted relief valve reduces clearance requirements.
  • Thermoplastic cam-check valves provide maximum flow at low pressure drop and require no special tools for servicing.
  • Stainless steel relief valve features a balanced rolling diaphragm to eliminate sliding seals and lower maintenance costs.

Flood Detection & Alerting

  • Includes an integrated flood sensor on the relief valve for discharge detection.
  • Requires an add-on sensor connection kit to activate the flood alert feature.
  • Supports integration with BMS, cellular network communication, or the Sensor Control Monitor for alerts via RS-485 Modbus or Nexa® platform Wi-Fi.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.

Specifications

General

  • Product Type: Reduced Pressure Detector Assembly
  • Series: 5000SS
  • Nominal Size: 3 inch
  • Configuration: Less Gates (LG), Gallons per Minute Meter (GPM), Flood Sensor (FS)

Materials

  • Main Valve Body Material: 300 Series Stainless Steel
  • All Internal Metal Parts: 300 Series Stainless Steel
  • Check Assembly Material: Noryl®
  • Relief Valve Material: Stainless Steel
  • Test Cock Material: Bronze

Performance

  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 33°F – 110°F (0.5°C – 43°C)

Certificates & Approvals

  • AWWA C511-92
  • ASSE 1047
  • CSA B64.5
  • UL Classified
  • FM Approved

FAQs

What is the primary function of the AMES 5000SS Reduced Pressure Detector Assembly?

Its primary function is to prevent the reverse flow of hazardous materials and non-potable water into potable drinking water supplies due to backsiphonage or backpressure, particularly in health hazard cross-connection applications.

Does this 5000SS assembly include shutoff valves?

No, this specific 5000SS-LG model comes "Less Gates" (LG), meaning it does not include integral shutoff valves. Shutoff valves would need to be supplied and installed separately.

How does the flood sensor feature work, and what is SentryPlus Alert® technology?

The integrated flood sensor detects excessive water discharges from the relief valve. When paired with an add-on sensor connection kit, SentryPlus Alert® technology activates the sensor to relay alerts to facility personnel or connected monitoring systems, helping to prevent flooding and costly damage.

What materials are used in the construction of the 3 inch 5000SS backflow preventer?

The main valve body and all internal metal parts are constructed from durable 300 Series stainless steel for excellent corrosion resistance. The check assembly uses Noryl® material.

What is the purpose of the gallons per minute (GPM) meter included with this assembly?

The GPM meter detects underground leaks and unauthorized water use within the system. It helps monitor water flow and identify discrepancies that could indicate a leak or misuse.
