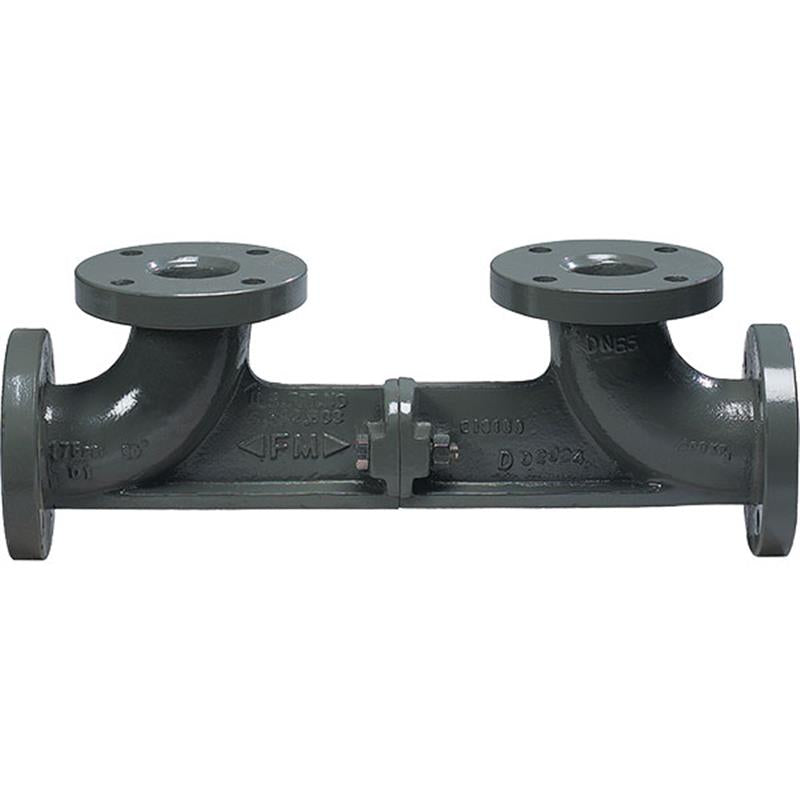

3 611-Flange x Flange

Item Number: 905205
1 1
$1,089.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Valve Setter Size: 3 inch
  • Weight: 89.0 lb
  • Body Material: Ductile iron
  • Coating: Fusion epoxy coated for corrosion resistance
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 32°F to 140°F
  • Flange Standard: ANSI AWWA C153 A21.53-88
  • Fasteners: Stainless steel
  • Lead Free construction (less than 0.25% lead)

Description

The 3 inch FEBCO 611 Flange x Flange Valve Setter is designed to facilitate the installation of MasterSeries N-pattern backflow preventer valves, including LF870V, LF876VST, and LF880V models. Constructed from fusion epoxy coated ductile iron with stainless steel fasteners, it offers excellent corrosion resistance and durability. This valve setter eliminates the need for thrust blocks by transferring downstream thrust. It supports a maximum working pressure of 175 PSI and operates within a temperature range of 32°F to 140°F. Featuring ANSI AWWA C153 A21.53-88 flanged connections, it also complies with Lead Free installation requirements.

Help Me Connect

Compatibility

  • This valve setter is specifically designed to augment the installation of MasterSeries N-pattern backflow preventer valves. This includes models such as the LF870V, LF876VST, and LF880V series.

Connections

  • The valve setter features flanged connections that conform to ANSI AWWA C153 A21.53-88 standards. Ensure your connecting piping or backflow preventer also uses compatible ANSI flanged connections.
  • Note: Mechanical joint accessories, flange bolts, and gaskets are not included with this valve setter and must be acquired separately for installation.
View full details

Additional Details

This 3 inch flange by flange valve setter is constructed of fusion epoxy coated ductile iron. It is designed to augment the installation of the MasterSeries® N-pattern backflow preventer valve, such as the LF870V, LF876VST, or LF880V series.

Construction & Features

  • Features a fusion epoxy coated ductile iron body for corrosion resistance.
  • Integral ductile iron supports between elbows effectively transfer thrust downstream, eliminating the need for thrust block requirements between elbows.
  • Bolts and nuts are made of stainless steel for durability.
  • Designed with Lead Free* construction to comply with Lead Free installation requirements.

Connections

  • Equipped with flanged connections that meet ANSI AWWA C153 A21.53-88 standards.

*The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Specifications

  • Valve Setter Size: 3 inch
  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Fasteners: Stainless steel
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Flange Standard: ANSI AWWA C153 A21.53-88
  • Lead Content: Less than 0.25% by weight (Lead Free)
  • Weight: 69 lbs

Dimensions (Nominal)

  • Length (A): 21.5 inches (546 mm)
  • Width (B): 12.5 inches (318 mm)
  • Height (C): 4.5 inches (114 mm)

FAQs

What is the primary purpose of the FEBCO 611 Valve Setter?

The FEBCO 611 Valve Setter is designed to augment the installation of MasterSeries N-pattern backflow preventer valves, transferring thrust downstream and eliminating the need for separate thrust blocks.

What is the maximum operating pressure and temperature range for this valve setter?

This valve setter has a maximum working pressure of 175 PSI (12.1 bar) and is designed to operate within a temperature range of 32°F to 140°F (0°C to 60°C).

What materials are used in the construction of this valve setter?

The body is constructed from ductile iron A536 GR 65-45-12, coated internally and externally with fusion epoxy (AWWA C550), and features stainless steel bolts and nuts.

Is the FEBCO 611 Valve Setter Lead Free?

Yes, this product features Lead Free* construction, meaning the wetted surface contacted by consumable water contains less than 0.25% of lead by weight, complying with Lead Free installation requirements.

What types of backflow preventers is this valve setter compatible with?

This valve setter is specifically designed for use with MasterSeries N-pattern backflow preventer valves, such as the LF870V, LF876VST, and LF880V series.
