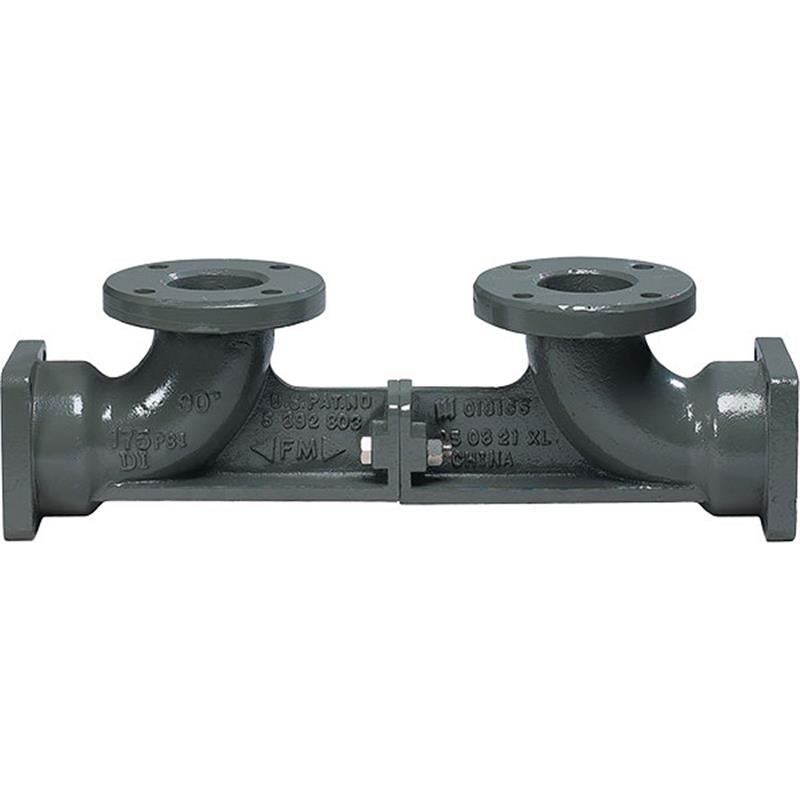

3 611-Mechanical Joint x Flange

Item Number: 905199
1 1
$1,088.94
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • 3 inch nominal size
  • Weight: 105.0 lb
  • Body Material: Ductile Iron
  • Fusion epoxy coated for corrosion resistance
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 32°F to 140°F
  • Lead Free construction (<0.25% lead by weight)
  • Eliminates thrust block requirements
  • Includes stainless steel fasteners

Description

The FEBCO Series 611 3 inch mechanical joint by flange valve setter is made from fusion epoxy coated ductile iron, designed for MasterSeries N-pattern backflow preventer valve installations. It eliminates the need for thrust blocks by incorporating integral ductile iron supports that transfer downstream thrust. Featuring a maximum working pressure of 175 psi and a temperature range of 32°F to 140°F, this valve setter includes ANSI 150 pound flanged connections and stainless steel fasteners. Its Lead Free construction ensures compliance for potable water applications.

Help Me Connect

Compatibility and Connections

  • This valve setter is designed to augment the installation of MasterSeries N-pattern backflow preventer valves.
  • It features one mechanical joint connection and one flanged connection.
  • Mechanical joint accessories, flange bolts, and gaskets are not included (except for the center joint), and must be sourced separately for proper installation.
  • Local installation requirements and conditions should be considered when selecting mechanical joint restraint devices.
View full details

Additional Details

The FEBCO Series 611 3 inch mechanical joint by flange valve setter is constructed of fusion epoxy coated ductile iron. It is designed to augment the installation of MasterSeries N-pattern backflow preventer valves.

Integral ductile iron supports between elbows effectively transfer thrust downstream, eliminating the need for thrust block requirements at the point of installation. This valve setter features Lead Free construction, complying with relevant installation requirements.

Features

  • Corrosion resistant fusion epoxy coated for enhanced longevity.
  • Eliminates the need for thrust blocks or other restraints at the point of installation.
  • Equipped with ANSI 150 pound flanged connections.
  • Flanges conform to ANSI AWWA C153 A21.53-88 standards.
  • Includes stainless steel fasteners.

Specifications

  • Nominal Size: 3 inch (80mm)
  • Body Material: Ductile Iron A536 GR 65-45-12
  • Body Coating: Fusion Epoxy Coated internal and external (AWWA C550)
  • Fasteners: Stainless Steel
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Lead Content: Wetted surface contains less than 0.25% lead by weight

Certificates & Approvals

  • Flanges: ANSI AWWA C153 A21.53-88

FAQs

What is the primary purpose of the FEBCO 611 valve setter?

The FEBCO 611 valve setter is designed to augment the installation of MasterSeries N-pattern backflow preventer valves, providing integral support and eliminating the need for thrust blocks.

What materials are used in the construction of this valve setter?

The body is constructed from ductile iron (A536 GR 65-45-12) with fusion epoxy coating internally and externally. It also features stainless steel fasteners.

What is the maximum operating pressure and temperature range for this device?

The valve setter has a maximum working pressure of 175 psi (12.1 bar) and can operate within a temperature range of 32°F to 140°F (0°C to 60°C).

Is this valve setter suitable for potable water applications?

Yes, it features Lead Free construction, meaning the wetted surface contacted by consumable water contains less than 0.25% of lead by weight, complying with Lead Free installation requirements.

What types of connections does this valve setter have?

This 3-inch valve setter features one mechanical joint connection and one ANSI 150 pound flanged connection, conforming to ANSI AWWA C153 A21.53-88 standards.
