3 7001-1-Clean Out-Flange x Flange

Item Number: 0690894
1 1
$8,125.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Pipe Size: 3 inch
  • Weight: 123.0 lb
  • Max Working Pressure: 175 psi
  • Max Water Temperature: 140°F
  • Body Material: Epoxy coated fabricated steel
  • Screen Material: 304 stainless steel
  • Connections: Flange x Flange
  • Cleanout Ports: 1
  • UL Listed and FM Approved

Description

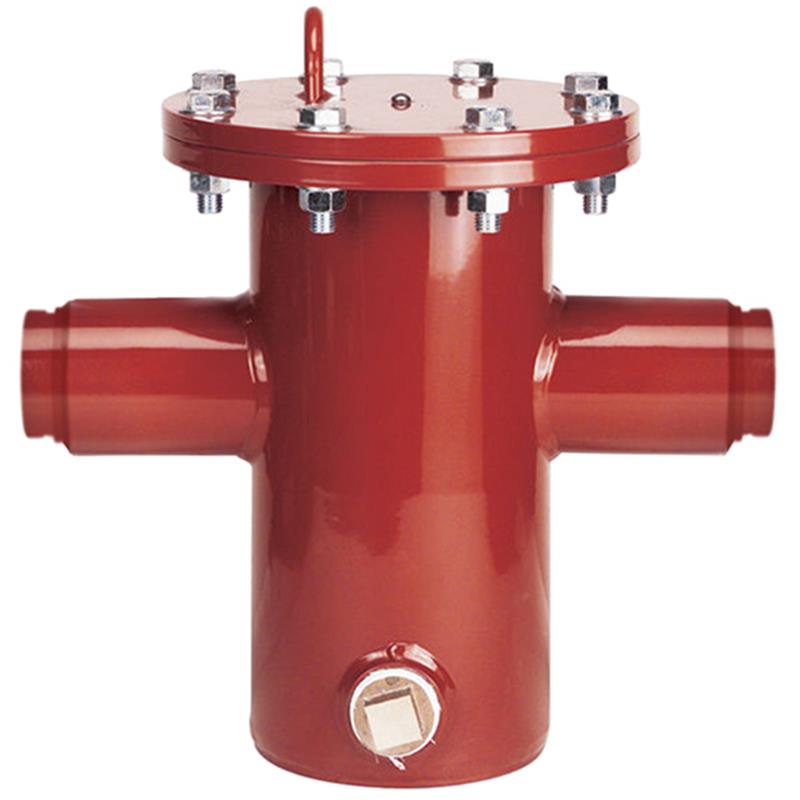

The 3 inch Ames Series 7001 fire service basket strainer is designed to protect non-potable water spray systems from clogging by trapping foreign particles. This durable strainer features an epoxy-coated steel body, flanged connections, and a single cleanout port for easy maintenance. It utilizes a 304 stainless steel screen with .25 diameter perforations to trap material 1/4 inch or larger. Rated for a maximum working pressure of 175 psi and temperatures up to 140°F, it is UL Listed and FM Approved for reliable performance in fire protection applications. Item number 0690894.

Help Me Connect

Connections

  • This 3 inch fire service strainer is designed with flange x flange connections, suitable for integration into existing flanged piping systems.
  • The flanges adhere to AWWA Class "D" standards.

Installation & Use

  • Strainers for fire systems are typically installed upstream of devices like meters, backflow preventers (detector check valves), and flow alarms to protect them from damage by large particles.
  • This strainer is designed to trap foreign material 1/4 inch diameter or larger.
  • The design allows for the removal of the filter for replacement and repair without needing to remove the entire body from the line, simplifying maintenance.
View full details

Additional Details

This 3 inch Ames Fire & Waterworks Series 7001 fire service strainer is used in non-potable water spray systems to protect against clogging caused by particles that could foul sprinkler heads.

Features

  • Epoxy coated fabricated steel body with flange x flange connections and one cleanout port
  • Designed with a large solids trap to minimize screen blockage
  • Includes a durable 304 stainless steel strainer element
  • Designed to permit removal of the filter for replacement and repair without removing the body from the line
  • A flush outlet is provided for each strainer

Before installing this product, consult your local water authority, building, and plumbing codes, as it is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States.

Specifications

  • Series: Ames Fire & Waterworks 7001
  • Pipe Size: 3 inch (80mm)
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Water Temperature: Up to 140°F (60°C)

Materials

  • Body & Cover: Fusion-bonded epoxy coated steel
  • Screen: 304 stainless steel, .25 diameter perforation
  • Clean-Out Plug: Brass or Bronze
  • Flanges: AWWA Class "D"

Certificates & Approvals

  • CULUS Listed 321
  • FM Approved Class 5551

FAQs

What is the primary function of the 3 inch Ames Series 7001 strainer?

The primary function of this strainer is to protect non-potable water spray systems from clogging. It traps foreign materials and particles that could otherwise foul the small discharge openings of sprinkler heads.

What are the maximum operating pressure and temperature ratings for this strainer?

This strainer is rated for a maximum working pressure of 175 psi (12.1 bar). The maximum water temperature it can withstand is 140°F (60°C).

What materials are used in the construction of this fire service strainer?

The body and cover are made from fusion-bonded epoxy coated steel. The strainer element is 304 stainless steel with .25 inch diameter perforations, and the clean-out plug is brass or bronze.

How does this strainer connect to a piping system?

This specific Series 7001 strainer features flange x flange connections. The flanges are designed to AWWA Class "D" specifications.

Is this strainer suitable for fire protection applications?

Yes, the Ames Series 7001 strainer is specifically designed for fire service applications. It is cULus Listed 321 and FM Approved Class 5551 for use in such systems.
