3 7001-1-Clean Out-Groove x Groove

Item Number: 0690977
1 1
$8,125.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Size: 3 inch
  • Weight: 104.0 lb
  • Maximum Operating Pressure: 175 psi
  • Epoxy coated steel body
  • Grooved connections
  • One cleanout port
  • 304 stainless steel screen
  • UL Listed 321
  • FM Approved Class 5551

Description

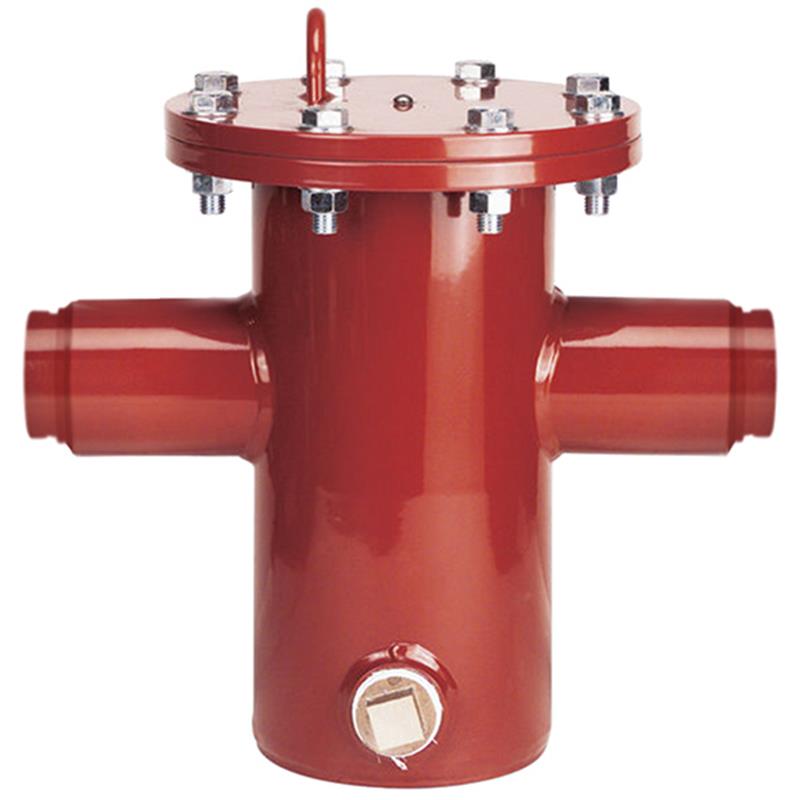

The Ames Fire & Waterworks Series 7001 is a 3-inch fire service basket strainer for non-potable water spray systems. Its primary function is to protect system components by trapping foreign material 1/4 inch or larger, preventing clogging of sprinkler heads and other devices. Featuring an epoxy-coated steel body, grooved connections, and a single cleanout port, it provides efficient debris filtration. This durable strainer includes a 304 stainless steel screen and is UL listed and FM approved, with a maximum working pressure of 175 psi.

Help Me Connect

Connections

This strainer features groove x groove connections, designed to integrate seamlessly into fire protection systems that utilize grooved piping. It is typically installed upstream of sensitive devices such as meters, backflow preventers (or detector check valves), and flow alarms to shield them from large particle damage. The grooved ends ensure a secure and efficient connection within your non-potable water spray system.

View full details

Additional Details

This 3 inch Ames Fire & Waterworks Series 7001 fire service strainer is designed for non-potable applications within water spray systems. Its primary function is to protect the system against clogging by trapping particles that could foul sprinkler heads and other devices.

The strainer is typically installed upstream of critical system components like meters, backflow preventers, and flow alarms to prevent damage caused by large particles.

Features

  • Epoxy coated fabricated steel body and cover for durability.
  • Designed to trap foreign material 1/4 inch diameter or larger.
  • Equipped with a single cleanout port for easy maintenance.
  • 304 stainless steel strainer element minimizes screen blockage.
  • Connections are groove x groove for secure installation.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Consult your local water authority, building and plumbing codes before installation.

Specifications

  • Nominal Size: 3 inch (80mm)
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Maximum Water Temperature: 140°F (60°C)
  • Body & Cover Material: Fusion-bonded epoxy coated steel
  • Screen Material: 304 stainless steel
  • Screen Perforation: .25 inch diameter
  • Clean-Out Plug Material: Brass or Bronze
  • Groove Standard: AWWA C606

Certificates & Approvals

  • CULUS Listed 321
  • FM Approved Class 5551

FAQs

What is the primary use of the Ames Series 7001 fire service strainer?

The primary use of this strainer is to protect water spray systems in non-potable applications from clogging. It traps foreign material 1/4 inch diameter or larger, preventing debris from damaging sprinkler heads and other sensitive system components.

What materials are used in the construction of this strainer?

The body and cover are constructed from fusion-bonded epoxy coated steel, ensuring durability. The strainer element (screen) is made of 304 stainless steel with .25 inch diameter perforations, and the clean-out plug is brass or bronze.

What type of connections does this 3-inch strainer have?

This 3-inch strainer features groove x groove connections. These connections are designed for secure and efficient integration into grooved piping systems commonly used in fire protection applications.

What is the maximum operating pressure and temperature for this strainer?

The Ames Series 7001 strainer has a maximum working pressure of 175 psi (12.1 bar). It is also capable of operating in water temperatures up to 140°F (60°C).

Is this fire service strainer suitable for potable water applications?

No, this product is explicitly designed for non-potable applications only. It is illegal to use this strainer in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States.
