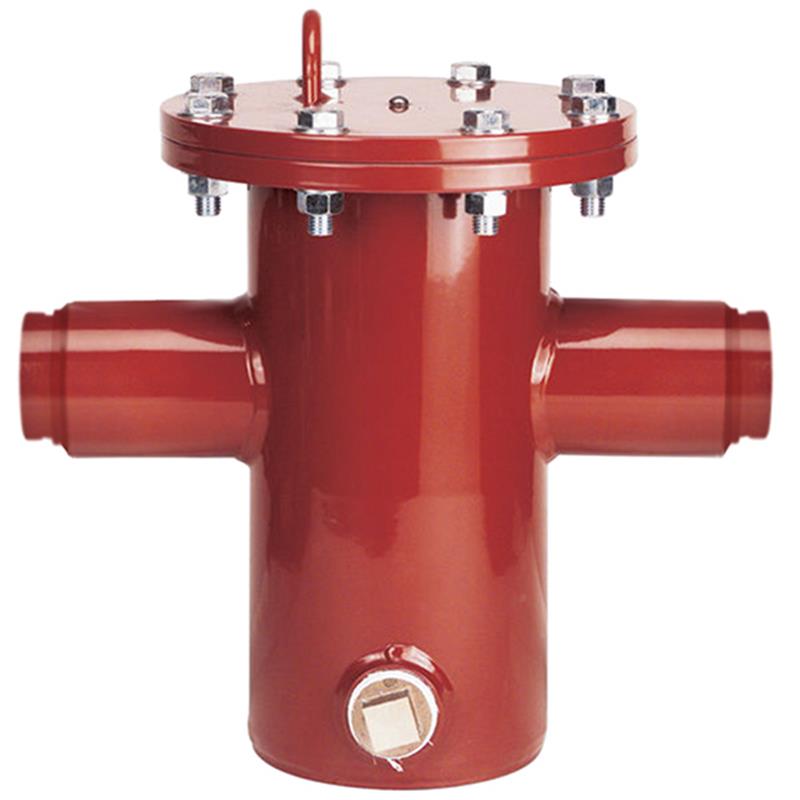

3 7002-2-Clean Outs-Flange x Flange

Item Number: 0691006
1 1
$8,125.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 3 inch
  • Weight: 200.0 lb
  • Body Material: Epoxy coated steel
  • Connection Type: Flange x Flange
  • Cleanout Ports: Two
  • Strainer Element: 304 stainless steel
  • Maximum Working Pressure: 175 psi
  • CULUS Listed
  • FM Approved

Description

The 3 inch Ames Fire & Waterworks Series 7002 fire service strainer is designed to protect non-potable water spray systems from clogging. This durable unit features an epoxy-coated steel body, two cleanout ports for maintenance, and robust flanged connections. It is engineered to trap foreign material 1/4" diameter or larger, safeguarding critical fire system devices like meters and backflow preventers. With a maximum working pressure of 175 psi and a 304 stainless steel strainer element, it delivers reliable performance. UL Listed and FM Approved, this strainer meets stringent safety and performance standards for fire protection.

Help Me Connect

Connections

This strainer has flanged connections designed for direct installation into a pipeline. The flanges conform to AWWA Class "D" standards, ensuring compatibility with standard flanged piping systems. It is installed upstream of fire system devices to protect them from large particles.

View full details

Additional Details

This 3 inch Ames Fire and Waterworks Series 7002 fire service strainer is designed to protect water spray systems from clogging due to foreign particles. It features an epoxy-coated steel body with flanged connections and two cleanout ports, ideal for non-potable fire protection applications.

Features

  • Epoxy coated fabricated steel body with flanged connections
  • Includes two cleanout ports for easy maintenance
  • Large solids trap minimizes screen blockage
  • Equipped with a 304 stainless steel strainer element

Design and Function

  • Allows removal of the filter for replacement or repair without removing the body from the line
  • A flush outlet is provided with each strainer
  • Filter is designed to withstand 125 psi (8.6 bar) when plugged
  • Open screen area is at least 6 times greater than the nominal pipe size open area
  • Friction loss will not exceed 3 psi (21 kPa) at rated flow with a clean filter and clean water

Materials

  • Body & Cover: Fusion-bonded epoxy coated steel
  • Screen: 304 stainless steel, .25 diameter perforation
  • Clean-Out Plug: Brass or Bronze
  • Flanges: AWWA Class "D"


WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States.

Specifications

  • Product Series: Ames Fire & Waterworks 7002
  • Size: 3 inch (80mm)
  • Connection Type: Flange x Flange
  • Number of Cleanouts: Two
  • Body & Cover Material: Fusion-bonded epoxy coated steel
  • Screen Material: 304 stainless steel, .25 diameter perforation
  • Clean-Out Plug Material: Brass or Bronze
  • Flange Standard: AWWA Class "D"
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Maximum Water Temperature: 140°F (60°C)

Certificates & Approvals

  • CULUS Listed 321
  • FM Approved Class 5551

FAQs

What is the primary use of this Ames Fire Service Strainer?

This strainer is primarily used in non-potable water spray systems to protect against clogging caused by particles, safeguarding sprinkler heads and other fire system devices like meters and backflow preventers.

What are the key materials used in its construction?

The body and cover are made from fusion-bonded epoxy coated steel, while the strainer element is 304 stainless steel with .25 diameter perforations. The clean-out plugs are brass or bronze.

What is the maximum operating pressure and temperature for this strainer?

The maximum working pressure for this strainer is 175 psi (12.1 bar), and it can handle water temperatures up to 140°F (60°C).

How many cleanout ports does this specific model have?

This specific Series 7002 strainer is equipped with two cleanout ports, allowing for easy access to remove trapped debris and minimize screen blockage.

Is this strainer suitable for potable water applications?

No, it is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. It is designed exclusively for non-potable fire protection systems.
