3 7002-2-Clean Outs-Groove x Groove

Item Number: 0691051
1 1
$8,125.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 3 inch (80mm)
  • Weight: 200.0 lb
  • Connections: Groove x Groove
  • Body Material: Epoxy Coated Steel
  • Screen Material: 304 Stainless Steel
  • Maximum Working Pressure: 175 psi
  • Water Temperature: Up to 140°F
  • Cleanouts: Two
  • Approvals: UL Listed, FM Approved

Description

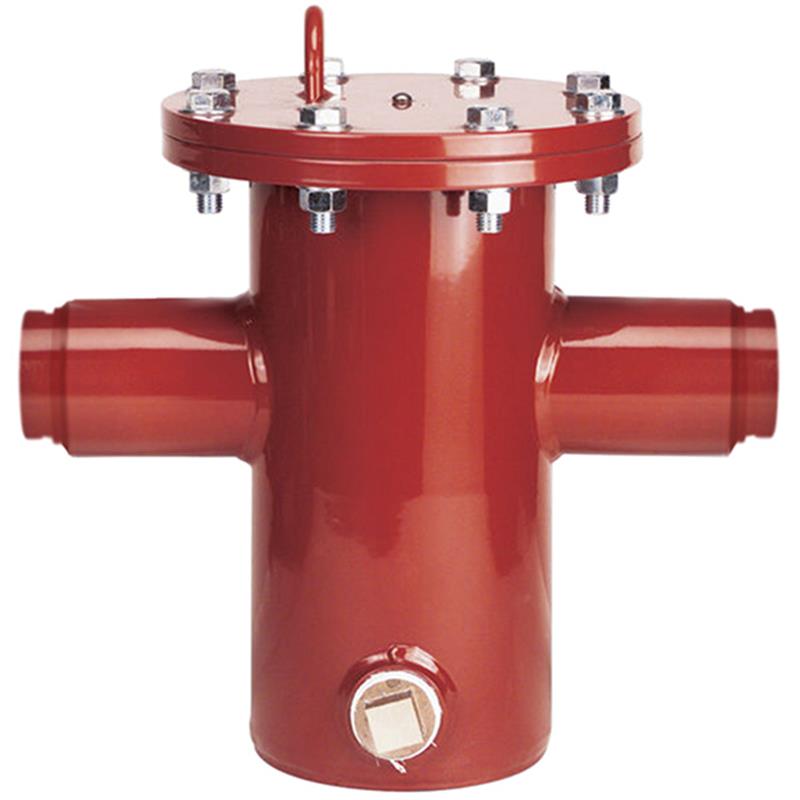

The 3 inch Ames Fire & Waterworks Series 7002 fire service strainer protects water spray systems by trapping foreign material 1/4 inch diameter or larger, preventing clogs and damage. It features an epoxy-coated steel body with groove x groove connections (AWWA C606 standard) and includes two cleanout ports for easy maintenance. The internal screen is made of 304 stainless steel with .25 inch perforations. This strainer is UL Listed and FM Approved for non-potable fire protection applications, with a maximum working pressure of 175 psi and supports water temperatures up to 140°F.

Help Me Connect

The 3 inch Ames Fire & Waterworks Series 7002 strainer features groove x groove connections, designed to connect to other piping system components with grooved ends using appropriate couplings. The grooves conform to AWWA C606 standards.

View full details

Additional Details

This 3 inch Ames Fire & Waterworks Series 7002 fire service strainer is designed to protect water spray systems from clogging by trapping foreign materials and large particles that could foul sprinkler heads or damage other system devices.

Features

  • Epoxy coated fabricated steel body
  • Groove x groove connections
  • Two cleanout ports
  • Large solids trap to minimize screen blockage
  • 304 stainless steel strainer element with .25 inch diameter perforation
  • Designed for filter removal without removing the body from the line
  • Flush outlet provided with each strainer

Materials

  • Body & Cover: Fusion-bonded epoxy coated steel
  • Screen: 304 stainless steel
  • Clean-Out Plug: Brass or Bronze
  • Grooves: AWWA C606

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

Specifications

  • Product Series: 7002
  • Size: 3 inch (80mm)
  • Body & Cover Material: Fusion-bonded epoxy coated steel
  • Screen Material: 304 stainless steel
  • Screen Perforation: .25 inch diameter
  • Clean-Out Plug Material: Brass or Bronze
  • Connections: Groove x Groove
  • Groove Standard: AWWA C606
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Water Temperature: Up to 140°F (60°C)
  • Nominal Rated Flow (3"): 325 GPM (1235 LPM)
  • Shipping Weight: 70 lbs (32 kg)
  • Cleanouts: Two
  • Filter Removal: Without removing body from line
  • Friction Loss (clean filter, clean water): Not to exceed 3 psi (21 kPa) at rated flow
  • Friction Loss (plugged with foreign materials): Not to exceed 10 psi (69 kPa)
  • Open Screen Area: At least 6 times greater than nominal pipe size open area

Certificates & Approvals

  • CULUS Listed 321
  • FM Approved Class 5551

FAQs

What is the primary function of the Ames Series 7002 fire service strainer?

This strainer is used in non-potable water spray systems to protect against clogging from foreign materials 1/4 inch or larger, safeguarding sprinkler heads and other system components.

What type of connections does this strainer have?

The 3 inch Ames Series 7002 strainer features groove x groove connections, designed to connect to other piping system components with compatible grooved ends according to AWWA C606 standards.

What materials are used in the construction of this strainer?

The body and cover are made from fusion-bonded epoxy coated steel. The strainer element is 304 stainless steel with .25 inch diameter perforations, and the clean-out plugs are brass or bronze.

What is the maximum operating pressure and temperature for this strainer?

This fire service strainer has a maximum working pressure of 175 psi (12.1 bar) and can operate with water temperatures up to 140°F (60°C).

Does this strainer offer easy maintenance?

Yes, the strainer is designed to permit removal of the filter for replacement and repair without removing the main body from the line. It also includes two cleanout ports and a flush outlet for convenient maintenance.
