3/8 LF288A-SC

Item Number: 0122749
1 1
$292.12
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 3/8 inch
  • Weight: 16.5 lb
  • Construction: Lead Free* Brass
  • Finish: Satin Chrome Plated
  • Disc Material: Chemical Resistant Silicone
  • Prevents backsiphonage contamination
  • Maximum Operating Temperature: 180°F (82°C)
  • Maximum Working Pressure: 125 PSI
  • Connection Type: Female NPT Inlet and Outlet

Description

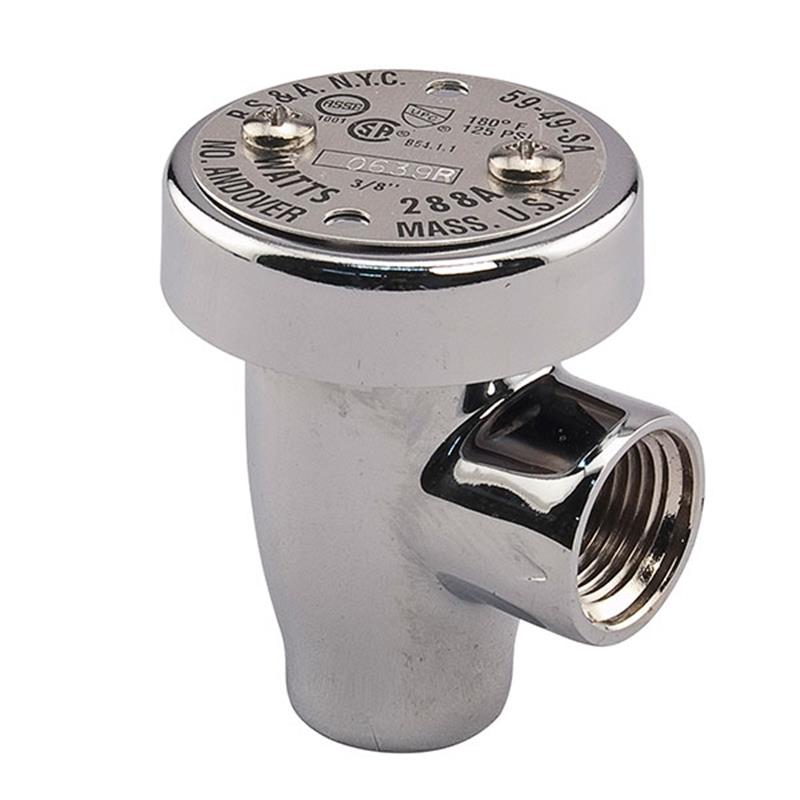

The Watts 3/8 inch Lead Free Anti-Siphon Vacuum Breaker (LF288A-SC) is engineered to prevent the backsiphonage of contaminated water into potable water supplies. Constructed from Lead Free* brass with a satin chrome finish and a chemical resistant silicone seat disc, it ensures durability and reliable operation. This device features a full-size orifice for maximum flow and is suitable for hot or cold water, low-flow, non-continuous health hazard installations like laboratory equipment. It can withstand up to 180°F (82°C) and 125 PSI (8.6 bar) maximum working pressure, providing essential protection against backflow.

Help Me Connect

Installation & Compatibility

  • This atmospheric type vacuum breaker must be installed a minimum of 6 inches above the highest point on the downstream piping to ensure proper function.
  • There must be no shutoff valves downstream of this anti-siphon vacuum breaker.
  • This device is designed for non-continuous pressure applications. It is not to be used under continuous pressure or in situations where backpressure may develop.
  • For applications requiring protection against backpressure backflow or continuous pressure, alternative backflow preventers such as Watts Series LF909, LF009 (for backpressure backflow) or LF800 (for continuous pressure vacuum breaking) should be specified.
  • Features Female NPT inlet and outlet connections, compatible with male NPT threaded piping.
View full details

Additional Details

This 3/8 inch Watts Series LF288A Anti-Siphon Vacuum Breaker Backflow Preventer is designed to prevent the reverse flow of polluted water into a potable water supply due to backsiphonage. It is an ideal choice for low-flow, non-continuous hot or cold water health hazard installations, such as on laboratory equipment.

Features & Construction

  • Constructed from Lead Free* brass with a durable satin chrome plated finish and a chrome hood.
  • Features a chemical resistant silicone seat disc and a lightweight disc float that closes the atmospheric vent to prevent spilling under all flow rates.
  • Equipped with a full size orifice to ensure pipe size capacity and maximum flow with minimal pressure loss.
  • The durable silicone disc offers high heat and water hammer shock resistance, ensuring tight seating with the lightest contact.

Specifications

General

  • Product Type: Anti-Siphon Vacuum Breaker
  • Series: LF288A
  • Size: 3/8 inch
  • Body Material: Lead Free* Brass, Satin Chrome Plated
  • Disc Material: Chemical Resistant Silicone
  • Inlet/Outlet Connection: Female NPT
  • Finish: Satin Chrome

Performance

  • Maximum Operating Temperature: 180°F (82°C)
  • Maximum Working Pressure: 125 PSI (8.6 bar)

Certificates & Approvals

  • ASSE Standard 1001
  • ANSI A112.1.1
  • CSA B64.1.1
  • NSF/ANSI 372
  • UPC

FAQs

What is the primary function of the Watts 3/8 inch LF288A-SC vacuum breaker?

Its primary function is to prevent backsiphonage, which is the reverse flow of polluted water from a non-potable source into a potable water supply. This ensures the safety and purity of your drinking water.

What type of connections does this vacuum breaker have?

This vacuum breaker features 3/8 inch Female NPT (National Pipe Taper) inlet and outlet connections, designed to connect to male NPT threaded piping.

What materials are used in the construction of this device?

The vacuum breaker is constructed from Lead Free* brass with a satin chrome plated finish. It also features a chemical resistant silicone seat disc for durability and effective sealing.

Can this anti-siphon vacuum breaker be used with both hot and cold water?

Yes, the Watts 3/8 inch LF288A-SC is suitable for both hot and cold water installations. It has a maximum operating temperature of 180°F (82°C).

Where should this anti-siphon vacuum breaker be installed?

It must be installed at least 6 inches above the highest point on the downstream piping. This device is designed for low-flow, non-continuous pressure applications, such as on laboratory equipment.
