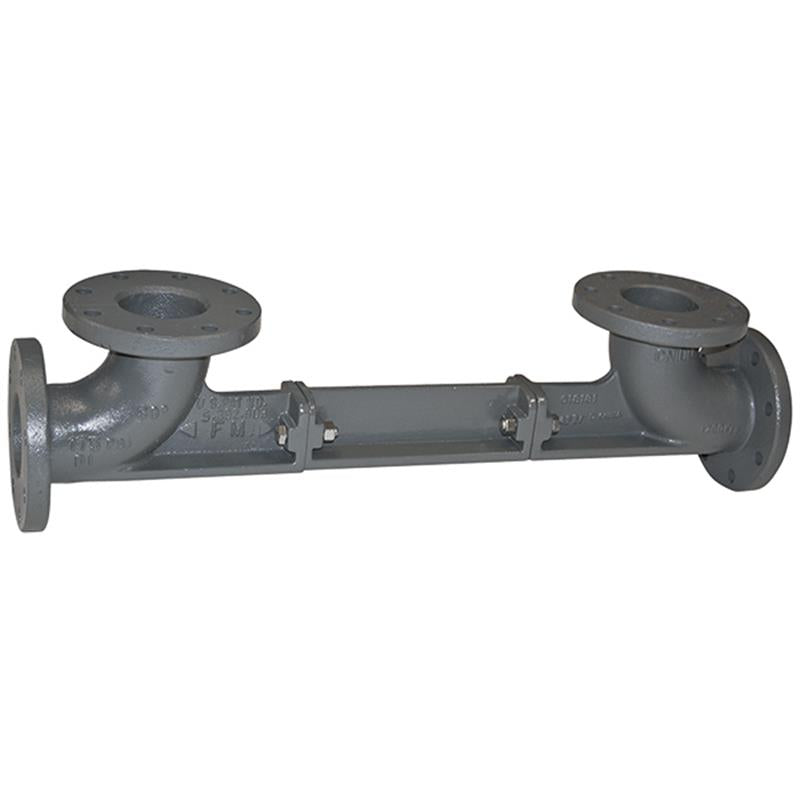

3 AVS-C Flange x Mechanical Joint RP BFG

Item Number: 0693232
1 1
$1,254.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 3 inch (80mm)
  • Weight: 130.0 lb
  • Maximum Operating Pressure: 175 psi
  • Temperature Range: 32°F to 140°F
  • Body Material: Ductile iron A536 GR 65-45-12
  • Corrosion resistant fusion epoxy coating
  • Eliminates need for thrust blocks
  • Flange Standard: ANSI B16.1 Class 125
  • Lead Content: Less than 0.25% by weight

Description

The Ames Series AVS 3 inch valve setter is a durable ductile iron component designed to simplify the installation of "N" series backflow prevention valves. It features a flange by mechanical joint connection and eliminates the need for concrete thrust blocks, saving labor and materials. The fusion epoxy coating provides excellent corrosion resistance. Suitable for temperatures from 32°F to 140°F and pressures up to 175 psi. Its wetted surfaces contain less than 0.25% lead, ensuring compliance with lead-free requirements. Item number 0693232.

Help Me Connect

Compatibility

  • This valve setter is specifically designed to augment the installation of the Ames "N" series backflow prevention valves.
  • It is intended for use with C400NBFG and C500NBFG Series backflow prevention devices.

Connections

  • One end of this valve setter features a flange connection.
  • The other end features a mechanical joint connection.
  • Mechanical joint restraint devices may be used at the pipe connections, depending on local conditions.
View full details

Additional Details

The Ames Series AVS valve setter, 3 inch, is designed to augment the installation of "N" series backflow prevention valves by providing integral support and eliminating the need for thrust blocks.

This specific model features a Flange by Mechanical Joint connection.

Features

  • Corrosion resistant fusion epoxy coated internally and externally.
  • Eliminates the need for thrust blocks or other restraints at the point of installation.
  • Integral ductile iron support between elbows transfers thrust downstream.
  • Constructed of fusion epoxy coated ductile iron for durability.
  • Wetted surface contains less than 0.25% of lead by weight, meeting lead-free requirements.

Connections

  • One side connects to a flange (ANSI B16.1 Class 125, ANSI AWWA C153 A21.53-88).
  • The other side connects via mechanical joint.
  • Designed for use with C400NBFG and C500NBFG Series backflow prevention valves.

Materials

  • Body: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Bolts & Nuts: Stainless steel

Specifications

  • Size: 3 inch (80mm)
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Bolts & Nuts Material: Stainless steel
  • Lead Content: Less than 0.25% by weight (wetted surface)

Certificates & Approvals

  • Flange Standard: ANSI B16.1 Class 125 (Standard)
  • Flange Standard: ANSI AWWA C153 A21.53-88

FAQs

What is the primary purpose of the Ames Series AVS valve setter?

The Ames Series AVS valve setter is designed to augment the installation of "N" series backflow prevention valves by providing integral support, thus eliminating the need for traditional thrust blocks or other external restraints at the point of installation.

What are the connection types for this specific 3 inch AVS valve setter?

This particular 3 inch AVS valve setter features a Flange connection on one end and a Mechanical Joint connection on the other.

What materials are used in the construction of this valve setter?

The body is made from ductile iron A536 GR 65-45-12, coated internally and externally with fusion epoxy (AWWA C550) for corrosion resistance. The bolts and nuts are stainless steel.

What are the maximum operating pressure and temperature limits for this device?

This valve setter can operate at a maximum working pressure of 175 psi (12.1 bar) and within a temperature range of 32°F to 140°F (0°C to 60°C).

Is this Ames AVS valve setter considered lead-free?

Yes, the wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight, meeting lead-free requirements.
