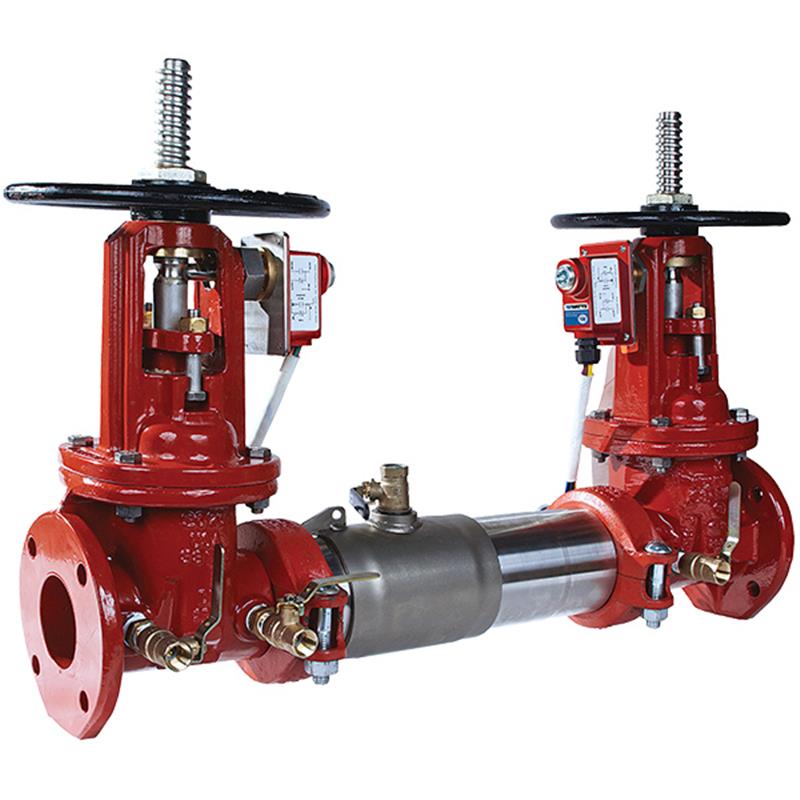

3 C200-OSY-TS

Item Number: 88003103
1 1
$5,312.15
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 3 inch
  • Weight: 250.0 lb
  • Housing Material: 304 Stainless Steel
  • Maximum Working Pressure: 175 PSI
  • Lead Free* Construction
  • Integrated Supervisory Tamper Switch
  • Patented Tri-Link Checks for lowest pressure loss
  • Approved for Horizontal, Vertical, or N-Pattern Installation
  • UL Classified and FM Approved

Description

This Colt 3 inch lead free double check valve backflow preventer assembly is engineered to protect potable water systems from non-health hazard pollutants, making it ideal for fire sprinkler systems and service line entrances. Featuring a compact 304 stainless steel body and patented Tri-Link checks for low pressure loss, it offers reliable performance. The assembly includes OSY shutoff valves with an integrated UL Certified supervisory tamper switch, enhancing system monitoring. Approved for horizontal, vertical, or N-pattern installations, it meets AWWA, ASSE, CSA, UL, FM, and NSF standards. Item number 88003103.

Help Me Connect

Installation Guidance

  • This double check valve assembly is designed for installation in 3 inch pipelines using groove end connections.
  • It is approved for installation in horizontal, vertical, or N pattern configurations, offering flexibility to suit various piping layouts.
  • Ensure the installation aligns with the flow arrow on the assembly.
View full details

Additional Details

The Colt™ 3 inch lead free double check valve backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from entering the potable water supply due to backsiphonage or backpressure.

It is ideal for protection at cross-connections identified as non-health hazards, such as on fire sprinkler systems and from other contaminants found at the service line entrance.

Key Features

  • Extremely compact design, approximately 70% lighter than traditional models
  • Constructed with a 304 (Schedule 40) Stainless steel housing and sleeve
  • Features Outside Stem and Yoke (OSY) resilient seated gate valves
  • Includes an integrated UL Certified, Safety Signaling (Control No. 3L38) supervisory switch on each gate valve
  • Patented Tri-Link check modules provide lowest pressure loss and unmatched ease of serviceability
  • Designed for horizontal, vertical, or N pattern installations
  • Groove fittings allow integral pipeline adjustment
  • Equipped with four test cocks for easy testing
  • Lead Free* construction to comply with reduced lead content requirements

*The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Specifications

  • Product Type: Double Check Valve Backflow Preventer Assembly
  • Model: C200-OSY-TS
  • Size: 3 inch
  • Housing & Sleeve Material: 304 (Schedule 40) Stainless steel
  • Check Valve Type: Tri-Link Check Modules
  • Shutoff Valves: Outside Stem and Yoke (OSY) Resilient Seated Gate Valves
  • Supervisory Switch: Integrated UL Certified, Safety Signaling (Control No. 3L38) Tamper Switch
  • Test Cocks: Four, Ball valve type, Lead Free* Bronze Body
  • Elastomers: EPDM, silicone, Buna 'N'
  • Tri-Link Check Material: Noryl®, Stainless steel
  • Check Discs: Reversible silicone or EPDM
  • Pins & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Installation Orientation: Horizontal, Vertical, N-Pattern

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C510-97
  • ASSE 1015
  • CSA B64.5
  • UL Classified
  • FM Approved
  • NSF Certified to NSF/ANSI 61-G

FAQs

What is the primary purpose of this backflow preventer?

This assembly prevents the reverse flow of non-potable water and fire protection substances from entering the potable water supply due to backsiphonage or backpressure, protecting against non-health hazards.

What materials are used in its construction?

The housing and sleeve are made of 304 (Schedule 40) Stainless steel. Other components include Noryl®, stainless steel, reversible silicone or EPDM discs, and Lead Free* bronze for test cocks.

What are the installation requirements for this assembly?

It is designed for 3 inch pipelines with groove end connections. The assembly is approved for horizontal, vertical, or N-pattern installations, providing flexibility for different site configurations.

Does this model include a tamper switch?

Yes, this specific C200-OSY-TS model features an integrated UL Certified, Safety Signaling (Control No. 3L38) supervisory tamper switch on each OSY gate valve.

What certifications does this assembly hold?

This assembly is approved by FCCCHR-USC, AWWA C510-97, ASSE 1015, CSA B64.5, UL Classified, FM Approved, and NSF Certified to NSF/ANSI 61-G.
