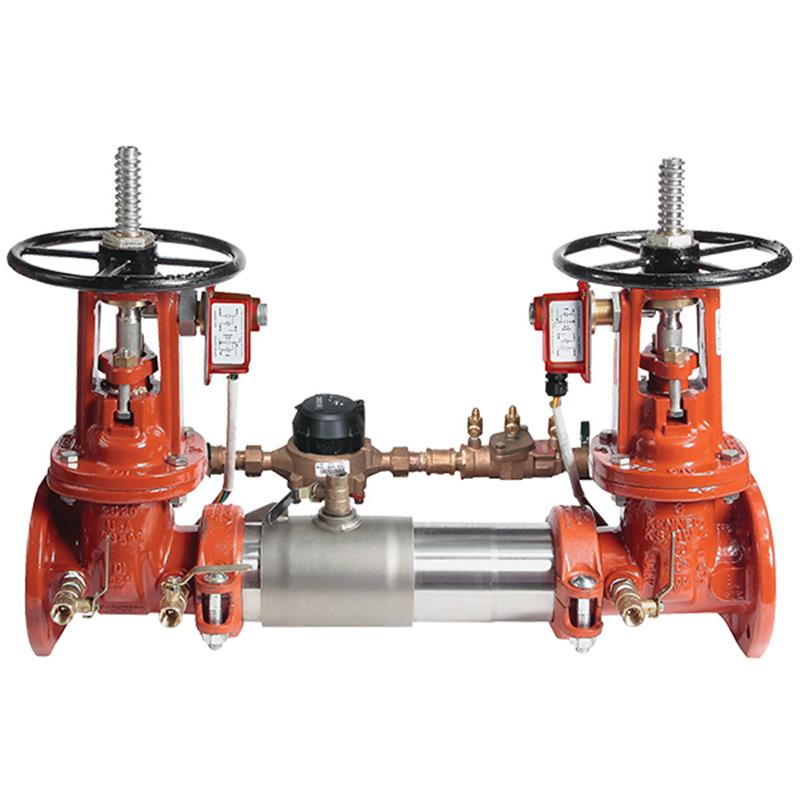

3 C300-OSY-TS-GPM

Item Number: 88003112
1 1
$8,010.69
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Size: 3 inch
  • Weight: 210.0 lb
  • Maximum Working Pressure: 175 PSI
  • Housing Material: 304 Stainless Steel
  • Check Type: Patented Tri-Link
  • Shutoff Valves: OS&Y with integrated supervisory switches
  • Bypass Meter: Gallons per minute (GPM)
  • Installation: Horizontal, Vertical, or N-Pattern
  • Approvals: AWWA C510-97, ASSE 1048, CSA B64.5

Description

This Ames Colt Series C300N 3 inch double check detector backflow preventer assembly protects potable water from non-health hazard cross-connections, such as those found in fire sprinkler systems. It features a compact design with 304 stainless steel housing and patented Tri-Link Checks for low pressure loss and easy serviceability. The unit includes OS&Y gate valves with UL Certified supervisory switches to monitor unauthorized water use or tampering. A bypass meter registers flow in gallons per minute. This backflow preventer is approved by AWWA C510-97, ASSE 1048, CSA B64.5, UL, and FM, and can be installed horizontally, vertically, or in an N-pattern.

Help Me Connect

Connections and Operation

  • This assembly features Outside Stem and Yoke (OS&Y) resilient seated gate valves for shutoff control, typically connecting via flanges.
  • An integrated supervisory switch on each gate valve provides monitoring, designed to send a tamper signal when the valve is closed or the switch is removed.
  • Equipped with a gallon per minute (GPM) bypass meter to detect water flow for leak detection and unauthorized usage.
  • The unit includes four test cocks for easy testing and maintenance.
View full details

Additional Details

This Colt Series C300N 3 inch double check detector backflow preventer assembly is designed to protect drinking water supplies from dangerous cross-connections, preventing reverse flow of non-potable substances into potable water supplies. It is ideal for non-health hazard applications such as fire sprinkler systems and industrial processing.

Features

  • Extremely compact design, up to 70% lighter than traditional designs
  • Housing and sleeve constructed from 304 (Schedule 40) stainless steel for corrosion protection and maximum strength
  • Patented Tri-Link Check provides the lowest pressure loss and unmatched ease of serviceability
  • Groove fittings allow for integral pipeline adjustment
  • Includes an integrated supervisory switch (UL Certified, Safety Signaling, Control No. 3L38) on each OS&Y gate valve to monitor unauthorized water use
  • May be installed for horizontal, vertical, or N pattern installations
  • Equipped with four test cocks and drip tight shutoff valves
  • Bypass assembly includes a meter that registers in gallons per minute to detect underground leaks and unauthorized water use
  • Features reversible elastomer discs for drip-tight closure against reverse flow

A WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.

Specifications

  • Product Type: Double Check Detector Backflow Preventer Assembly
  • Nominal Size: 3 inch
  • Brand: Ames (Colt Series C300N)
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)

Materials

  • Housing & Sleeve Material: 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Tri-Link Checks Material: Noryl®, Stainless Steel
  • Check Disc Material: Reversible Silicone, EPDM
  • Test Cocks Material: Lead Free* Bronze
  • Pins & Fasteners Material: 300 Series Stainless Steel
  • Springs Material: Stainless Steel
  • Shutoff Valves: Outside Stem and Yoke (OS&Y) Resilient Seated Gate Valves
  • Meter Type: Gallons per Minute (GPM) Bypass Meter
  • Supervisory Switch: Integrated, UL Certified, Safety Signaling (Control No. 3L38)

Installation

  • Installation Orientation: Horizontal, Vertical, N-Pattern

Certificates & Approvals

  • Foundation for Cross-Connection Control and Hydraulic Research (FCCCHR-USC)
  • AWWA C510-97
  • ASSE 1048
  • CSA B64.5
  • UL Classified
  • FM Approved

FAQs

What is the primary use of the Ames Colt Series C300N 3 inch Double Check Detector Backflow Preventer?

This assembly is designed to protect drinking water supplies from non-potable substances, preventing reverse flow from non-health hazard cross-connections like fire sprinkler systems and industrial processing. It is not for human consumption plumbing systems.

What type of shutoff valves does this backflow preventer use?

It features Outside Stem and Yoke (OS&Y) resilient seated gate valves. These valves also include integrated UL Certified supervisory switches for monitoring.

What is the purpose of the bypass meter on this assembly?

The bypass assembly includes a meter that registers in gallons per minute, which is used to detect underground leaks and monitor for any unauthorized water use.

Can this backflow preventer be installed in any orientation?

Yes, the Ames Colt Series C300N can be installed in horizontal, vertical, or N-pattern orientations, providing flexibility for various plumbing configurations.

What materials are used for the main housing and checks?

The housing and sleeve are constructed from 304 (Schedule 40) stainless steel, providing durability and corrosion resistance. The Tri-Link checks incorporate Noryl® and stainless steel components with reversible silicone or EPDM discs.
