3 C400-DNRS-FS

Item Number: F0425200
1 1
$13,368.38
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 3 inch
  • Weight: 224.0 lb
  • Housing Material: Type 304 Stainless Steel
  • Shutoff Valves: Domestic Non-Rising Stem (NRS) Gate Valves
  • Pressure Relief Valve: Bottom Mounted, Corrosion Resistant
  • Flood Detection: SentryPlus Alert® Flood Sensor
  • Max Working Pressure: 175 PSI
  • Temperature Range: 33°F - 140°F
  • Installation: Horizontal Configuration

Description

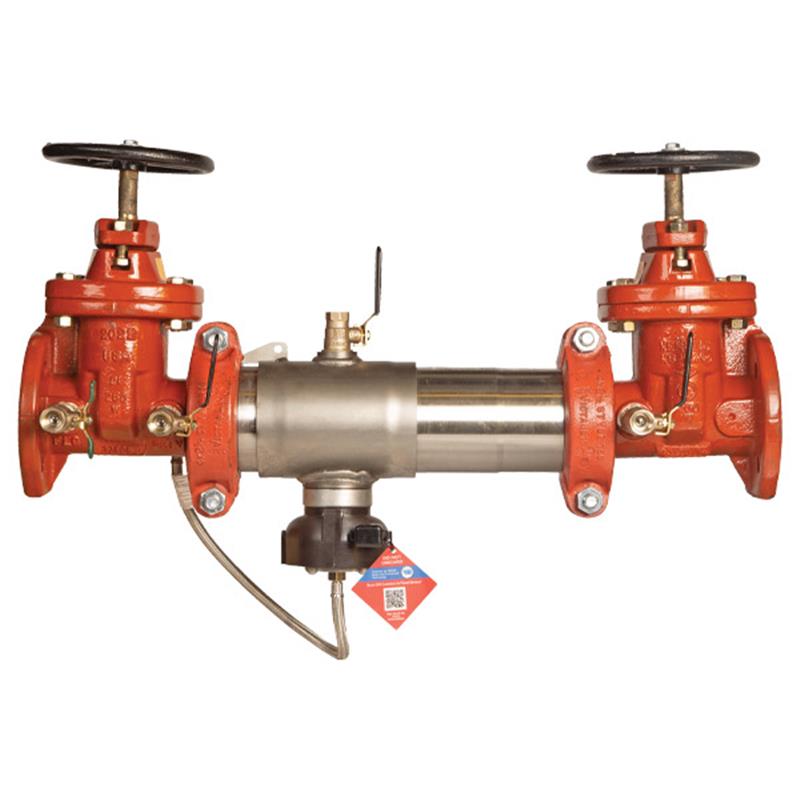

This Colt 3 inch C400 Series reduced pressure zone backflow preventer protects potable water systems from contamination caused by backsiphonage or backpressure. It features a Type 304 stainless steel housing and non-rising stem gate valves, ensuring durability and easy serviceability. An integrated flood sensor with SentryPlus Alert® technology detects excessive relief valve discharges and can send notifications when paired with an add-on connection kit. The compact, lead-free design operates up to 175 PSI within a 33°F to 140°F temperature range. Item number F0425200.

Help Me Connect

This backflow preventer features groove fittings for straightforward installation and integral pipeline adjustment.

The integrated flood sensor with SentryPlus Alert® technology requires an add-on connection kit (sold separately) to activate its alert features. Connection kit options enable integration with Building Management Systems (BMS), cellular networks for text/email alerts, or the Sensor Control Monitor for RS‑485 Modbus or Nexa® platform via Wi-Fi connectivity.

View full details

Additional Details

This Colt™ 3 inch stainless steel reduced pressure zone backflow preventer assembly is designed to protect potable water systems from contamination due to backsiphonage and/or backpressure.

It is suitable for health hazard applications, featuring an extremely compact design that is significantly lighter than traditional assemblies.

Key Features

  • Lead Free* construction, with wetted surfaces containing less than 0.25% lead by weight
  • Type 304 (Schedule 40) stainless steel housing and sleeve for durability
  • Includes two independent Link Check modules and a differential pressure relief valve
  • Torsion spring check modules for unmatched ease of serviceability
  • Domestic non-rising stem gate valves for drip-tight shutoff
  • Ball valve type test cocks for easy maintenance
  • Groove fittings for integral pipeline adjustment and easy installation
  • Corrosion-resistant stainless steel bottom mounted pressure relief valve

Flood Detection & Alerts

  • Integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve.
  • When paired with an add-on connection kit (sold separately), the sensor activates to relay multichannel alerts (call, email, text) to notify personnel of potential flooding.
  • Connection kit options include BMS, cellular communication, and the Sensor Control Monitor which enables integration with BAS via RS‑485 Modbus or the Nexa® platform through Wi-Fi.

The flood sensor does not replace the need to comply with all required instructions, codes, and regulations related to installation, operation, and maintenance of this product, including the need to provide proper drainage in the event of a discharge.

Specifications

General

  • Product Type: Reduced Pressure Zone Backflow Preventer
  • Nominal Size: 3 inch
  • Brand: Colt (Ames Fire & Waterworks, a Watts Brand)
  • Model Series: C400
  • Configuration: Horizontal
  • Wetted Surface Lead Content: Less than 0.25%

Materials

  • Housing & Sleeve: Type 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Link Checks: Noryl®, Stainless Steel
  • Check Discs: Reversible Silicone or EPDM
  • Test Cocks: Lead Free* Bronze Body
  • Pins & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel

Performance

  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Maximum Working Pressure: 175 psi (12.1 bar)

Approvals

  • ASSE: 1013
  • CSA: B64.4
  • AWWA: C511-97
  • NSF: Certified to NSF/ANSI 61-G
  • Approved By: Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)

FAQs

What is the primary purpose of this backflow preventer?

This backflow preventer is designed to protect potable water systems from contamination by preventing the reverse flow of non-potable water due to backsiphonage or backpressure. It is used in health hazard applications.

Is a connection kit required for the flood sensor to work?

Yes, an add-on connection kit is required to activate the flood sensor's alert capabilities. Without the kit, the sensor is a passive component and will not communicate with other devices.

What types of alerts can the flood sensor provide?

When paired with a connection kit, the flood sensor can relay multichannel alerts such as calls, emails, or texts to notify personnel about potential flooding events.

What materials are used for the main components of this assembly?

The housing and sleeve are constructed from Type 304 (Schedule 40) stainless steel. Link checks utilize Noryl® and stainless steel, while check discs are made from reversible silicone or EPDM.

What is the maximum operating pressure and temperature range?

This backflow preventer has a maximum working pressure of 175 psi (12.1 bar) and operates within a temperature range of 33°F to 140°F (0.5°C to 60°C).
