3 C400-OSY-GxG-FS

Item Number: F0112111
1 1
$6,328.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • 3 Inch Reduced Pressure Zone Backflow Preventer
  • Weight: 228.0 lb
  • Type 304 Stainless Steel Housing and Sleeve
  • OSY Resilient Seated Gate Valves
  • Grooved Inlet and Grooved Outlet Connections
  • Includes SentryPlus Alert® Flood Sensor
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F - 140°F
  • ASSE 1013, CSA B64.4, UL, FM, NSF Approved

Description

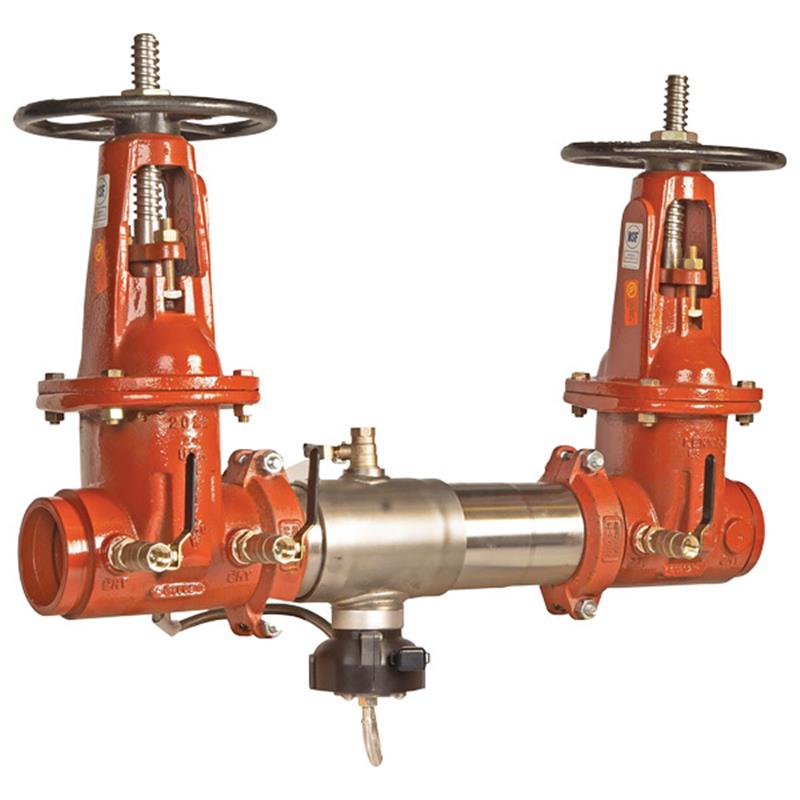

The Colt 3 inch Lead Free Reduced Pressure Zone Backflow Preventer Assembly prevents contamination of potable water supplies from backsiphonage or backpressure. This horizontal installation unit features a durable Type 304 stainless steel housing, OSY resilient seated gate valves with grooved inlet and grooved outlet connections, and torsion spring check modules. It includes a SentryPlus Alert® flood sensor to detect excessive relief valve discharge, with options for integrating into building management systems. Approved by ASSE 1013, CSA B64.4, UL, FM, and NSF, it operates up to 175 PSI within a 33°F to 140°F temperature range. Item number F0112111.

Help Me Connect

This backflow preventer features grooved inlet and outlet connections, designed for ease of installation with compatible grooved piping systems. The assembly is approved for horizontal installation and must be installed in accordance with the direction of the flow arrow to ensure proper function. The grooved ends allow for quick alignment and secure connections.

View full details

Additional Details

This Colt™ 3 inch lead free reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and non-potable water from entering the potable water supply. It is ideal for continuous pressure piping applications and for cross-connections identified as health hazards.

This assembly features a stainless steel body with a quick access sleeve, torsion spring check modules, and OSY resilient seated gate valves with grooved inlet and outlet connections. It includes a bottom-mounted pressure relief valve and test cocks for easy maintenance.

Flood Sensor Technology

  • Equipped with a flood sensor featuring SentryPlus Alert® technology to detect excessive water discharge from the relief valve.
  • An optional add-on connection kit (not included) allows the sensor to relay alerts for potential flooding events.
  • Connection kit options include Building Management Systems (BMS), cellular communication, or the Sensor Control Monitor which integrates with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

Key Features

  • Extremely compact design allows for installation in small enclosures.
  • Constructed with a Type 304 (Schedule 40) stainless steel housing and sleeve.
  • Groove couplings facilitate easy installation and pipe alignment.
  • Patented link check design for lower pressure loss.
  • Unmatched ease of serviceability with torsion spring check modules.
  • Configurable horizontal N-pattern installation.
  • Reversible silicone or EPDM check disc rubber.
  • Sensor on relief valve provides proactive flood detection.
  • Flood alert feature activated via an add-on sensor connection kit.

Specifications

  • Product Type: Reduced Pressure Zone Backflow Preventer
  • Nominal Size: 3 inch
  • Body Material: Type 304 (Schedule 40) Stainless Steel
  • Housing & Sleeve: Type 304 (Schedule 40) Stainless Steel
  • Check Module Type: Torsion Spring
  • Valve Type: OSY Resilient Seated Gate Valves
  • Inlet Connection: Grooved
  • Outlet Connection: Grooved
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Check Links: Noryl® (Elastomer Steel)
  • Check Discs: Reversible Silicone or EPDM
  • Test Cocks: Lead Free* Bronze Body
  • Pins & Springs: 300 Series Stainless Steel
  • Springs: Stainless Steel
  • Installation: Horizontal
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Length (A): 31 1/4 inches (794 mm)
  • Width (C): 18 3/4 inches (476 mm)
  • Height (P): 23 1/4 inches (591 mm)
  • Dimension from Centerline to Bottom (D): 6 1/4 inches (159 mm)
  • Weight: 148 lbs (67 kg)

Certificates & Approvals

  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C511-97
  • ASSE 1013
  • CSA B64.4
  • UL Classified
  • FM Approved
  • NSF

FAQs

What is the primary purpose of this backflow preventer?

This 3-inch reduced pressure zone backflow preventer prevents the reverse flow of non-potable water or fire protection substances into the potable water supply due to backsiphonage or backpressure, protecting against contamination.

What type of connections does this assembly use?

This backflow preventer features grooved inlet and grooved outlet connections, which are designed for easy installation and alignment with compatible grooved piping systems.

What materials are used in the construction of this backflow preventer?

The housing and sleeve are made from Type 304 (Schedule 40) stainless steel. Elastomers include EPDM, silicone, and Buna 'N', with lead free* bronze test cocks and 300 series stainless steel pins and springs.

How does the integrated flood sensor function?

The assembly includes a flood sensor with SentryPlus Alert® technology that detects excessive water discharge from the relief valve. When paired with an add-on connection kit (sold separately), it can relay alerts for potential flooding events.

What are the key certifications and approvals for this product?

This Colt backflow preventer is approved by ASSE 1013, CSA B64.4, UL Classified, FM Approved, NSF, and AWWA C511-97, ensuring it meets high industry standards for safety and performance.
