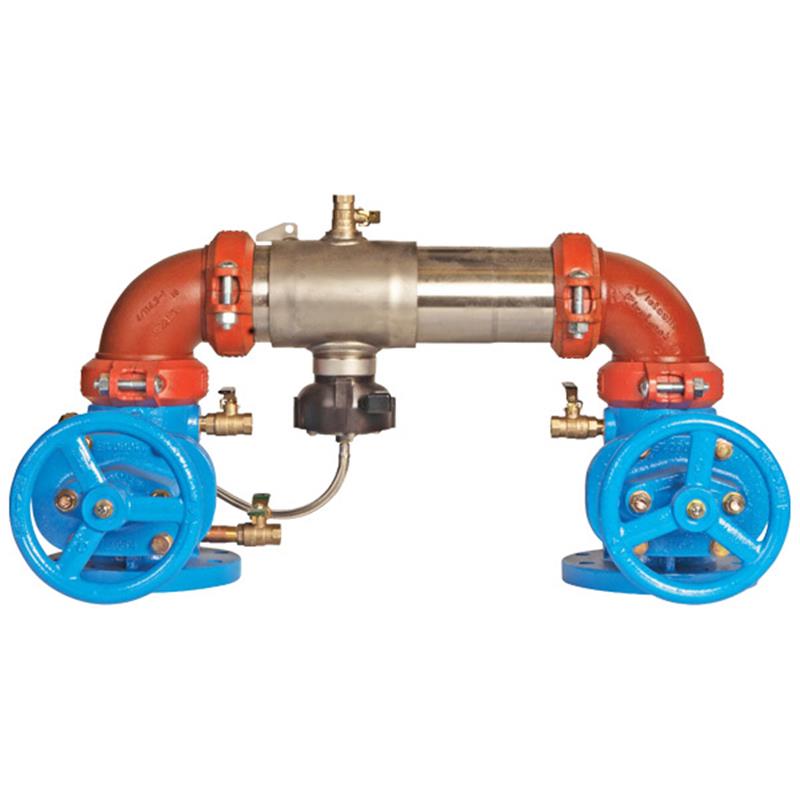

3 C400N-DNRS-FS

Item Number: F0425218
1 1
$15,108.74
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Size: 3 inch
  • Weight: 197.0 lb
  • Type 304 Stainless Steel Housing & Sleeve
  • Reduced Pressure Zone (RPZ) Backflow Preventer
  • Flood Sensor with SentryPlus Alert® Technology
  • Non-Rising Stem (NRS) Shutoff Valves
  • Maximum Working Pressure: 175 PSI
  • Lead Free* Construction
  • Groove Couplings for Easy Installation

Description

This Colt 3 inch Reduced Pressure Zone (RPZ) backflow preventer assembly protects potable water systems from contamination caused by backsiphonage or backpressure. Featuring a durable Type 304 stainless steel housing and non-rising stem (NRS) shutoff valves, it offers a compact, lightweight design. The integrated flood sensor with SentryPlus Alert® technology detects excessive relief valve discharge, alerting personnel via an add-on connection kit. This Lead Free* assembly is approved for horizontal or N-pattern installation and includes groove couplings for easy setup. Maximum working pressure is 175 PSI. Item number F0425218.

Help Me Connect

Flood Sensor Connectivity

The integrated flood sensor requires an add-on sensor connection kit (sold separately) to activate and communicate alerts. Without this kit, the sensor remains passive. Connection kit options allow integration with various systems:

  • Building Management Systems (BMS) via RS-485 Modbus.
  • Cellular Communication for remote alerts.
  • Nexa® Platform through Wi-Fi for smart device integration.

Product Connections

  • Features groove couplings for straightforward installation and pipeline adjustment.
View full details

Additional Details

The Colt 3 inch stainless steel Reduced Pressure Zone Backflow Preventer Assembly (RPZ) is designed to protect potable water systems from contamination due to backsiphonage and/or backpressure.

This backflow preventer features a flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve, helping to prevent potential flooding events. An add-on connection kit is required to activate the flood sensor and enable communication with smart devices or building management systems.

Construction & Design

  • Features an extremely compact design that is significantly lighter than traditional assemblies.
  • Housing and sleeve are constructed from Type 304 (Schedule 40) stainless steel.
  • Includes domestic non-rising stem (NRS) resilient seated gate valves and torsion spring check modules for easy serviceability.
  • Corrosion-resistant stainless steel bottom-mounted pressure relief valve.
  • Equipped with ball valve type test cocks.
  • Groove couplings allow for easy installation and integral pipeline adjustment.
  • Designed for horizontal or N-pattern installation.
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight, complying with Lead Free* installation requirements.

Flood Sensor & Alert System

  • Includes a flood sensor on the relief valve for flood detection.
  • The SentryPlus Alert® technology detects excessive water discharges from the relief valve.
  • With an add-on sensor connection kit (sold separately), the flood sensor relays a signal for multichannel alerts (call, email, text) to notify personnel about potential flooding.
  • Connection kit options can include integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
Note: An add-on connection kit is required to activate the flood sensor. Without this kit, the flood sensor is a passive component and will not communicate with any other device.

Specifications

  • Product Type: Reduced Pressure Zone Backflow Preventer Assembly
  • Nominal Size: 3 inch
  • Model: C400N
  • Operation: Non-Rising Stem (NRS)
  • Housing & Sleeve Material: Type 304 (Schedule 40) Stainless Steel
  • Elastomer Materials: EPDM, Silicone, Buna 'N'
  • Link Check Material: Noryl®, Stainless Steel
  • Check Disc Material: Reversible Silicone or EPDM
  • Test Cock Material: Lead Free* Bronze Body
  • Pins & Fastener Material: 300 Series Stainless Steel
  • Spring Material: Stainless Steel
  • Minimum Temperature: 33°F (0.5°C)
  • Maximum Temperature: 140°F (60°C)
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Lead Content: Wetted surface contains less than 0.25% lead by weight
  • Installation Configuration: Horizontal, N-Pattern

Certificates & Approvals

  • Foundation for Cross-Connection Control and Hydraulic Research (FCCCHR-USC)
  • AWWA C511-97
  • ASSE 1013
  • CSA B64.4
  • UL Classified
  • FM Approved
  • NSF Certified to NSF/ANSI 61-G

FAQs

What is the primary function of this backflow preventer?

This Colt 3 inch Reduced Pressure Zone (RPZ) backflow preventer assembly is designed to protect potable water systems by preventing the reverse flow of contaminated water due to backsiphonage or backpressure.

What materials are used in the construction of this assembly?

The housing and sleeve are made from Type 304 (Schedule 40) stainless steel. It features EPDM, silicone, and Buna 'N' elastomers, Noryl® link checks, and Lead Free* bronze body test cocks.

Is an add-on connection kit required for the flood sensor?

Yes, an add-on sensor connection kit is required to activate the flood sensor and enable its alert capabilities. Without this kit, the flood sensor will remain a passive component and will not communicate.

What are the operating pressure and temperature limits for this device?

This backflow preventer has a maximum working pressure of 175 PSI (12.1 bar). Its operating temperature range is 33°F (0.5°C) to 140°F (60°C).

What certifications does this backflow preventer hold?

It is approved by ASSE 1013, AWWA C511-97, CSA B64.4, UL Classified, FM Approved, and NSF Certified to NSF/ANSI 61-G.
