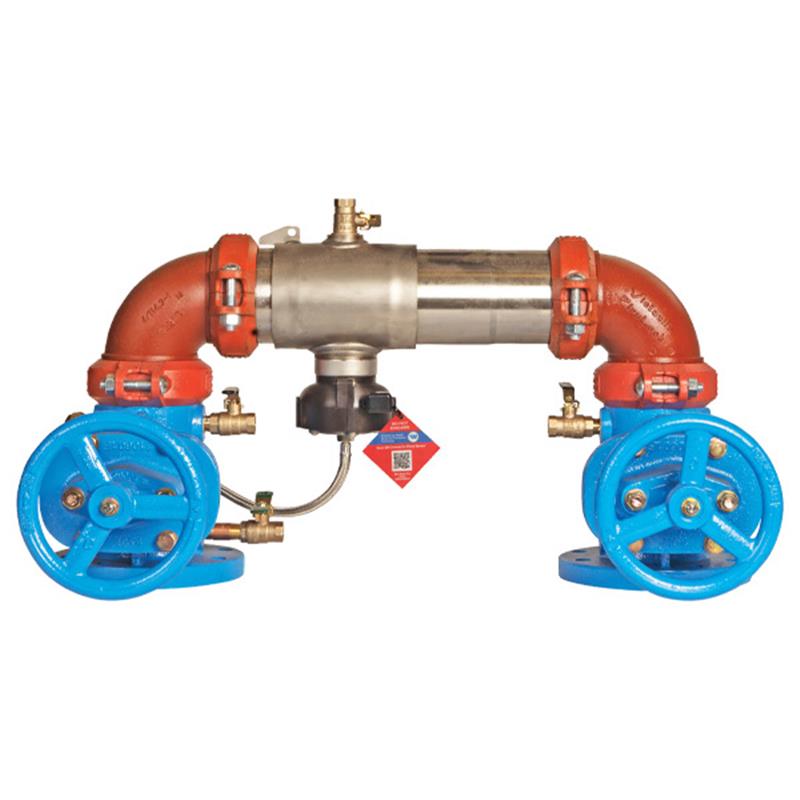

3 C400N-NRS-FS

Item Number: F0191295
1 1
$7,116.11
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 3 inch
  • Weight: 197.0 lb
  • Assembly Type: Reduced Pressure Zone (RPZ)
  • Shutoff Type: Non-Rising Stem (NRS) Gate Valves
  • Housing Material: Type 304 (Schedule 40) Stainless Steel
  • Maximum Working Pressure: 175 psi
  • Flood Sensor with SentryPlus Alert® Technology
  • Lead Free Construction (<0.25% lead)
  • Installation Pattern: Horizontal N-Pattern

Description

The Colt 3 inch C400N-NRS-FS Reduced Pressure Zone Backflow Preventer protects potable water systems from contamination due to backsiphonage and backpressure. Featuring durable Type 304 stainless steel construction and non-rising stem shutoff valves, it is approved for horizontal N pattern installation. An integrated SentryPlus Alert® flood sensor detects relief valve discharge, requiring an add-on connection kit for active alerts via BMS, cellular, or Wi-Fi. This compact, lead-free assembly provides reliable protection for health hazard cross-connections and continuous pressure applications. Item number F0191295.

Help Me Connect

Installation Orientation

  • This assembly is approved for horizontal N pattern installation. Ensure installation aligns with the direction of the flow arrow for proper operation.

Flood Sensor Activation

  • The integrated flood sensor requires an add-on connection kit to be activated and relay alerts.
  • Connection kit options include:
    • BMS integration
    • Cellular communication
    • Sensor Control Monitor for integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform via Wi-Fi.

System Compatibility

  • Designed for continuous pressure piping applications and cross-connections identified as health hazards.
View full details

Additional Details

The Colt 3 inch lead free reduced pressure zone backflow preventer assembly protects potable water systems from contamination due to backsiphonage or backpressure, preventing reverse flow of fire protection substances and non-potable water.

It features non-rising stem (NRS) shutoff valves and is approved for horizontal N pattern installation.

Key Features

  • Includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
  • Requires an add-on connection kit to activate flood sensor alerts via BMS, cellular communication, or Sensor Control Monitor for integration with BAS (RS-485 Modbus) or Nexa® platform (Wi-Fi).
  • Constructed with a Type 304 (Schedule 40) stainless steel housing and sleeve for durability.
  • Extremely compact design, 70% lighter than traditional designs.
  • Torsion spring check modules and groove couplings for ease of serviceability and installation.
  • Lead Free* construction, with wetted surfaces containing less than 0.25% lead by weight.

Note: An add-on sensor connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor is a passive component and will not communicate with any other device.

Specifications

General

  • Size: 3 inch
  • Assembly Type: Reduced Pressure Zone (RPZ)
  • Shutoff Type: Non-Rising Stem (NRS) Gate Valves
  • Installation Pattern: Horizontal N-Pattern
  • Lead Free: Yes (Wetted surface contains <0.25% lead)

Materials

  • Housing & Sleeve: Type 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Link Checks: Noryl®, Stainless Steel
  • Check Discs: Reversible Silicone or EPDM
  • Test Cocks: Lead Free* Bronze Body
  • Pins & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel

Performance

  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Maximum Working Pressure: 175 psi (12.1 bar)

Dimensions (Approximate)

  • Length (A): 31 3/4 inch (806 mm)
  • Height (C, NRS): 18 7/8 inch (479 mm)
  • Width (D): 10 1/4 inch (260 mm)
  • Centerline to G (Inlet): 30 1/4 inch (768 mm)
  • Centerline to H (Outlet): 22 1/4 inch (565 mm)
  • Pipe Length (J): 17 1/8 inch (435 mm)
  • Height to M (Upper Pipe): 9 3/16 inch (233 mm)
  • Height to P (Lower Pipe): 23 inch (584 mm)

Weight

  • Weight (NRS): 147 lbs (67 kg)

Certificates & Approvals

  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at USC (FCCCHR-USC)
  • AWWA C511-97
  • ASSE 1013
  • CSA B64.4
  • UL Classified
  • FM Approved
  • NSF Certified to NSF/ANSI 61-G

FAQs

What is the primary function of the Colt 3 inch C400N-NRS-FS backflow preventer?

This backflow preventer is designed to protect potable water systems by preventing the reverse flow of non-potable substances due to backsiphonage or backpressure, particularly in health hazard cross-connections.

Does this backflow preventer include a flood sensor?

Yes, it includes a SentryPlus Alert® flood sensor to detect excessive water discharges from the relief valve. An add-on connection kit is required to activate and relay these alerts.

What type of shutoff valves does this assembly use?

The C400N-NRS-FS model utilizes non-rising stem (NRS) resilient seated gate valves.

What installation orientations are approved for this backflow preventer?

This backflow preventer is approved for horizontal N pattern installation. Always ensure installation follows the direction of the flow arrow.

Is this product considered "lead free"?

Yes, this assembly features Lead Free* construction, meaning the wetted surface contacted by consumable water contains less than 0.25% of lead by weight.
