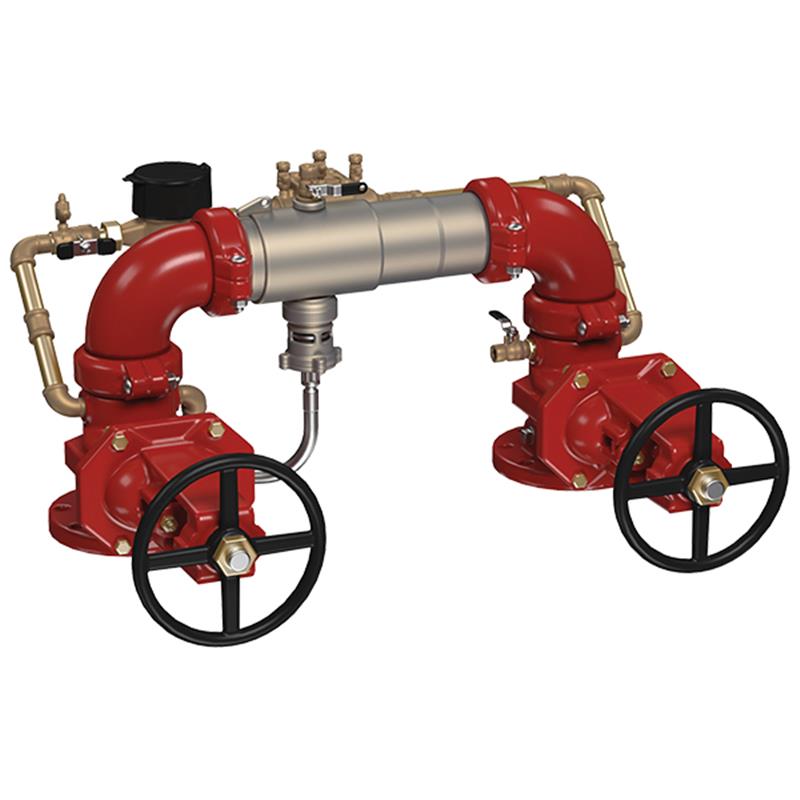

This Colt Series C500 3 inch Reduced Pressure Detector Backflow Preventer Assembly is designed to protect potable water supplies from dangerous cross-connections, in accordance with national plumbing codes and water authority requirements.

It is ideal for health-hazard non-potable service applications such as fire sprinkler systems, irrigation, or industrial processing, preventing the reverse flow of contaminants due to backsiphonage or backpressure.

A WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

Construction & Design

• Features an extremely compact design, up to 70% lighter than traditional models.
• The assembly's housing and sleeve are constructed from 304 (Schedule 40) stainless steel with groove end connections for integral pipeline adjustment.
• Includes two independent Link Check modules with patented link check for lowest pressure loss and unmatched ease of serviceability.
• Replaceable check disc rubber and Noryl® stainless steel link checks ensure drip-tight closure.
• A bottom-mounted cast stainless steel relief valve is included.
• Equipped with UL Classified and FM Approved outside stem and yoke (OSY) resilient seated gate valves.
• Approved for horizontal N pattern installation.

Metering & Monitoring

• Features a metered bypass (gallons per minute) to detect leakage or unauthorized water use from the fire sprinkler system.
• Includes a sensor on the relief valve for flood detection, designed to alert personnel to excessive water discharges.
• The flood alert feature is activated by an add-on sensor connection kit (sold separately), which enables communication with other devices.
• The OS&Y model includes an option for an integrated supervisory switch on each gate valve, designed to send a tamper signal if the valve is closed or removed.
