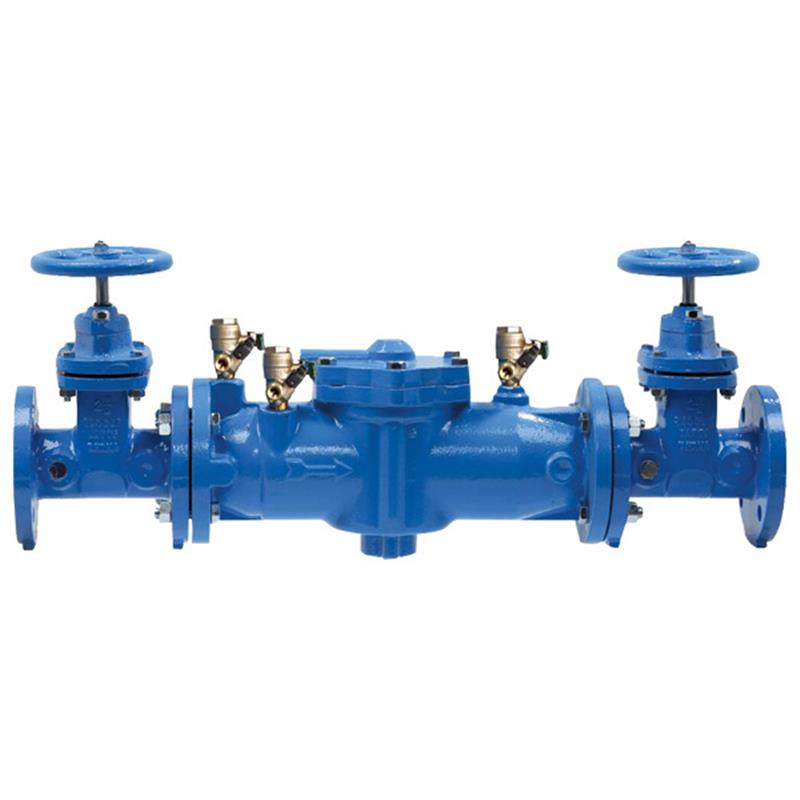

3 LF007-DNRS-IOT

Item Number: 88003380
1 1
$8,246.23
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 3 inch
  • Body Material: Lead Free Cast Iron
  • Coating: ArmorTek Powder Coating
  • Pressure-Sensing IoT Test Cocks included
  • Maximum Working Pressure: 175 psi
  • Non-Rising Stem (NRS) Gate Valves
  • Modular, compact design for easy maintenance
  • ASSE 1015 and AWWA C510 Approved

Description

The Watts 3 inch LF007 Lead Free Double Check Valve assembly prevents polluted water backflow into the potable supply. Featuring a durable fused epoxy-coated cast iron body with patented ArmorTek corrosion protection, this assembly ensures long-lasting performance. It includes non-rising stem (NRS) gate valves and integrated pressure-sensing IoT test cocks for advanced monitoring capabilities (with an add-on kit). Its modular design allows for easy maintenance without special tools, making it ideal for non-health hazard cross-connections in continuous pressure applications. Item number 88003380.

Help Me Connect

Installation & Monitoring

  • This double check valve assembly is installed at cross-connections to prevent backflow of polluted water into the potable supply, specifically where local inspection authorities identify non-health hazards.
  • The integrated pressure sensors in the IoT test cocks require an add-on monitoring connection kit to collect and transmit data to a Building Management System (BMS) or Building Automation System (BAS) via a wired serial (RS-485) interface.
  • The add-on connection kit and pressure sensors are also available for existing installations.
View full details

Additional Details

The Watts LF007 Double Check Valve assembly is a 3 inch lead free device designed to prevent the backflow of polluted water into the potable water supply due to backsiphonage or backpressure, suitable for non-health hazard cross-connections.

This assembly features a compact, modular design with pressure-sensing IoT test cocks and a corrosion-resistant ArmorTek coating.

Key Features

  • Modular, compact design facilitates maintenance and assembly by retaining the spring load.
  • ArmorTek coating technology resists corrosion of internals.
  • Fused epoxy coated cast iron body for durability.
  • Top-mounted Lead Free ball valve test cocks.
  • Sensors integrated at test cocks (No. 2, No. 3, and No. 4) measure pressure fluctuations; activated with an add-on monitoring connection kit (BMS/BAS only).
  • Replaceable seats and seat discs for extended service life.
  • Easier maintenance through a single, top-entry cover.
  • No special tools required for servicing.
  • Low pressure drop.

Inquire with governing authorities for local installation requirements. The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer.

Specifications

  • Product Series: LF007
  • Size: 3 inch
  • Check Valve Body Material: Lead Free cast iron
  • Body Coating: ArmorTek powder coating, applied to internal and external surfaces; Fused epoxy coated
  • Check Module: Captured spring and rubber seat disc
  • Access Cover Bolts: Stainless steel
  • Isolation Valves: Domestic non-rising stem (NRS) resilient seated gate valves
  • Test Cocks: Top-mounted Lead Free ball valve with pressure-sensing IoT (Integrated Open Technology)
  • Temperature Range (Continuous): 33°F - 110°F (0.5°C - 43°C)
  • Temperature Range (Intermittent): 140°F (60°C)
  • Maximum Working Pressure: 175 psi (12.1 bar)

Certificates & Approvals

  • ASSE Standard 1015
  • AWWA Standard C510
  • IAPMO PS31
  • CSA B64.5
  • UL Classified with OSY gate valves (horizontal only)
  • Horizontal and vertical "flow up" approval on all sizes
  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California
  • Certified to NSF/ANSI 372

FAQs

What is the primary function of the Watts LF007 Double Check Valve assembly?

The primary function is to prevent the backflow of polluted water into the potable water supply, specifically at cross-connections identified as non-health hazards. It protects against both backsiphonage and backpressure conditions.

Does this assembly include a coating for corrosion resistance?

Yes, the assembly features ArmorTek® coating technology, a patented three-part advanced epoxy system, applied to the fused epoxy coated cast iron body to resist microbial-induced corrosion (MIC) and protect exposed metal substrate.

What does "pressure-sensing IoT test cocks" mean, and how are they used?

The LF007 assembly includes integrated pressure sensors at test cocks No. 2, 3, and 4 to measure pressure fluctuations. These sensors are activated and transmit data when connected to an add-on monitoring kit, allowing for performance assessment via a Building Management System (BMS) or Building Automation System (BAS).

Is special tooling required for maintenance of the LF007 assembly?

No, the Watts LF007 assembly is designed for easy maintenance through a single, top-entry cover, and no special tools are required for servicing. This simplifies routine checks and repairs.

What is the maximum operating pressure for this backflow preventer?

The maximum working pressure for the Watts LF007 Double Check Valve assembly is 175 psi (12.1 bar).
