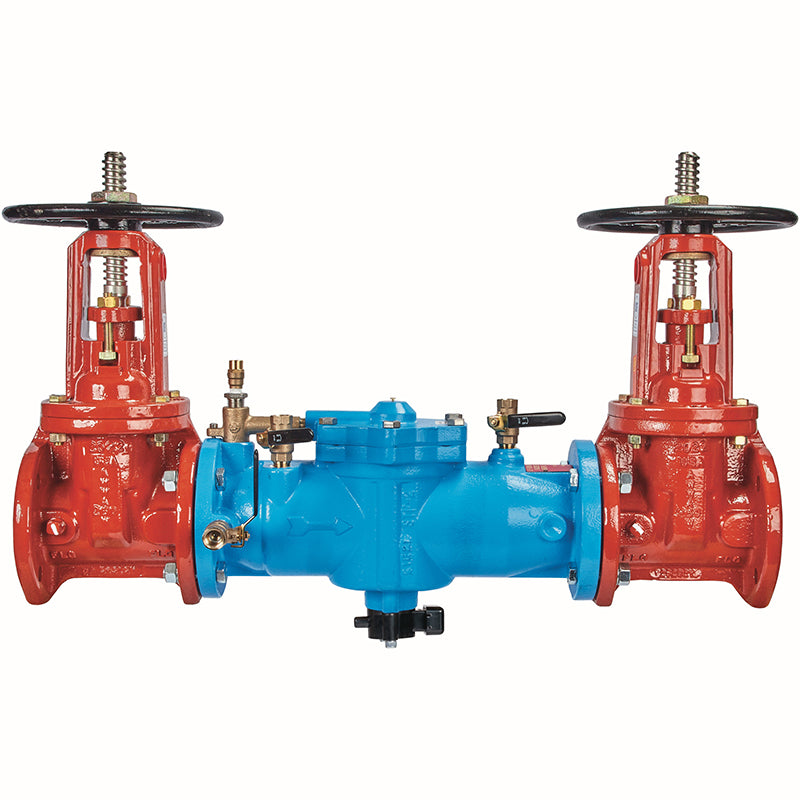

This 3 inch Watts Series LF009 Reduced Pressure Zone Backflow Preventer Assembly is designed to protect potable water supplies from backflow caused by backsiphonage or backpressure. It is ideal for preventing health hazard cross-connections and contamination in continuous pressure piping applications.

Construction & Materials

• Features a durable cast iron body construction coated with ArmorTek®, a patented three-part advanced epoxy system that resists microbial-induced corrosion (MIC) and protects exposed metal substrate.
• Designed with Lead Free* construction, ensuring the wetted surface contains less than 0.25% lead content.
• Equipped with UL and FM Approved Outside Stem and Yoke (OSY) resilient seated gate valves for reliable shutoff.
• Includes two in-line independent check valves, captured springs, and replaceable check seats, along with an internal relief valve for reduced installation clearances.
• Features NPT inlet and outlet connections.

Key Features

• Compact, space-saving design facilitates installation in various settings.
• Single access cover and modular check construction ensure ease of maintenance and economical repair with replaceable seats.
• Top entry to all internals allows for immediate accessibility.
• Captured springs provide safer maintenance.
• Large body passages ensure low pressure drop.
• No special tools are required for servicing.

Flood Sensor Technology

• Integrated flood sensor with SentryPlus Alert® technology detects continuous discharge from the relief valve, preventing potential flooding.
• When paired with an add-on sensor connection kit, the sensor activates to relay alerts for potential flooding events via BMS, cellular communication, or the Sensor Control Monitor for BAS/Nexa® Wi-Fi integration.
