Certified to ASSE 1001, CSA B64.1.1, IAPMO UPC, and NSF/ANSI 372
Description

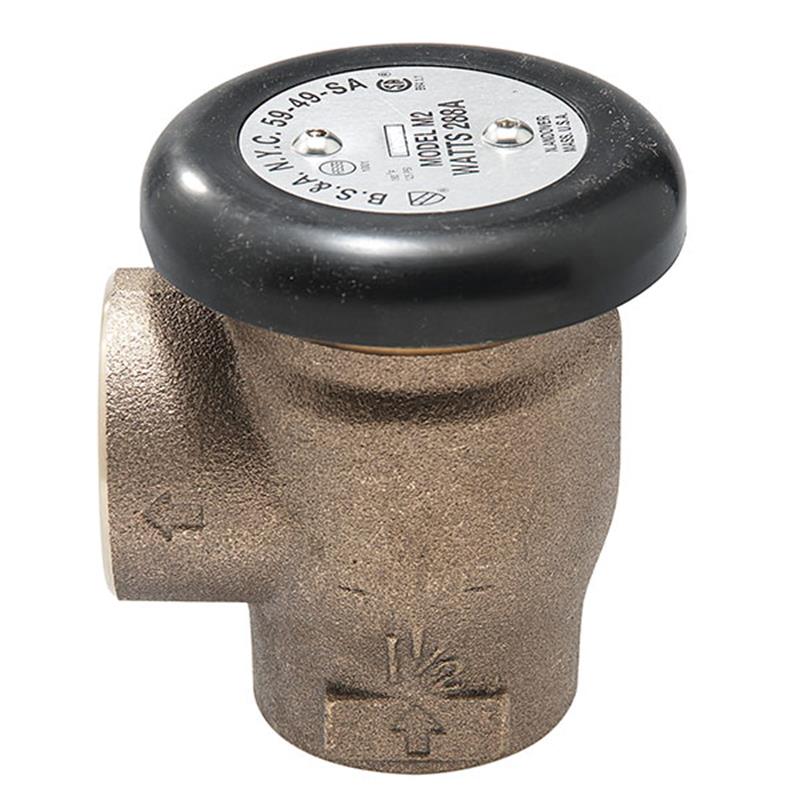

The Watts 3 inch Lead Free Anti-Siphon Vacuum Breaker Backflow Preventer is designed to protect potable water supplies from pollution due to backsiphonage. Constructed with lead free brass and featuring a chemical resistant silicone seat disc, it ensures safe operation for both hot and cold water up to 180°F (82°C) and 125psi. Its full size orifice guarantees maximum flow and minimum pressure loss, making it ideal for low flow, non-continuous applications such as laboratory equipment. This reliable backflow preventer is certified to ASSE 1001, CSA B64.1.1, IAPMO UPC, and NSF/ANSI 372. Item number 0122748.
Help Me Connect
Installation Guidelines
This atmospheric vacuum breaker (AVB) must be installed a minimum of 6 inches above the highest point of the downstream piping to ensure proper functionality and prevent backsiphonage.
It is crucial that no shutoff valves are present downstream of the AVB, as this can impede its operation and compromise protection.
The Watts 3 inch Lead Free Anti-Siphon Vacuum Breaker Backflow Preventer is designed to prevent the reverse flow of polluted water into the potable water supply due to backsiphonage. This device is suitable for both hot and cold water applications.
Construction
Features lead free brass construction for safe use in potable water systems.
Equipped with a chemical resistant silicone seat disc and a chrome hood for durability.
An atmospheric vent prevents spilling, even under low flow conditions.
Performance & Design
Designed with a full size orifice to ensure pipe size capacity and maximum flow with minimum pressure loss.
The lightweight, durable disc float is suitable for temperatures up to 180°F (82°C) and effectively closes the atmospheric vent to prevent spilling under all rates of flow.
Specifically designed to prevent spilling due to surges and other atmospheric conditions, ideal for equipment that uses small amounts of water.
Applications
Ideal for low flow, non-continuous hot or cold water health hazard applications, such as on laboratory equipment.
Specifications
Body Material: Lead Free Brass
Disc Material: Silicone
Size: 3 inch
Connection Type: Female NPT
Maximum Temperature: 180°F (82°C)
Maximum Working Pressure: 125psi (8.6 bar)
Weight: 274 oz (7768 gm)
Certificates & Approvals
ASSE 1001
CSA B64.1.1
IAPMO UPC
NSF/ANSI 372
FAQs
What is the primary function of this 3 inch backflow preventer?
This Watts 3 inch Lead Free Anti-Siphon Vacuum Breaker is designed to prevent the reverse flow of polluted water into the potable water supply due to backsiphonage. It is suitable for both hot and cold water applications.
What are the maximum temperature and pressure ratings for this device?
This backflow preventer can operate effectively with a maximum water temperature of 180°F (82°C) and a maximum working pressure of 125psi (8.6 bar).
Is this product suitable for potable water systems?
Yes, this anti-siphon vacuum breaker features lead-free brass construction and is certified to NSF/ANSI 372, making it safe and compliant for use in potable water applications.
What are the key installation requirements for this vacuum breaker?
It must be installed a minimum of 6 inches above the highest point of the downstream piping. Additionally, there should be no shutoff valves located downstream of the anti-siphon vacuum breaker.
What type of applications is this vacuum breaker best suited for?
It is ideal for low flow, non-continuous hot or cold water health hazard applications, such as protecting laboratory equipment or other fixtures that use small, intermittent amounts of water.
