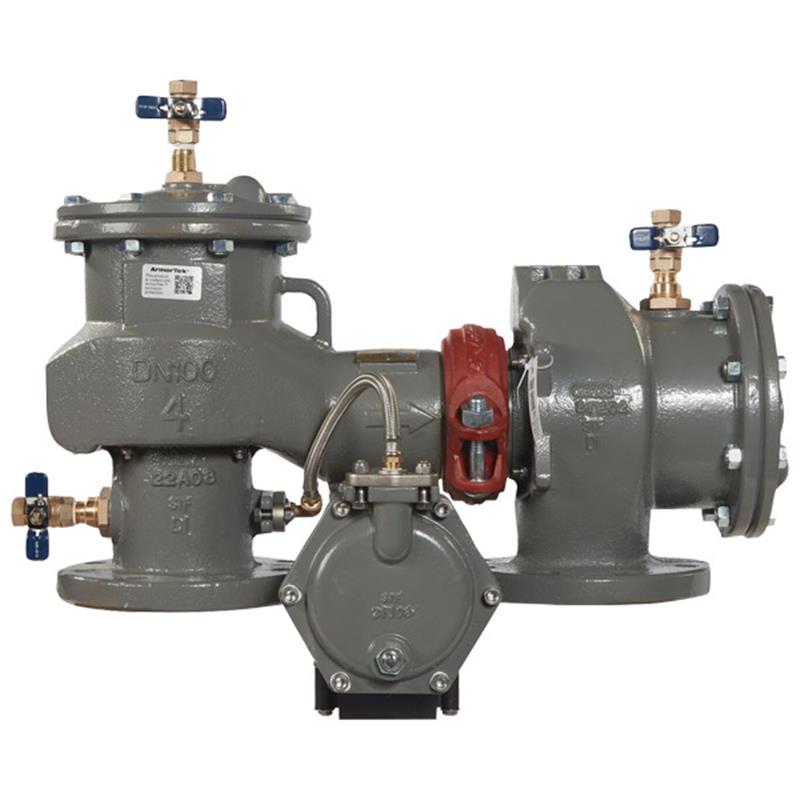

3 LF880V-LG-FS

Item Number: F122946
1 1
$7,968.74
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 3 inch
  • Weight: 162.0 lb
  • Lead Free Construction
  • Body: Ductile Iron with ArmorTek Epoxy Coating
  • Relief Valve Seat: Stainless Steel
  • Check Components: Stainless Steel
  • Includes SentryPlus Alert Flood Sensor
  • Protects against high hazard (toxic) fluids
  • Typical Relief Valve Flow Rate (3 inch): 112 GPM

Description

The 3 inch FEBCO LF880V-LG-FS is a lead-free ductile iron reduced pressure zone backflow preventer assembly designed to protect water services from high hazard (toxic) fluids in industrial applications. Its robust construction features a patented 3-part ArmorTek® epoxy coating for superior corrosion resistance, a stainless-steel relief valve seat, and stainless-steel check components for enhanced durability and performance. This assembly comes without shutoff valves and includes a SentryPlus Alert® flood sensor for detecting continuous relief valve discharge, with options for integration into building management systems. Item number F122946.

Help Me Connect

This Reduced Pressure Zone Backflow Preventer Assembly is supplied without integral shutoff valves, allowing for flexible installation with external isolation valves appropriate for your system.

Sensor Connectivity

  • The integrated SentryPlus Alert® flood sensor can be connected to an add-on sensor connection kit to extend flood monitoring.
  • Connection kit options include systems for BMS, cellular communication, or the Sensor Control Monitor.
  • The Sensor Control Monitor enables integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi for maintenance alerts.
View full details

Additional Details

This 3 inch lead free MasterSeries® configurable reduced pressure zone backflow preventer assembly is designed to protect against high hazard (toxic) fluids in water services to industrial installations and applications.

This assembly is supplied without shutoff valves.

Construction & Materials

  • Features a ductile iron body construction with patented 3-part ArmorTek® epoxy coating system, engineered to limit both microbial induced (MIC) and exposed metal substrate corrosion.
  • Combines a stainless-steel relief valve seat and stainless-steel check components for maximum performance, durability, and extended valve life.
  • Lead free construction throughout the assembly.
  • Configurable N-Pattern design.

Components

  • Includes a lead free body, test cocks, spring loaded check valves, and a pressure differential relief valve.

Monitoring & Connectivity

  • Equipped with a flood sensor featuring SentryPlus Alert® technology to detect continuous discharge from the relief valve.
  • Supports an add-on sensor connection kit to extend flood monitoring capabilities on compatible assemblies.
  • Integrates with the Sensor Control Monitor to deliver maintenance alerts to Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform by Wi-Fi connectivity.

Specifications

  • Product Type: Reduced Pressure Zone Backflow Preventer Assembly
  • Size: 3 inch
  • Lead Free: Yes
  • Body Material: Ductile Iron
  • Coating: Patented 3-part ArmorTek® Epoxy Coating
  • Relief Valve Seat Material: Stainless Steel
  • Check Component Material: Stainless Steel
  • Pattern: N-Pattern
  • Shutoffs: Less Shutoffs (Supplied without shutoff valves)
  • Flood Sensor: SentryPlus Alert® Technology
  • Application: High Hazard (Toxic) Fluids

Performance Data

  • Typical Relief Valve Flow Rate (3 inch): 112 GPM

FAQs

What is the primary function of the FEBCO 3 LF880V-LG-FS assembly?

This 3-inch lead-free reduced pressure zone backflow preventer assembly is designed to protect water systems against high hazard (toxic) fluids, particularly in industrial installations and applications.

Does this backflow preventer come with shutoff valves?

No, this assembly is supplied without the shutoff valves. Users should install appropriate external isolation valves for their specific application.

What is ArmorTek® coating, and what are its benefits?

ArmorTek® is a patented 3-part advanced epoxy coating system applied to the ductile iron body. It is designed to significantly limit both microbial induced (MIC) corrosion and corrosion of exposed metal substrates, enhancing durability.

How does the SentryPlus Alert® flood sensor work?

The SentryPlus Alert® flood sensor is integrated into the assembly to detect continuous discharge from the relief valve. It can be paired with an add-on connection kit to relay alerts for potential flooding events to monitoring systems.

What materials are used for critical components in this assembly?

The assembly features a robust ductile iron body, a durable stainless-steel relief valve seat, and stainless-steel check components, all designed for maximum performance and extended valve life.
