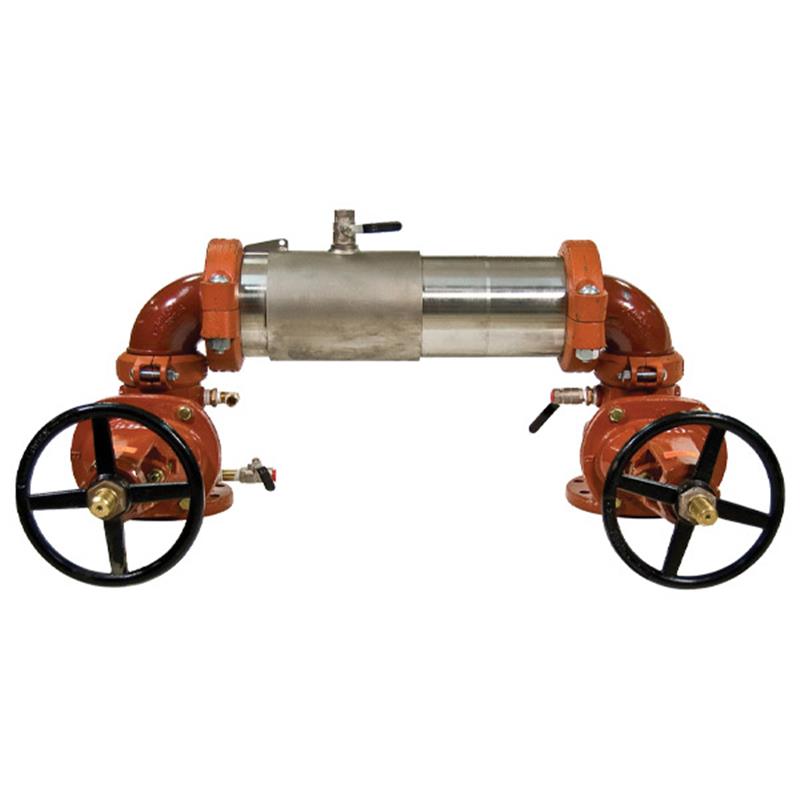

3 M200N-NRS

Item Number: 0191019
1 1
$7,224.01
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Size: 3 inch
  • Weight: 194.0 lb
  • Body Material: 304 Stainless Steel
  • Shutoff Valves: Non-Rising Stem (NRS)
  • Check Modules: Patented Tri-Link Checks
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F - 110°F
  • Lead Free: Less than 0.25% lead content
  • Easy maintenance without special tools

Description

The 3 inch Maxim M200N Lead Free Double Check Valve Backflow Preventer Assembly is designed to protect potable water systems from non-health hazard pollutants, making it ideal for fire protection systems and other non-potable cross-connections. It features a durable 304 stainless steel body, non-rising stem shutoff valves, and patented Tri-Link Checks for minimal pressure loss. This compact, lightweight unit offers unmatched serviceability without special tools, a maximum working pressure of 175 PSI, and lead-free wetted surfaces. It is approved to AWWA C510-97, ASSE 1015, and NSF/ANSI 61-G standards. Item number 0191019.

Help Me Connect

This Maxim M200N backflow preventer assembly features groove end connections for easy installation and integral pipeline adjustment. It is approved for N Pattern installation, but can also be installed horizontally or vertically to suit various system layouts.

View full details

Additional Details

The Maxim M200N 3 inch Lead Free Double Check Valve Backflow Preventer Assembly is designed to prevent the reverse flow of non-potable water and fire protection substances from entering the potable water supply system due to backsiphonage or backpressure.

This assembly is ideal for protection at cross-connections identified as non-health hazards, such as on high-flow fire systems and other contaminants found at the service line entrance. Its compact modular design with a single access sleeve ensures easy maintenance.

Features

  • Extremely Compact Design, approximately 70% lighter than traditional designs
  • Constructed with a 304 (Schedule 40) Stainless Steel Housing & Sleeve for durability
  • Features Patented Tri-Link Checks that provide the lowest pressure loss
  • Groove Fittings allow for integral pipeline adjustment
  • Unmatched Ease of Serviceability, allowing check modules to be removable and serviceable without the use of special tools
  • Includes two independent Tri-Link Check modules, two drip tight shutoff valves, and four ball valve type test cocks
  • Non-rising stem (NRS) resilient seated gate valves are included
  • Designed for N Pattern installations, also available for horizontal or vertical
  • Wetted surfaces of this product contain less than 0.25% of lead by weight

Specifications

  • Product Type: Double Check Valve Backflow Preventer Assembly
  • Brand: Maxim (Ames Fire & Waterworks)
  • Model: M200N
  • Nominal Size: 3 inch
  • Housing & Sleeve Material: 304 (Schedule 40) Stainless Steel
  • Check Modules: Two independent Patented Tri-Link Checks
  • Shutoff Valves: Non-Rising Stem (NRS) Resilient Seated Gate Valves
  • Test Cocks: Four, Lead Free Bronze Body, Ball Valve Type
  • Check Disc Material: Reversible Silicone or EPDM
  • Elastomers: EPDM, Silicone, and Buna 'N'
  • Pins & Fasteners Material: 300 Series Stainless Steel
  • Springs Material: Stainless Steel
  • Maximum Working Pressure: 175 PSI (12.06 bar)
  • Temperature Range: 33°F - 110°F (0.5°C – 43°C)
  • Installation Pattern: N Pattern (also Horizontal, Vertical)
  • Lead Content: Wetted surface contains less than 0.25% lead by weight

Certificates & Approvals

  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C510-97
  • ASSE 1015
  • CSA B64.5
  • NSF/ANSI 61-G

FAQs

What is the primary purpose of the Maxim M200N backflow preventer?

The Maxim M200N 3 inch Lead Free Double Check Valve Backflow Preventer Assembly prevents the reverse flow of non-potable water and fire protection substances into the potable water system. It is specifically designed for non-health hazard applications like high-flow fire systems.

What material is the body of this backflow preventer made from?

The housing and sleeve are constructed from durable 304 (Schedule 40) stainless steel. This material ensures robust performance and corrosion resistance for long-term use.

Does this backflow preventer require special tools for maintenance?

No, the patented Tri-Link Check modules are designed for unmatched ease of serviceability. They can be removed and serviced efficiently without the need for special tools.

What is the maximum operating pressure and temperature range for this assembly?

This assembly can handle a maximum working pressure of 175 PSI (12.06 bar). It is designed to operate within a temperature range of 33°F to 110°F (0.5°C to 43°C).

Is this product compliant with lead-free standards?

Yes, the wetted surface of this product contains less than 0.25% of lead by weight. This compliance ensures it meets lead-free requirements for consumable water contact.
