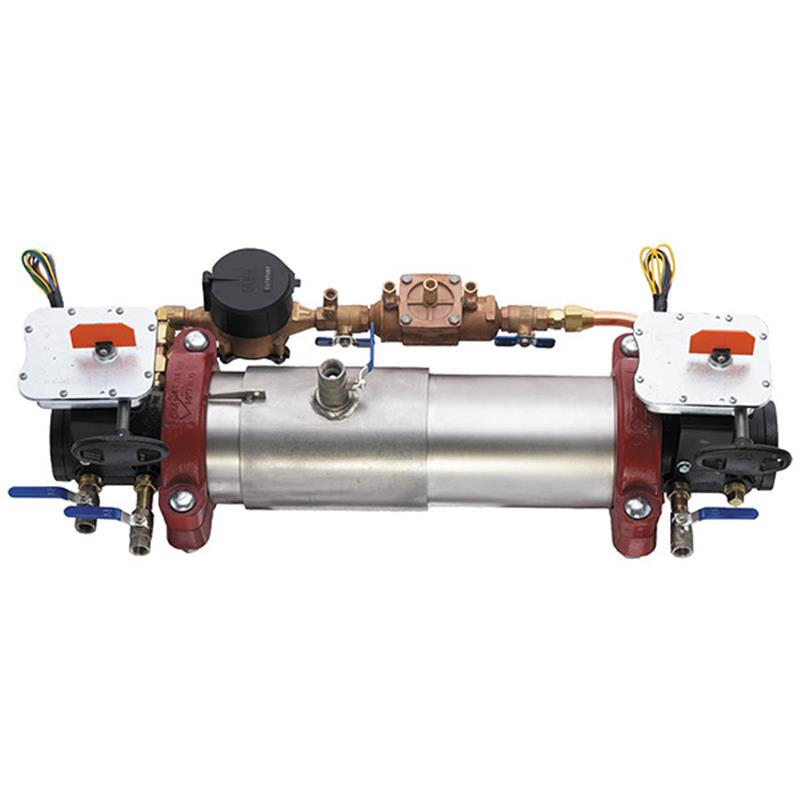

3 M300-BFG-GPM

Item Number: 0191061
1 1
$10,355.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Size: 3 inch
  • Weight: 71.2 lb
  • Body Material: Stainless Steel
  • Model: Maxim™ Double Check Detector Backflow Preventer
  • Maximum Working Pressure: 175 psi (12.06 bar)
  • Includes Grooved Gear Butterfly Shutoff Valves with Tamper Switch
  • Furnished with Gallon per Minute Meter
  • Tri-link check valve assembly for lowest pressure loss
  • Approved for horizontal or vertical installation

Description

This 3 inch Maxim™ double check detector backflow preventer assembly, SKU 0191061, is designed for fire protection and other non-health hazard applications. It prevents the reverse flow of non-potable water into the potable water supply due to backsiphonage or backpressure. Featuring stainless steel construction for durability, it includes grooved gear butterfly valves with tamper switches and a gallon per minute meter for leak detection. Its compact, modular design with tri-link check valves offers low pressure loss and allows for horizontal or vertical installation, making it suitable for various cross-connection protection needs.

Help Me Connect

This Maxim™ 3 inch double check detector backflow preventer assembly is designed for flexible installation. It is approved for both horizontal and vertical installations, guided by the flow arrow on the assembly.

For proper operation and maintenance, ensure adequate clearance around the valve. A minimum of 12 inches of clearance is required between the lower portion of the assembly and the floor or grade. The valve must be protected from freezing. To accommodate normal discharge and nuisance spitting, the use of an Ames air gap fitting and a fabricated indirect waste line is recommended, along with floor drains of the same size as the valve itself.

View full details

Additional Details

This Maxim™ 3 inch double check detector backflow preventer assembly is engineered to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply. It protects against backsiphonage and backpressure in accordance with national plumbing codes and water authority requirements.

Applications

  • Ideal for protection at cross-connections identified as non-health hazards
  • Suitable for use on fire sprinkler systems and against contaminants at the service line entrance

Features

  • Stainless steel construction for long-term corrosion protection and maximum strength
  • Compact modular design with a single access sleeve for easy maintenance
  • Includes tri-link check valves for lowest pressure loss
  • Grooved gear operated butterfly valves with tamper switch
  • Four convenient test cocks
  • Furnished with a gallon per minute meter to detect underground leaks and unauthorized water use
  • Replaceable check disc rubber

Specifications

  • Model: Maxim™ Double Check Detector Backflow Preventer
  • Nominal Size: 3 inch
  • Body Material: Stainless Steel
  • Valve Type: Grooved Gear Operated Butterfly
  • Check Valve Type: Tri-link
  • Maximum Working Pressure: 175 psi (12.06 bar)
  • Meter: Gallon per minute meter included
  • Shutoff Valves: Grooved Gear Butterfly Valves with Tamper Switch
  • Test Cocks: Four
  • Check Disc Material: Replaceable Rubber
  • Installation: Horizontal or Vertical

Dimensions (3 inch)

  • A Dimension: 8 inches (203 mm)
  • B Dimension: 4 inches (101 mm)
  • C Dimension: 12 inches (254 mm)
  • D Dimension: 12 3/8 inches (314 mm)
  • E Dimension: 4 inches (101 mm)
  • F Dimension: 3 inches (76 mm)
  • Standard Tap Size: 1/2 inch

FAQs

What is the primary function of this backflow preventer?

This Maxim™ 3 inch double check detector backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and non-potable water from entering the potable water supply due to backsiphonage or backpressure.

What type of installations is this backflow preventer suitable for?

This backflow preventer assembly is approved for both horizontal and vertical installations, allowing for flexibility in different system layouts.

What material is the body of the backflow preventer made from?

The body is constructed from durable stainless steel, which provides excellent long-term corrosion protection and maximum strength.

Does this assembly include a meter?

Yes, this assembly is furnished with a gallon per minute meter, which is useful for detecting underground leaks and unauthorized water usage.

What is the maximum operating pressure for this device?

The maximum working pressure for this 3 inch Maxim™ double check detector backflow preventer assembly is 175 psi (12.06 bar).
