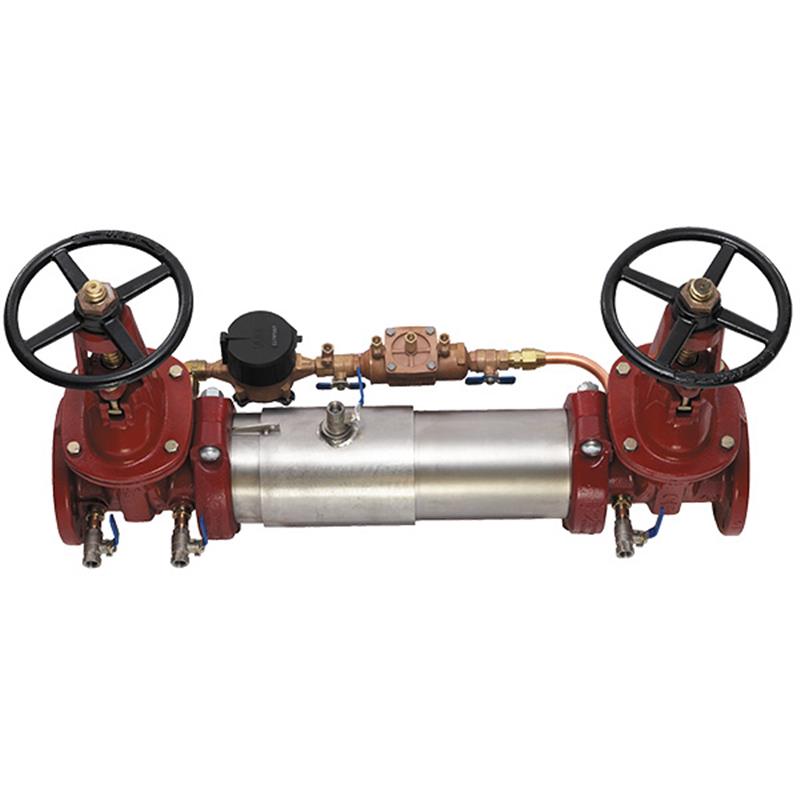

This Maxim™ 3 inch double check detector backflow preventer assembly is designed to protect drinking water supplies from dangerous cross-connections, in accordance with national plumbing codes and water authority requirements. It is primarily used on fire line sprinkler systems and other non-health hazard, non-potable service applications where monitoring for unauthorized water use is necessary.

Features

• Extremely Compact Design: 70% lighter than traditional designs, allowing for smaller vaults and enclosures.
• 304 (Schedule 40) Stainless Steel housing and sleeve provide long-term corrosion protection and maximum strength.
• Patented Tri-Link Check valve assembly offers the lowest pressure loss and drip-tight closure.
• Unmatched Ease of Serviceability: Tri-Link Checks are removable and serviceable without special tools.
• Groove Fittings allow integral pipeline adjustment.
• Furnished with a gallon per minute meter to detect underground leaks and unauthorized water use.
• Available for horizontal, vertical, or N pattern installations.
• Check discs are replaceable with rubber.

Connections

• Features UL/FM flanged outside stem and yoke resilient seated gate valves (OSY) for shutoff.

It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installation, consult local water authority, building, and plumbing codes.
