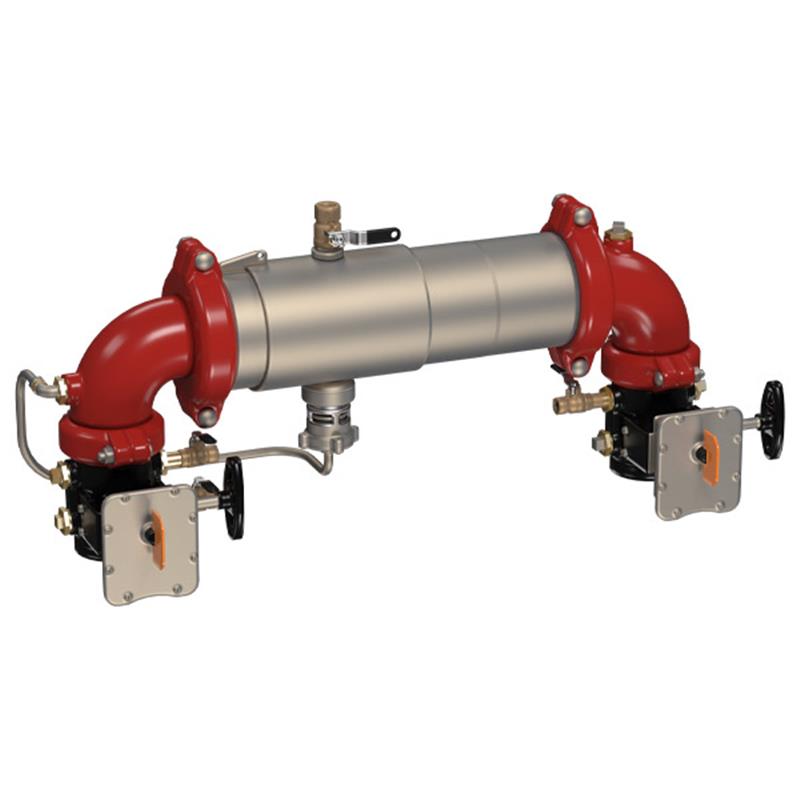

3 M400N-BFG

Item Number: 0191103
1 1
$10,047.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Size: 3 inch
  • Weight: 90.0 lb
  • Housing Material: 304 Stainless Steel
  • Shutoff Valves: Grooved Gear Operated Butterfly with Tamper Switch
  • Reduced Pressure Zone (RPZ) type
  • 70% lighter than traditional designs
  • Extremely compact for small enclosures
  • Torsion spring check modules for easy service
  • Link check modules provide lowest pressure loss

Description

The Ames Maxim™ 3 inch lead free reduced pressure zone backflow preventer assembly prevents reverse flow of fire protection substances and non-potable water into potable supplies. This compact unit, 70% lighter than traditional designs, features a durable 304 stainless steel body and sleeve. It includes grooved gear operated butterfly shutoff valves with tamper switches, torsion spring check modules for easy service, and a bottom mounted stainless steel relief valve. Approved for horizontal N pattern installation, it is ideal for continuous pressure piping applications and cross-connection control. Item number 0191103.

Help Me Connect

Installation and Connections

  • This 3 inch Maxim™ Reduced Pressure Zone Backflow Preventer Assembly is designed for horizontal N pattern installation.
  • The assembly features groove couplings for easy installation and pipe alignment.
  • Ensure the installation is in accordance with the direction of the flow arrow indicated on the assembly.
  • Adequate clearance (minimum 12 inches from lower portion to floor/grade) is required around the valve for inspection, testing, and servicing.
  • Protection from freezing is essential for proper operation.
View full details

Additional Details

This Maxim™ 3 inch lead free reduced pressure zone backflow preventer assembly is engineered to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply.

It provides crucial protection against backsiphonage and backpressure in accordance with national plumbing codes and water authority requirements, suitable for continuous pressure piping applications and health hazard cross-connections.

Key Features

  • Compact Design: Extremely compact and approximately 70% lighter than traditional backflow preventer designs.
  • Robust Construction: Features a 304 (Schedule 40) stainless steel housing and sleeve for durability.
  • Easy Maintenance: Equipped with replaceable check disc rubber and torsion spring check modules for ease of serviceability.
  • Efficient Flow: Link check modules provide the lowest pressure loss for optimal performance.
  • Secure Shutoff: Includes drip tight grooved gear operated butterfly valves with a tamper switch.
  • Relief Valve: Integrated bottom mounted stainless steel pressure relief valve.
  • Installation Flexibility: Approved for horizontal N pattern installation.

NOTICE: The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer. You are required to thoroughly read all installation instructions and product safety information before beginning the installation of this product.

Specifications

  • Product Type: Reduced Pressure Zone Backflow Preventer
  • Series: Maxim™
  • Nominal Size: 3 inch
  • Housing Material: 304 (Schedule 40) Stainless Steel
  • Sleeve Material: 304 (Schedule 40) Stainless Steel
  • Shutoff Valves: Grooved Gear Operated Butterfly Valves with Tamper Switch
  • Check Modules: Torsion Spring, Link Type
  • Relief Valve: Bottom Mounted Stainless Steel
  • Installation Pattern: Horizontal N Pattern
  • Connection Type: Grooved

FAQs

What is the primary function of this backflow preventer assembly?

This backflow preventer is designed to prevent the reverse flow of fire protection substances and non-potable water from entering the potable water supply, protecting against backsiphonage and backpressure.

What materials are used in the construction of this backflow preventer?

The housing and sleeve are constructed from durable 304 (Schedule 40) stainless steel, ensuring longevity and resistance to corrosion.

Can this backflow preventer be installed in any orientation?

This assembly is specifically approved for horizontal N pattern installation. It must be installed in accordance with the direction of the flow arrow for proper operation.

What type of shutoff valves are included with this assembly?

The assembly features drip tight grooved gear operated butterfly valves, which also include a tamper switch for added security and monitoring.

How does this assembly compare in size and weight to traditional backflow preventers?

This Maxim™ assembly boasts an extremely compact design and is approximately 70% lighter than traditional backflow preventer designs, allowing for smaller enclosures and easier handling.
