Torsion spring check modules for ease of serviceability
Groove couplings for easy installation and pipe alignment
70 percent lighter than traditional designs
Link check modules provide lowest pressure loss
Bottom mounted stainless steel relief valve
Description

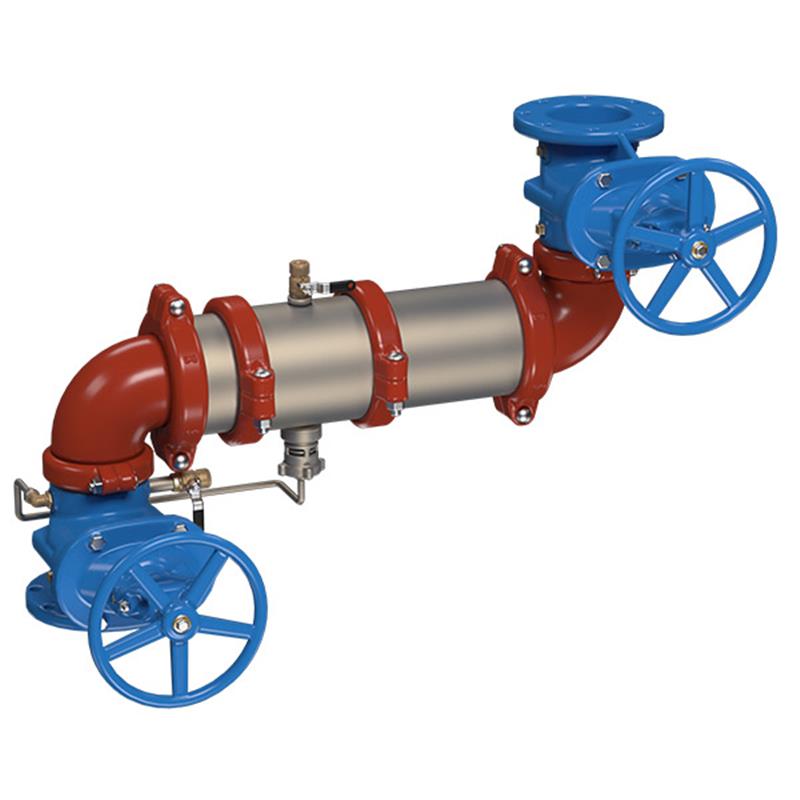

The Ames Fire & Waterworks Maxim M400Z 3 inch Reduced Pressure Zone Backflow Preventer Assembly (RPZ) is engineered to prevent contamination of potable water by backsiphonage or backpressure. Constructed with 304 Schedule 40 stainless steel for durability, it features resilient seated non-rising stem (NRS) shutoff valves and torsion spring check modules. Its extremely compact and lightweight design is 70% lighter than traditional models, allowing for installation in smaller enclosures. Approved for horizontal Z pattern installation, it utilizes groove couplings for straightforward pipe alignment. Item number 0191485.
Help Me Connect
The 3 inch Maxim Reduced Pressure Zone Backflow Preventer Assembly features groove couplings for straightforward installation and pipe alignment. It is designed for horizontal Z pattern installation and connects to matching 3 inch grooved piping systems. Ensure adequate clearance is maintained around the valve for inspection, testing, and servicing.
This Maxim™ 3 inch lead free reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and/or backpressure in accordance with national plumbing codes and water authority requirements.
This assembly is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards. Its extremely compact design and lighter weight than traditional assemblies make it suitable for installations requiring small enclosures and easier handling. It is approved for horizontal Z pattern installation, ensuring proper flow direction.
Components
Stainless steel body with a quick access sleeve
Torsion spring check modules for ease of serviceability and lowest pressure loss
Resilient seated gate valves with non-rising stems (NRS)
Test cocks
Bottom mounted stainless steel relief valve
Features
304 (Schedule 40) stainless steel housing and sleeve
Replaceable check disc rubber
Extremely compact design allows for small enclosures
Groove couplings for easy installation and pipe alignment
What is the primary function of this backflow preventer?
This backflow preventer is designed to prevent the reverse flow of non-potable water, including fire protection substances, into the potable water supply due to backsiphonage or backpressure, as required by plumbing codes.
What materials are used for the main body and sleeve?
The main body and sleeve of this assembly are constructed from durable 304 Schedule 40 stainless steel, ensuring longevity and resistance to corrosion.
How does this backflow preventer contribute to easier installation?
It features an extremely compact design and groove couplings for easy pipe alignment. The assembly is also 70 percent lighter than traditional designs, simplifying handling and installation.
What type of shutoff valves are included with this assembly?
This assembly is equipped with resilient seated gate valves that feature non-rising stems (NRS) for reliable and drip-tight shutoff.
What type of installation pattern is approved for this assembly?
This backflow preventer assembly is approved for horizontal Z pattern installation, provided it is installed in accordance with the direction of the flow arrow and all safety instructions.
