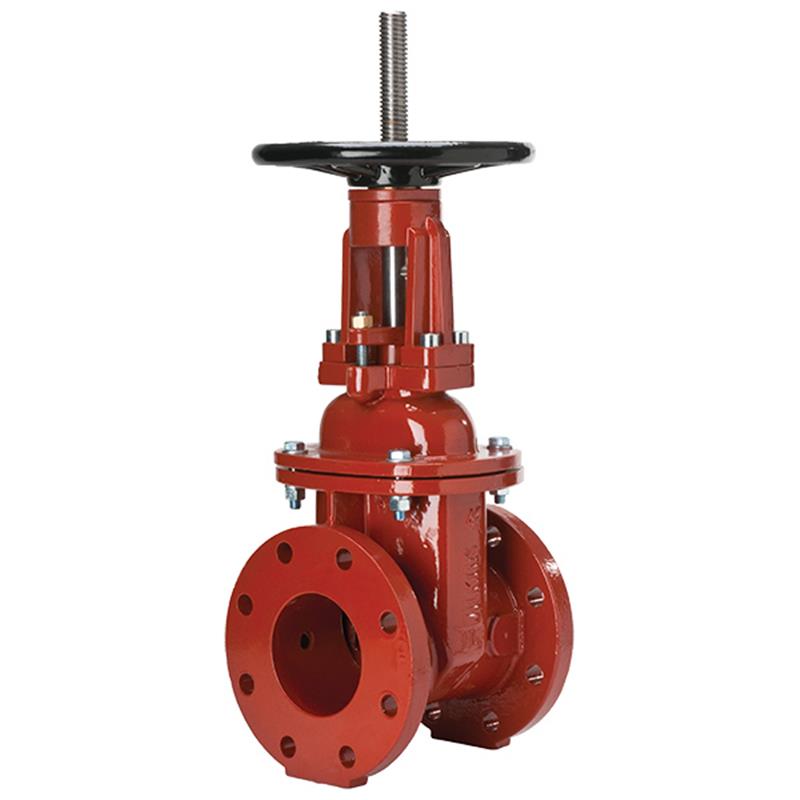

3 OSY GATE VALVE, FLG X FLG
Item Number: 3-48OSY
1
/
of
1
Regular price
$2,296.20
Special Order
When Will it Ship:
Contact for Lead Time
Estimated transit time: 2 to 5 Business Days
Brand - Wilkins
Couldn't load pickup availability
- Valve Type: Resilient Wedge Gate Valve
- Stem Type: Outside Stem & Yoke (OS&Y)
- Nominal Pipe Size: 3 inch
- End Connections: Flanged (ANSI/ASME B16.42 Class 150)
- Maximum Working Water Pressure: 250 PSI
- Body Material: Ductile Iron
- Coating: AWWA C550 Fusion-Bond Epoxy
- Approved for Potable Water, Fire, and Irrigation Systems
Description
Description
The WILKINS Model 480SY 3-inch Resilient Wedge Gate Valve with Outside Stem & Yoke (OS&Y) is engineered for reliable flow control in potable water lines, irrigation systems, waterworks connections, and fire systems. Featuring robust ductile iron construction with an AWWA C550 fusion-bond epoxy coating, this valve ensures durability and corrosion resistance. It offers flanged end connections conforming to ANSI/ASME B16.42 Class 150, making it compatible with standard piping. UL® Listed, C-UL® Listed, and FM® Approved, it meets AWWA C515/C550 and NSF/ANSI/CAN 61/372 standards, providing a maximum working pressure of 250 PSI and temperature of 140°F.
Help Me Connect
Help Me Connect
Connecting Your Gate Valve
- This WILKINS Model 480SY gate valve features flanged end connections.
- The flanges are designed to meet ANSI/ASME B16.42 Class 150 standards, ensuring compatibility with standard flanged piping systems.
- The 3-inch nominal pipe size indicates it is designed to connect to 3-inch piping.
- Secure connections require appropriate gaskets and bolts, sized at 5/8 inch with 1/2-14NPT tap size, 4 per flange.

Collapsible content
Additional Details
The WILKINS Model 480SY is a resilient wedge gate valve with an Outside Stem & Yoke (OS&Y) design, ideal for controlling fluid flow in a variety of systems.
This durable valve is designed for use in potable water lines, irrigation systems, waterworks connections, and fire systems, ensuring reliable operation and system integrity.
Application
- Potable water lines
- Irrigation systems
- Waterworks connections
- Fire systems
Features
- Outside Stem & Yoke (OS&Y) design for visible indication of valve position.
- Fusion-bond epoxy coated body for enhanced corrosion resistance.
- Resilient wedge provides positive shutoff.
- Suitable for a wide range of water temperatures and pressures.
Materials
- Main Body: Ductile Iron ASTM A536 65-45-12
- Covers: Ductile Iron ASTM A536 65-45-12
- Wedge: Ductile Iron ASTM A536 65-45-12 W/EPDM
- Stem: 300 series Stainless Steel
- Internals: Stainless Steel ASTM A276 UNS S42000
- Handwheel: Ductile Iron ASTM A536 65-45-12
- Elastomers: EPDM (FDA approved)
- Fasteners: Zinc plated steel Grade 8.8 / Brass ASTM B584 UNS C83600
Specifications
- Brand: WILKINS
- Model: 48OSY
- Valve Type: Resilient Wedge Gate Valve
- Stem Type: Outside Stem & Yoke (OS&Y)
- Nominal Pipe Size: 3 inch (80 mm)
- End Connections: Flanged
- Maximum Working Water Pressure: 250 PSI
- Maximum Working Water Temperature: 140°F
- Hydrostatic Test Pressure: 500 PSI
- Flanged End Connection Standard: ANSI/ASME B16.42 Class 150
- Body Material: Ductile Iron ASTM A536 65-45-12
- Coating: AWWA C550 compliant fusion-bond epoxy finish
- Stem Material: 300 series Stainless Steel
- Wedge Material: Ductile Iron ASTM A536 65-45-12 W/EPDM
- Elastomer Material: EPDM (FDA approved)
- Overall Length (A): 8 inches (203 mm)
- Flange End-to-End (B): 7.5 inches (191 mm)
- Face-to-Center (C): 10.25 inches (260 mm)
- Height, OS&Y Open (D): 20.25 inches (514 mm)
- Height, OS&Y Closed (D): 17 inches (432 mm)
- Approximate Weight (FXF): 62 lbs (28 kg)
Certificates & Approvals
- AWWA Compliant C515, C-550
- UL® Listed
- C-UL® Listed
- FM® Approved
- Meets NSF/ANSI/CAN 61 and 372 (Less than 0.25% weighted average lead content)
FAQs
What is the primary application for the WILKINS Model 480SY gate valve?
This gate valve is designed for installation on potable water lines, irrigation systems, waterworks connections, and fire systems, offering reliable flow control in these critical applications.
What type of end connections does this 3-inch gate valve have?
This 3-inch WILKINS Model 480SY gate valve is equipped with flanged end connections, manufactured to ANSI/ASME B16.42 Class 150 standards for robust and compatible system integration.
What is the maximum working pressure and temperature for this valve?
The WILKINS Model 480SY gate valve can withstand a maximum working water pressure of 250 PSI and a maximum working water temperature of 140°F.
What materials are used for the main body and wedge of the valve?
The main body of the valve is constructed from Ductile Iron ASTM A536 65-45-12, while the resilient wedge is also Ductile Iron ASTM A536 65-45-12 with EPDM, ensuring durability and a positive shutoff.
Is this valve suitable for potable water applications?
Yes, the WILKINS Model 480SY gate valve meets the requirements of NSF/ANSI/CAN 61 and 372, ensuring it contains less than 0.25% weighted average lead content and is approved for potable water use.
