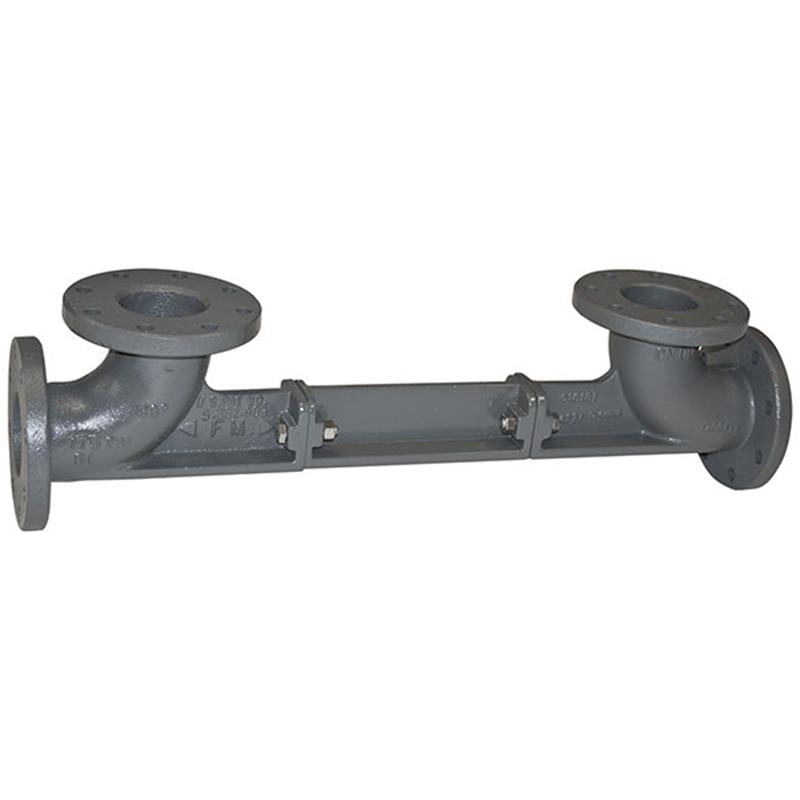

3 WVS-C Flange x Flange RP BFG

Item Number: 0107231
1 1
$1,391.24
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 3 inch
  • Weight: 134.0 lb
  • Connection Type: Flange by Flange
  • Body Material: Ductile Iron A536 GR 65-45-12
  • Coating: Fusion Epoxy Coated (Internal and External)
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 32°F to 140°F
  • Compatibility: Watts 957N BFG and 957N RPDA BFG Series
  • Feature: Eliminates thrust block requirements

Description

This 3 inch Watts WVS Series ductile iron valve setter with flange by flange connections is designed to simplify the installation of Watts N-shape 957N BFG and 957N RPDA BFG backflow preventer assemblies. Constructed from fusion epoxy coated ductile iron, it provides corrosion resistance and eliminates the need for external thrust blocks. It supports a maximum working pressure of 175 psi and operates in temperatures from 32°F to 140°F. The wetted surface contains less than 0.25% lead by weight.

Help Me Connect

This 3 inch Watts WVS Series valve setter is designed for direct installation with Watts N-shape 957N BFG and 957N RPDA BFG backflow preventer assemblies only. It connects via flange by flange connections.

For connecting to your piping system, mechanical joint restraint devices may be used at the pipe connections, depending on local conditions.

View full details

Additional Details

This 3 inch Watts WVS Series valve setter with flange by flange connections is designed to augment the installation of Watts N-shape 957N BFG and 957N RPDA BFG backflow preventer assemblies.

Constructed of fusion epoxy coated ductile iron, this valve setter features an integral ductile iron support between elbows that effectively transfers thrust downstream, thus eliminating the need for thrust block requirements between elbows at the point of installation.

Features

  • Corrosion resistant fusion epoxy coated finish
  • Eliminates the need for thrust blocks or other restraints at the point of installation
  • Integral ductile iron support between elbows

Specifications

  • Size: 3 inch
  • Connection Type: Flange by Flange (FLxFL)
  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Bolts & Nuts Material: Stainless steel (for center joints only; end connection bolts and gaskets not included)
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Flange Standard: ANSI B16.1 Class 125 (Standard)
  • Flange Standard: ANSI AWWA C153 A21.53-88
  • Lead Content: Less than 0.25% by weight (wetted surface)

FAQs

What is the primary use of the Watts WVS Series valve setter?

This valve setter is designed to augment the installation of Watts N-shape 957N BFG and 957N RPDA BFG backflow preventer assemblies by providing integral support and eliminating the need for thrust blocks.

What type of connections does this valve setter feature?

This specific Watts WVS Series valve setter features flange by flange connections, identified as the FLxFL model type.

What material is the Watts WVS valve setter made from and how is it coated?

The valve setter's body is constructed from ductile iron (A536 GR 65-45-12) and is internally and externally coated with a corrosion-resistant fusion epoxy (AWWA C550).

What are the maximum operating pressure and temperature limits for this valve setter?

This valve setter has a maximum working pressure of 175 psi (12.1 bar) and can operate within a temperature range of 32°F to 140°F (0°C to 60°C).

Is this Watts WVS valve setter considered lead-free?

Yes, the wetted surface of this product that contacts consumable water contains less than 0.25% of lead by weight, qualifying it as lead-free.
