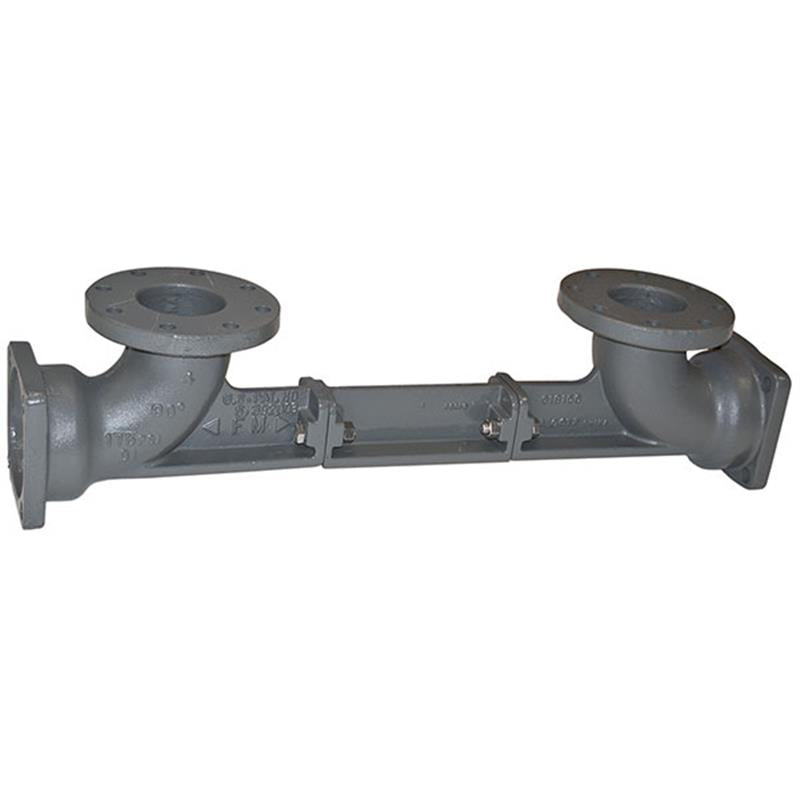

3 WVS-C Flange x Mechanical Joint RP BFG

Item Number: 0107232
1 1
$1,391.24
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 3 inch
  • Weight: 130.0 lb
  • Connection Type: Flange x Mechanical Joint
  • Body Material: Ductile Iron
  • Coating: Fusion Epoxy Coated
  • Maximum Working Pressure: 175 PSI
  • Eliminates thrust block requirements
  • Lead Content: Less than 0.25% by weight
  • Compatible with Watts 957N BFG and 957N RPDA BFG assemblies

Description

This 3 inch Watts Series WVS valve setter features durable ductile iron construction with corrosion-resistant fusion epoxy coating. Designed with flange by mechanical joint connections, it integrates seamlessly with Watts 957N BFG and 957N RPDA BFG backflow preventer assemblies. It eliminates the need for external thrust blocks by utilizing an integral ductile iron support, transferring thrust downstream. Rated for a maximum working pressure of 175 PSI and a temperature range of 32°F to 140°F, this lead-free valve setter provides reliable support for commercial backflow prevention installations.

Help Me Connect

This Watts Series WVS valve setter is specifically designed to integrate with Watts N-shape backflow prevention valves. The Flange x Mechanical Joint connections allow for versatile installation with appropriate piping.

It is intended for use exclusively with Watts 957N BFG and Watts 957N RPDA BFG backflow preventer assemblies.

View full details

Additional Details

This 3 inch ductile iron valve setter is designed to augment the installation of Watts N-shape 957N BFG and 957N RPDA BFG backflow preventer assemblies.

It features an integral ductile iron support between elbows that transfers thrust downstream, eliminating the need for traditional thrust blocks at the point of installation.

Features

  • Corrosion resistant fusion epoxy coated internally and externally for enhanced durability.
  • Eliminates the need for thrust blocks or other restraints at the point of installation.
  • Designed for use with Watts SilverEagle™ N-Shape Assemblies.

Connections

  • One end features a Flange connection.
  • The other end features a Mechanical Joint connection.

Specifications

  • Size: 3 inch (80mm)
  • Body Material: Ductile iron A536 GR 65-45-12
  • Connection Type: Flange x Mechanical Joint
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Bolts & Nuts Material: Stainless steel
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Lead Content: Less than 0.25% by weight

Certificates & Approvals

  • Flanges: ANSI B16.1 Class 125 (Standard)
  • Flanges: ANSI AWWA C153 A21.53-88

FAQs

What is the primary use of this Watts valve setter?

This valve setter is specifically designed to augment the installation of Watts N-shape 957N BFG and 957N RPDA BFG backflow preventer assemblies. It provides stable support and helps transfer thrust.

What are the connection types on this 3-inch valve setter?

This valve setter features a Flange connection on one end and a Mechanical Joint connection on the other. This configuration offers flexibility for various piping setups.

What material is the Watts Series WVS valve setter made from?

The body of this valve setter is constructed from ductile iron (A536 GR 65-45-12). It is also internally and externally coated with fusion epoxy (AWWA C550) for corrosion resistance.

Does this valve setter require external thrust blocks for installation?

No, this valve setter is designed with an integral ductile iron support between the elbows, which transfers thrust downstream. This feature eliminates the need for separate thrust blocks or other restraints at the point of installation.

What are the maximum pressure and temperature ratings for this valve setter?

This valve setter has a maximum working pressure of 175 PSI (12.1 bar). It can operate effectively within a temperature range of 32°F to 140°F (0°C to 60°C).
