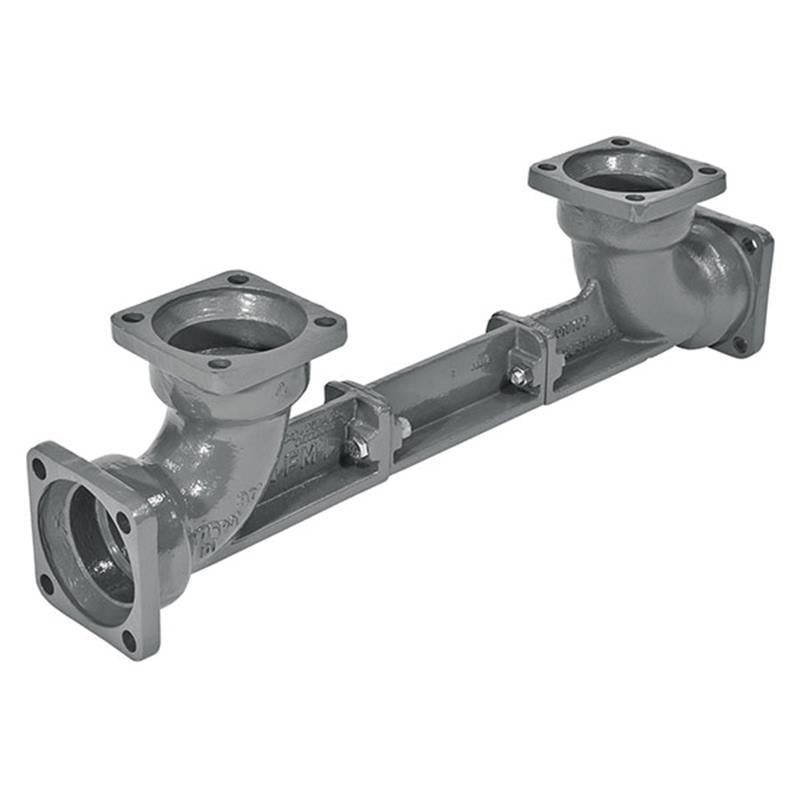

3 WVS-C Mechanical Joint x Mechanical Joint

Item Number: 0107220
1 1
$1,506.86
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 3 inch
  • Weight: 130.0 lb
  • Connection Type: Mechanical Joint x Mechanical Joint
  • Body Material: Ductile Iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 32°F to 140°F
  • Eliminates the need for thrust blocks
  • Lead Free: Yes (wetted surface < 0.25% lead)

Description

The 3 inch Watts WVS valve setter features Mechanical Joint by Mechanical Joint connections, designed to support N-shape backflow preventer assemblies. Constructed from fusion epoxy coated ductile iron, it includes an integral support that transfers thrust downstream, eliminating the need for traditional thrust blocks. This durable valve setter operates up to 175 psi and ensures a reliable, corrosion-resistant installation for commercial applications. Its design simplifies installation by removing the need for additional restraints. Item number 0107220.

Help Me Connect

Connections and Compatibility

This 3 inch valve setter features Mechanical Joint by Mechanical Joint connections. It is specifically designed to augment the installation of N-shape backflow prevention valves. Depending on local conditions, mechanical joint restraint devices may be used at the pipe connections to ensure a secure installation.

View full details

Additional Details

This 3 inch ductile iron valve setter with Mechanical Joint by Mechanical Joint connections is designed to augment the installation of N-shape backflow preventer assemblies.

The valve setter is constructed of fusion epoxy coated ductile iron and features an integral ductile iron support between elbows, which effectively transfers thrust downstream, thus eliminating thrust block requirements between elbows at the point of installation.

Features

  • Corrosion resistant fusion epoxy coated internally and externally.
  • Eliminates the need for thrust blocks or other restraints at the point of installation.
  • Integral ductile iron support transfers thrust downstream.

Specifications

  • Size: 3 inch
  • Connection Type: Mechanical Joint by Mechanical Joint
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)

Materials

  • Body: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Bolts & Nuts: Stainless steel

Certificates & Approvals

  • Flanges: ANSI B16.1 Class 125 (Standard)
  • Flanges: ANSI AWWA C153 A21.53-88

FAQs

What is the primary use of this 3 inch WVS valve setter?

This valve setter is primarily used to augment the installation of N-shape backflow prevention valves, providing stable support and eliminating the need for thrust blocks.

What type of connections does this valve setter have?

This specific model features Mechanical Joint by Mechanical Joint connections, designed for secure and reliable piping connections.

What materials is the 3 inch WVS valve setter constructed from?

The body is constructed from ductile iron (A536 GR 65-45-12) with a fusion epoxy coating (AWWA C550) applied both internally and externally for corrosion resistance. The bolts and nuts are stainless steel.

What is the maximum operating pressure and temperature range for this valve setter?

It has a maximum working pressure of 175 psi (12.1 bar) and can operate within a temperature range of 32°F to 140°F (0°C to 60°C).

Does this valve setter eliminate the need for thrust blocks?

Yes, its design includes integral ductile iron support between the elbows, which effectively transfers thrust downstream and eliminates the need for traditional thrust blocks at the point of installation.
