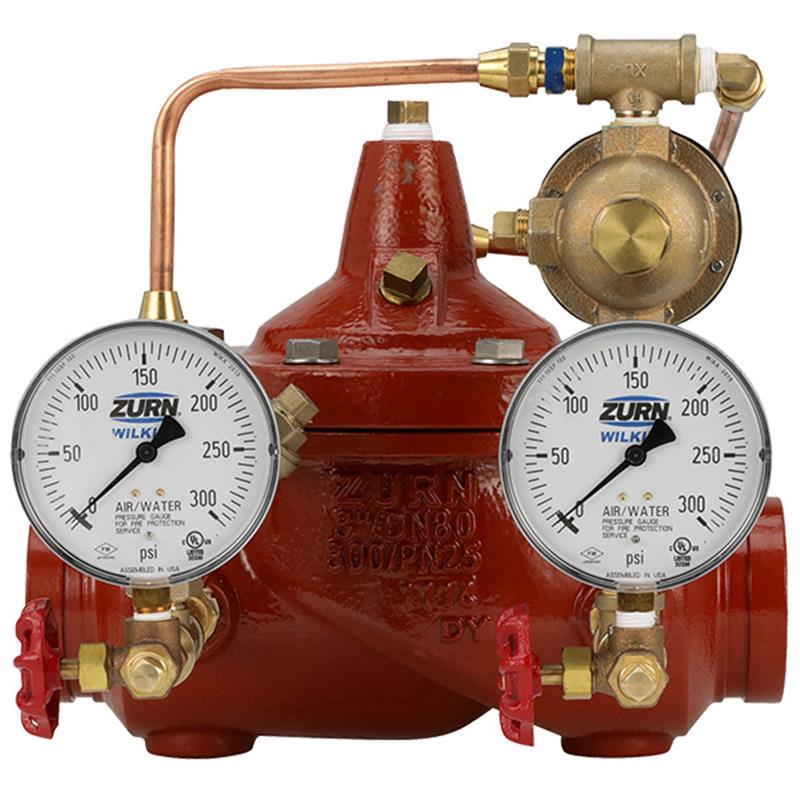

3 ZW209 PRESS REDUC FIRE VLV GLB BODY IPS GRVD SS SEAT 50-165PSI CPR TUBE

Item Number: 3-ZW209FPG
1 1
$7,538.90
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Wilkins
  • Valve Type: Pilot Operated Pressure Reducing
  • Size: 3 inch
  • End Connection: IPS Grooved
  • Body Style: Globe Body
  • Pilot Spring Range: 15-120 PSI
  • Maximum Operating Pressure: 300 PSI
  • Body Material: Ductile Iron ASTM A536
  • Coating: Red Epoxy Coated, FDA Approved
  • Certifications: NSF/ANSI/CAN 61, ANSI/AWWA C530

Description

The Zurn Wilkins Model ZW209 is a 3 inch pilot-operated pressure reducing valve with IPS grooved connections, ideal for fire suppression systems requiring stable downstream pressure. Its ductile iron body is internally and externally coated with corrosion-resistant red epoxy. Standard features include isolation valves, pressure gauges, a "Wye" type strainer, and copper tubing for easy maintenance. This valve ensures constant outlet pressure by modulating flow, preventing downstream damage. Certified to NSF/ANSI/CAN 61 and ANSI/AWWA C530, it meets lead-free requirements for safe and reliable performance. Item number 3-ZW209FPG.

Help Me Connect

End Connections

  • The 3 inch IPS Grooved end connections are designed for secure and efficient installation into grooved piping systems.
View full details

Additional Details

The 3 inch Zurn Wilkins Model ZW209 Pilot Operated Pressure Reducing Valve is designed for critical applications requiring stable downstream pressure from high inlet pressures, such as in Fire Suppression Systems.

This valve features a reactive pilot assembly that modulates the main valve to maintain constant downstream set pressure, automatically sealing shut to prevent damage once the pilot setting is reached. The internal and external red epoxy coating provides excellent corrosion resistance, ensuring durability and longevity.

Features

  • Pilot-operated design ensures stable downstream pressure regulation regardless of flow rate changes.
  • Equipped with isolation valves and pressure gauges for simplified maintenance and repair.
  • Red epoxy coating applied internally and externally for superior corrosion protection.
  • Main valve modulates between closed and open positions to maintain consistent pressure.
  • Pilot assembly reacts to changes in downstream pressure, sealing shut to prevent damage.
  • Designed for minimal pressure loss through the valve.

Construction

  • Main Valve Body: Ductile Iron ASTM A536
  • Main Valve Bonnet: Ductile Iron ASTM A536
  • Seat: Stainless Steel
  • Disc: Buna-N Rubber
  • Diaphragm: Nylon Reinforced Buna-N
  • Stem: Stainless Steel
The closing speed control (optional) on this valve should always be open at least three (3) turns off its seat.

Specifications

Valve Details

  • Model: ZW209
  • Size: 3 inch
  • End Connection: IPS Grooved
  • Body Style: Globe Body, Full Port
  • Pilot Spring Range: 15-120 PSI
  • Minimum Inlet Pressure: 10 PSI
  • Maximum Operating Temperature: 140°F
  • Minimum Operating Temperature: 33°F

Materials

  • Main Valve Body: Ductile Iron ASTM A536
  • Main Valve Bonnet: Ductile Iron ASTM A536
  • Disc Guide: Stainless Steel
  • Seat: Stainless Steel
  • Disc: Buna-N Rubber
  • Diaphragm: Nylon Reinforced Buna-N
  • Stem: Stainless Steel
  • Spring: Stainless Steel
  • Coating: Epoxy Coated, FDA Approved
  • Pilot System Tubing: Copper
  • Pilot System Fittings: Brass

Pressure Rating

  • Grooved Connection Maximum Pressure: 300 PSI (ANSI Class 300)

Certificates & Approvals

  • Standards Compliance: ANSI/AWWA C530
  • Certification: NSF/ANSI/CAN 61 (0.25% MAX. WEIGHTED AVERAGE LEAD CONTENT)
  • Lead Free: Yes

FAQs

What is the primary application of the Zurn Wilkins Model ZW209 valve?

The Zurn Wilkins Model ZW209 is primarily designed for applications requiring the reduction of high inlet pressures to safe and stable outlet pressure, particularly suitable for fire suppression systems.

What is the maximum operating pressure for this 3 inch ZW209 valve?

This 3 inch ZW209 valve with IPS grooved connections has a maximum operating pressure of 300 PSI for ANSI Class 300 applications.

What materials are used for the main valve body and seat?

The main valve body is constructed from Ductile Iron ASTM A536, and the seat is made from Stainless Steel. The disc is Buna-N Rubber.

What is the temperature rating for the ZW209 valve?

The ZW209 valve is rated for water temperatures ranging from 33°F (1°C) to 140°F (60°C).

Does this valve include pressure gauges and isolation valves?

Yes, the Zurn Wilkins Model ZW209 comes standard with inlet and outlet pressure gauges, a "Wye" type strainer, and isolation valves for convenient maintenance and repair.
