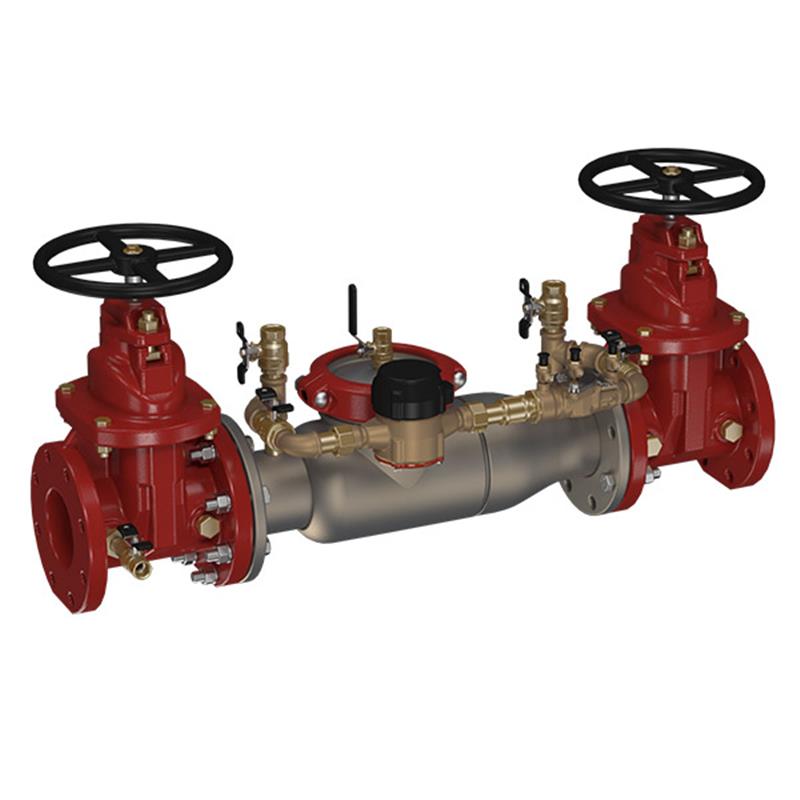

4 3000SS-NRS-GPM

Item Number: 0690494
1 1
$10,439.24
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Product Size: 4 inch
  • Weight: 305.0 lb
  • Body Material: 300 Series Stainless Steel
  • Maximum Operating Pressure: 175 PSI
  • Temperature Range: 33°F – 110°F
  • Features Cam-Check Assembly for low head loss
  • Stainless steel construction for corrosion protection
  • Includes 5/8" x 3/4" bronze meter (GPM or CFM)
  • Approved for horizontal or vertical "flow up" installation

Description

This 4 inch AMES 3000SS Double Check Detector Backflow Preventer Assembly is designed for fire protection systems to prevent the reverse flow of non-potable water and substances like glycerin into the potable water supply. Its stainless steel body offers long-term corrosion protection and reduces installation weight. Features Cam-Check valves for low head loss, non-rising stem shutoffs, and a 5/8" x 3/4" bronze meter to detect leaks and unauthorized water use. It can be installed horizontally or vertically for versatile application.

Help Me Connect

Connections & Compatibility

This 4 inch double check detector backflow preventer is specifically designed for fire protection systems to prevent the backflow of non-potable water and fire protection substances into the potable water supply. It is suitable for cross-connections identified as non-health hazards. The assembly features non-rising stem resilient seated gate valves and captured spring check valves, along with four test cocks for verification.

View full details

Additional Details

This 4 inch double check detector backflow preventer assembly is designed for use in accordance with water utility non-health hazard containment requirements, preventing the reverse flow of fire protection system substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage or backpressure.

Primary Use

  • Designed for fire protection systems to prevent reverse flow of substances like glycerin wetting agents, stagnant water, and non-potable water from entering the potable water supply.
  • Ideal for cross-connections identified as non-health hazards, such as on fire protection systems and from other contaminants at the service line entrance.

Construction & Features

  • Features a stainless steel body, making it half the weight of competitive designs for easier installation and reduced shipping costs.
  • Includes Cam-Check Assembly valves for low head loss.
  • Equipped with non-rising stem resilient seated gate valves and captured spring check valves.
  • A single top access cover with a two-bolt grooved style coupling allows for ease of maintenance without special tools.
  • Designed for compact construction, accommodating smaller vaults and enclosures.
  • Furnished with a 5/8" x 3/4" bronze meter (gpm or cfm) to detect underground leaks and unauthorized water use.
  • Can be installed in a horizontal or vertical "flow up" position.
  • Stainless steel construction provides long-term corrosion protection and maximum strength.

Specifications

  • Product Size: 4 inch
  • Body Material: 300 Series stainless steel
  • Internal Metal Parts: 300 Series stainless steel
  • Check Assembly: Noryl® Flange dimension in accordance with AWWA Class D
  • Maximum Working Pressure: 175 psi (12 bar)
  • Temperature Range: 33°F – 110°F (0.5°C – 43°C)
  • Meter: 5/8" x 3/4" bronze (gpm or cfm)
  • Installation Position: Horizontal or vertical "flow up"

Certificates & Approvals

  • ASSE 1048
  • AWWA C510-92
  • CSA B64.5
  • UL 1469
  • USC Foundation for Cross-Connection Control and Hydraulic Research

FAQs

What is the primary use of this backflow preventer?

This 4 inch double check detector backflow preventer assembly is primarily used in fire protection systems to prevent the reverse flow of non-potable water and fire protection substances into the potable water supply, especially in non-health hazard containment situations.

What is the main body material of this assembly?

The main valve body and internal metal parts are manufactured from 300 Series stainless steel, providing long-term corrosion protection and maximum strength.

What are the maximum operating pressure and temperature range?

This backflow preventer has a maximum working pressure of 175 psi (12 bar) and can operate within a temperature range of 33°F – 110°F (0.5°C – 43°C).

Can this backflow preventer be installed vertically?

Yes, this assembly is approved for installation in either a horizontal or a vertical "flow up" position, offering flexibility for different site requirements.

Does this assembly include a meter?

Yes, it is furnished with a 5/8" x 3/4" bronze meter (gpm or cfm) designed to detect underground leaks and unauthorized water use.
