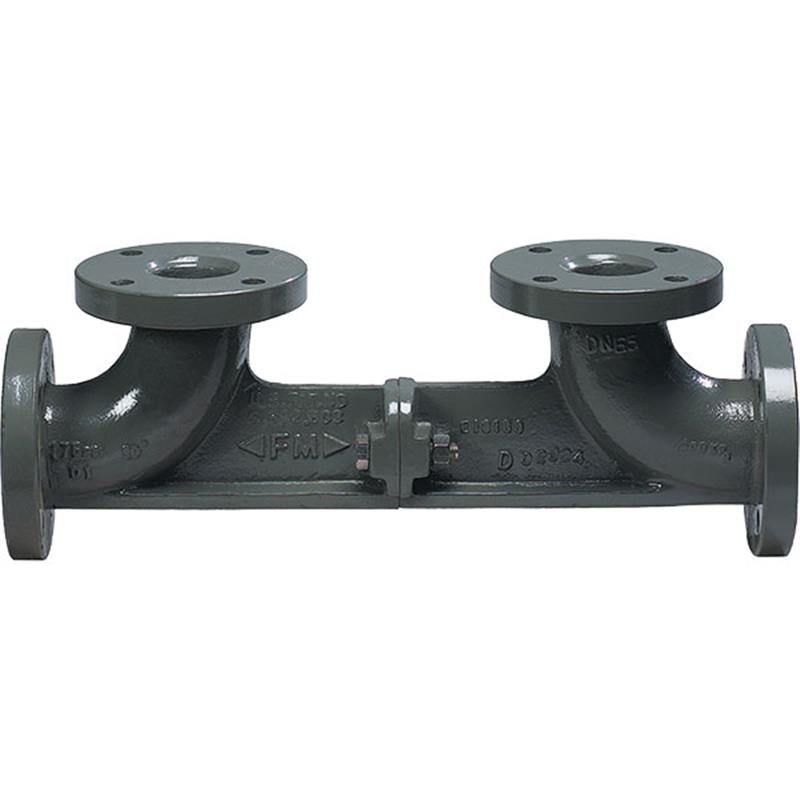

4 611-Flange x Flange

Item Number: 905206
1 1
$1,367.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Connection Size: 4 inch
  • Weight: 113.0 lb
  • Connection Type: Flange x Flange
  • Body Material: Ductile Iron
  • Coating: Fusion Epoxy Coated (Internal and External)
  • Maximum Operating Pressure: 175 PSI
  • Temperature Range: 32°F to 140°F
  • Eliminates Thrust Blocks
  • Lead Free Construction

Description

The 4 inch FEBCO 611 Series valve setter provides structural support for backflow prevention valve installations, featuring flange x flange connections. Constructed from fusion epoxy coated ductile iron with stainless steel fasteners, it eliminates the need for thrust blocks by transferring downstream thrust. This Lead Free product is rated for a maximum working pressure of 175 PSI and a temperature range of 32°F to 140°F, ideal for MasterSeries N-pattern backflow preventers. Item number 905206.

Help Me Connect

This 4 inch valve setter is specifically designed to augment the installation of MasterSeries® N-pattern backflow preventer valves, including Series LF870V, LF876VST, and LF880V.

It features flanged connections, which require flange bolts and gaskets for installation. Please note that flange bolts and gaskets are not included with this valve setter.

View full details

Additional Details

This 4 inch flange by flange valve setter is constructed of fusion epoxy coated ductile iron. It is designed to augment the installation of specific backflow prevention valves by providing structural support.

Key Features

  • Corrosion resistant fusion epoxy coated for enhanced longevity and durability.
  • Eliminates the need for thrust blocks or other restraints at the point of installation by transferring thrust downstream through integral ductile iron supports between elbows.
  • Features Lead Free* construction, with wetted surfaces containing less than 0.25% lead by weight to comply with Lead Free installation requirements.

Specifications

  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Bolts & Nuts: Stainless steel
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Connection Size: 4 inch

Certificates & Approvals

  • Flanges: ANSI AWWA C153 A21.53-88

FAQs

What specific backflow preventers is this valve setter compatible with?

This valve setter is compatible with MasterSeries N-pattern backflow preventer valves, including the LF870V, LF876VST, and LF880V series.

What is the primary benefit of using this valve setter?

The primary benefit is that it eliminates the need for traditional thrust blocks by providing integral ductile iron support that transfers thrust downstream, simplifying installation.

What materials are used in the construction of this valve setter?

It is constructed from a ductile iron body with internal and external fusion epoxy coating, and features stainless steel bolts and nuts.

What are the pressure and temperature limits for this valve setter?

The maximum working pressure is 175 PSI, and the temperature range is 32°F to 140°F.

Is this valve setter considered Lead Free?

Yes, its wetted surfaces that contact consumable water contain less than 0.25% of lead by weight, meeting Lead Free installation requirements.
