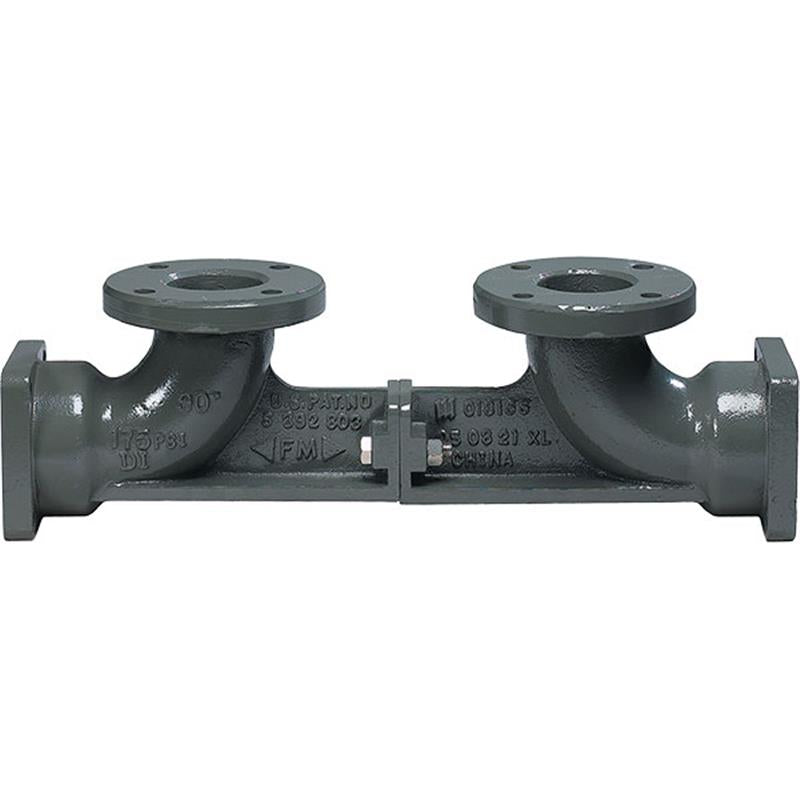

4 611-Mechanical Joint x Flange

Item Number: 905200
1 1
$1,367.34
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 4 inch (100 mm)
  • Weight: 112.0 lb
  • Connection: Mechanical Joint x Flange
  • Body Material: Ductile Iron
  • Coating: Fusion Epoxy Coated (AWWA C550)
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 32°F to 140°F
  • Fasteners: Stainless Steel
  • Lead Free Construction

Description

This 4 inch FEBCO 611 Series Valve Setter, SKU 905200, is a mechanical joint by flange unit crafted from fusion epoxy coated ductile iron. It is engineered to simplify the installation of FEBCO MasterSeries N-pattern backflow preventer valves by providing integral support between elbows, thereby eliminating the need for thrust blocks. With a maximum working pressure of 175 PSI and stainless steel fasteners, this valve setter offers robust, corrosion-resistant performance. Its Lead Free construction ensures compliance with health and safety standards. Ideal for secure, efficient backflow preventer installations.

Help Me Connect

Compatibility

This FEBCO 611 Series Valve Setter is specifically designed to augment the installation of FEBCO MasterSeries N-pattern backflow preventer valves, including the LF870V, LF876VST, and LF880V series. It features a mechanical joint by flange connection for integration into piping systems.

Connections

  • The mechanical joint side is designed for standard mechanical joint pipe connections.
  • The flange side connects to ANSI 150 pound flanged connections.
  • Mechanical joint restraint devices may be used at pipe connections, depending on local conditions and local governing authorities.
View full details

Additional Details

This 4 inch valve setter features a mechanical joint by flange connection and is constructed of fusion epoxy coated ductile iron. It is designed to augment the installation of FEBCO MasterSeries N-pattern backflow preventer valves.

The valve setter's integral ductile iron supports between elbows effectively transfer thrust downstream, eliminating the need for traditional thrust blocks. Its construction ensures compliance with Lead Free* installation requirements.

Key Features

  • Corrosion resistant fusion epoxy coated internally and externally (AWWA C550).
  • Eliminates thrust blocks or other restraints at the point of installation.
  • Integral ductile iron support between elbows transfers thrust downstream.
  • Features Lead Free* construction to comply with installation requirements.
  • Equipped with stainless steel bolts & nuts.
  • ANSI 150 pound flanged connections.
  • Flanges conform to ANSI AWWA C153 A21.53-88.

Important Note

  • Mechanical joint accessories, flange bolts, and gaskets are not included (except for the center joint).

Specifications

  • Product Type: Valve Setter
  • Size: 4 inch (100 mm)
  • Connection Type: Mechanical Joint x Flange
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)

Materials

  • Body Material: Ductile Iron A536 GR 65-45-12
  • Coating: Fusion Epoxy Coated (Internal and External, AWWA C550)
  • Bolts & Nuts: Stainless Steel

Dimensions (Nominal)

  • Dimension A: 24 inches (610 mm)
  • Dimension B: 14 inches (356 mm)
  • Dimension C: 5 inches (127 mm)
  • Weight: 96 lbs (44 kgs)

Certificates & Approvals

  • Flanges: ANSI AWWA C153 A21.53-88

FAQs

What is the primary purpose of the FEBCO 611 Series Valve Setter?

It is designed to simplify and augment the installation of FEBCO MasterSeries N-pattern backflow preventer valves by providing integral support and eliminating the need for thrust blocks.

What is the maximum operating pressure for this 4-inch valve setter?

The maximum working pressure for this unit is 175 PSI (12.1 bar).

What material is the body of the valve setter made from, and how is it protected?

The body is constructed from ductile iron A536 GR 65-45-12 and is protected with a fusion epoxy coating, applied internally and externally, conforming to AWWA C550.

Are mechanical joint accessories, flange bolts, and gaskets included with the valve setter?

No, mechanical joint accessories, flange bolts, and gaskets are not included with the unit, except for the center joint.

What type of connections does this valve setter have?

This specific valve setter features a mechanical joint on one side and an ANSI 150 pound flanged connection on the other.
