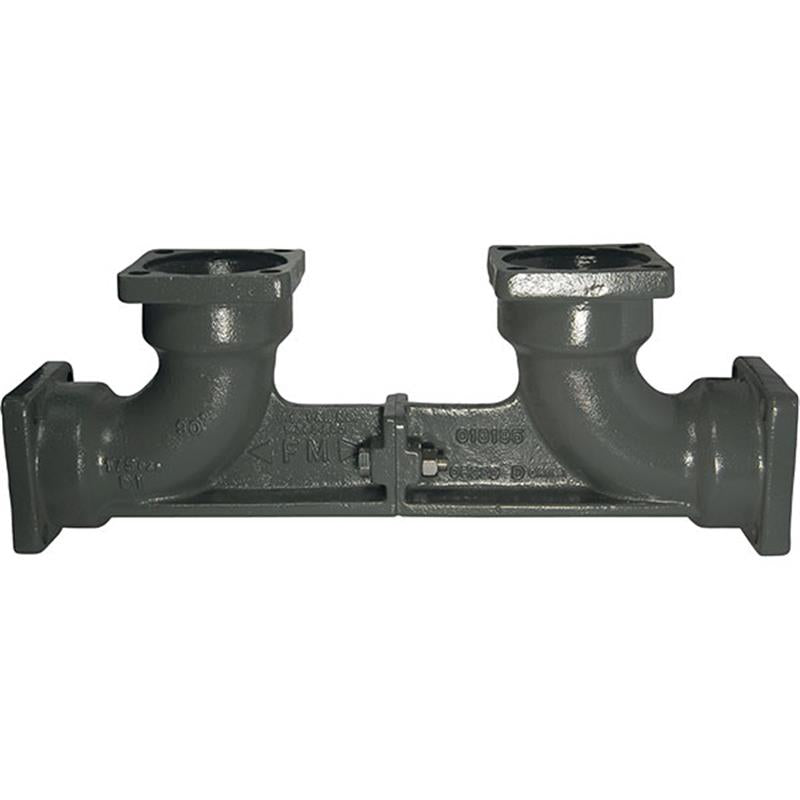

4 611-Mechanical Joint x Mechanical Joint

Item Number: 905330
1 1
$1,367.34
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Nominal Size: 4 inch (100mm)
  • Weight: 109.0 lb
  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Connections: Mechanical Joint x Mechanical Joint
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Lead Free* construction (less than 0.25% lead by weight)
  • Eliminates the need for thrust blocks at installation

Description

The FEBCO 611 Series 4 inch valve setter features mechanical joint connections, ideal for augmenting the installation of MasterSeries "N" pattern backflow prevention valves like LF870V, LF876VST, and LF880V. Constructed from fusion epoxy coated ductile iron with stainless steel fasteners, it offers excellent corrosion resistance. This Lead Free* valve setter is designed to eliminate thrust block requirements between elbows, ensuring a streamlined installation. It operates at a maximum working pressure of 175 psi across a 32°F to 140°F temperature range. Item number 905330.

Help Me Connect

The FEBCO 611 Series Valve Setter connects via mechanical joint on both ends. It is specifically designed for use with MasterSeries "N"-pattern backflow preventer valves, including models such as LF870V, LF876VST, and LF880V. The integral ductile iron support helps align and secure the backflow preventer in place without external thrust blocks.

Mechanical joint accessories, flange bolts, and gaskets are not included for connecting to the main pipeline; these must be sourced separately. Only the center joint components are supplied.

View full details

Additional Details

This 4 inch FEBCO 611 Series Valve Setter with mechanical joint connections is designed to augment the installation of MasterSeries "N" pattern backflow prevention valves, specifically models LF870V, LF876VST, and LF880V.

Construction & Features

  • Constructed of fusion epoxy coated ductile iron for superior corrosion resistance, both internally and externally.
  • Integral ductile iron support between elbows effectively transfers thrust downstream, thereby eliminating the need for thrust blocks or other restraints at the point of installation.
  • Features Lead Free* construction to comply with installation requirements, ensuring wetted surfaces contain less than 0.25% lead by weight.
  • Flanges are compliant with ANSI AWWA C153 A21.53-88.

Specifications

  • Nominal Size: 4 inch (100mm)
  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Bolts & Nuts: Stainless steel
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Connections: Mechanical Joint x Mechanical Joint
  • Lead Free Compliance: Wetted surfaces contain less than 0.25% lead by weight

FAQs

What is the primary purpose of the FEBCO 611 Series Valve Setter?

This valve setter is designed to augment the installation of MasterSeries "N" pattern backflow prevention valves, specifically models like the LF870V, LF876VST, and LF880V. It helps eliminate the need for thrust blocks between elbows.

What is the maximum operating pressure and temperature range for this valve setter?

The maximum working pressure for this 4-inch valve setter is 175 psi (12.1 bar). It can operate effectively within a temperature range of 32°F to 140°F (0°C to 60°C).

Is the FEBCO 611 Series Valve Setter compliant with Lead Free requirements?

Yes, this valve setter features Lead Free* construction. This means that the wetted surfaces which come into contact with consumable water contain less than 0.25% lead by weight, complying with Lead Free installation requirements.

What materials are used in the construction of this valve setter?

The body is constructed from durable ductile iron (A536 GR 65-45-12) and is fusion epoxy coated both internally and externally (AWWA C550) for corrosion resistance. It also uses stainless steel for the bolts and nuts.

Are installation accessories like bolts and gaskets included with the valve setter?

No, mechanical joint accessories, flange bolts, and gaskets are not included with this valve setter. Only the center joint components are provided.
