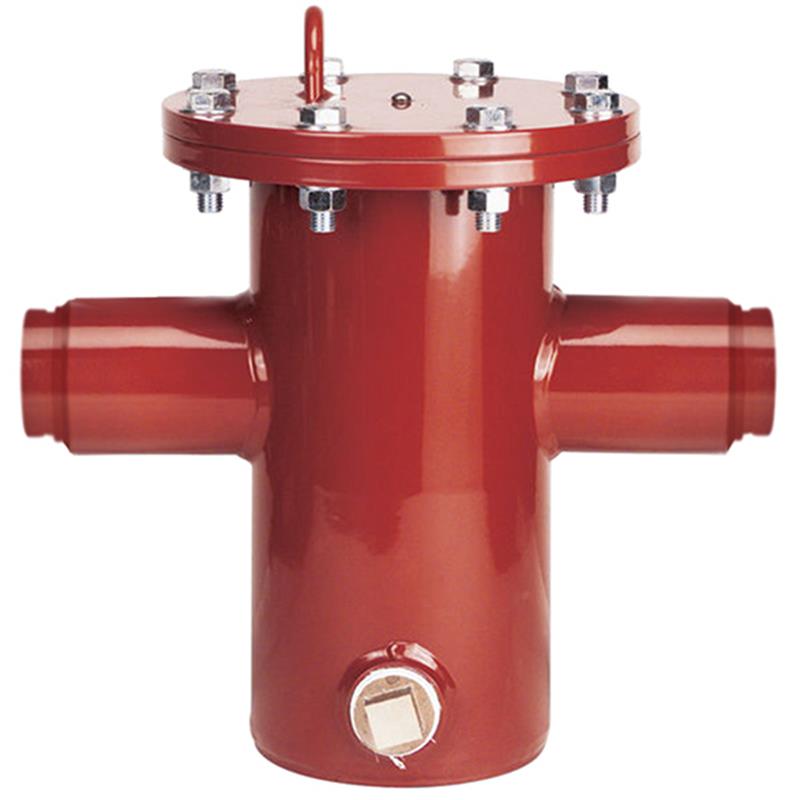

4 7001-1-Clean Out-Flange x Flange

Item Number: 0690893
1 1
$8,342.24
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • 4 inch (100mm) pipe size
  • Weight: 160.0 lb
  • Epoxy coated fabricated steel body
  • Flange x flange connections
  • One cleanout port
  • 304 stainless steel strainer element
  • Maximum Working Pressure: 175 PSI
  • CULUS Listed 321, FM Approved Class 5551
  • Designed for non-potable fire service applications

Description

The Ames Fire & Waterworks Series 7001 is a 4 inch fire service strainer designed to protect water spray systems from clogging by trapping foreign particles. Its epoxy-coated fabricated steel body features flange x flange connections and a single cleanout port for easy maintenance. The strainer element is made from 304 stainless steel with .25 inch perforations, capable of trapping material 1/4 inch diameter or larger. It is UL Listed and FM Approved, ensuring reliability for non-potable fire protection applications. With a maximum working pressure of 175 PSI and temperature resistance up to 140°F, it offers robust performance. Item number 0690893.

Help Me Connect

This 4 inch fire service strainer features flange x flange connections. It is designed to be installed upstream of other fire system devices such as meters, backflow preventers (detector check valves), and flow alarms to protect them from damage due to large particles.

View full details

Additional Details

This 4 inch Ames Fire & Waterworks Series 7001 fire service strainer is designed to protect water spray fire systems from clogging due to foreign particles. It is typically installed upstream of devices like meters and backflow preventers to prevent damage from large particles.

Features

  • Epoxy coated fabricated steel body and cover for durability.
  • Flange x Flange connections for secure installation.
  • One cleanout port facilitates easy maintenance.
  • Includes a large solids trap to minimize screen blockage.
  • Equipped with a 304 stainless steel strainer element with .25 inch diameter perforations.
  • Filter can be removed for replacement/repair without removing the body from the line.
  • A flush outlet is provided.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States.

Specifications

  • Body & Cover Material: Fusion-bonded epoxy coated steel
  • Screen Material: 304 stainless steel
  • Screen Perforation Diameter: .25 inch
  • Clean-Out Plug Material: Brass or Bronze
  • Flange Standard: AWWA Class "D"
  • Pipe Size: 4 inch (100mm)
  • Nominal Rated Flow: 600 GPM (2280 LPM)
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Maximum Water Temperature: 140°F (60°C)
  • Minimum Friction Loss (Clean Filter): 3 PSI (21 kPa)
  • Maximum Friction Loss (Plugged Filter): 10 PSI (69 kPa)
  • Shipping Weight: 120 lbs (54 kg)

Certificates & Approvals

  • CULUS Listed 321
  • FM Approved Class 5551

FAQs

What is the primary use of the Ames Series 7001 fire service strainer?

The primary use is to protect water spray fire suppression systems from clogging by trapping foreign particles, ensuring the system operates effectively.

What materials are used for the body and screen of this strainer?

The body and cover are made from fusion-bonded epoxy coated steel, while the strainer element is 304 stainless steel with .25 inch diameter perforations.

What is the maximum operating pressure and temperature for this 4 inch strainer?

This strainer has a maximum working pressure of 175 PSI (12.1 bar) and can handle water temperatures up to 140°F (60°C).

Is this strainer suitable for potable water systems?

No, it is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. It is designed for non-potable fire service applications.

What kind of connections does this 4 inch strainer have?

This 4 inch Series 7001 strainer features flange x flange connections, designed for secure integration into fire protection piping systems.
