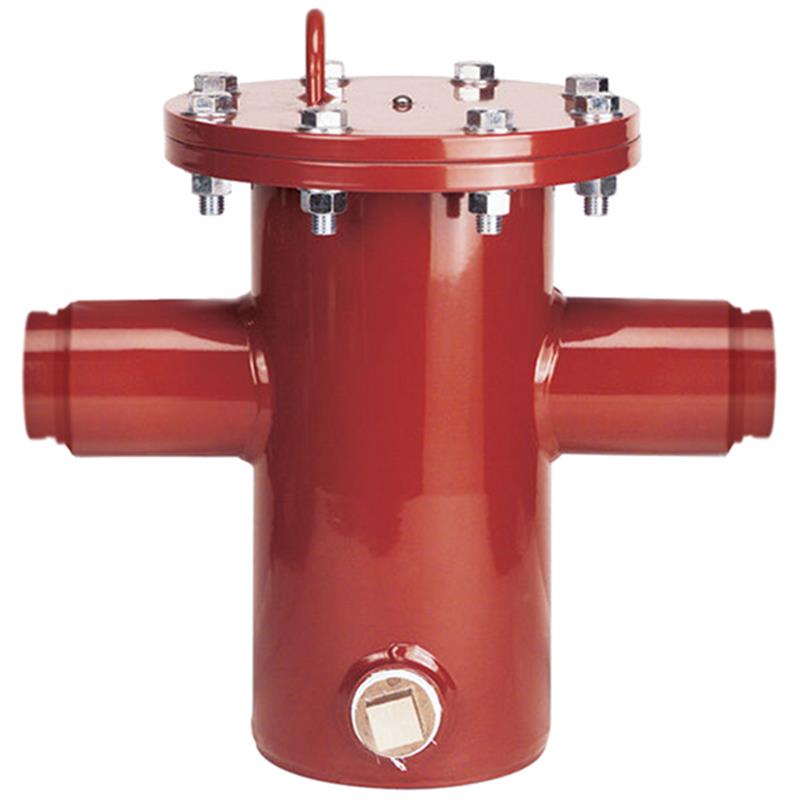

4 7001-1-Clean Out-Groove x Groove

Item Number: 0690976
1 1
$8,342.24
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Pipe Size: 4 inch
  • Weight: 112.0 lb
  • Connection Type: Groove x Groove
  • Cleanout Ports: 1
  • Body Material: Epoxy Coated Steel
  • Strainer Screen Material: 304 Stainless Steel
  • Maximum Operating Pressure: 175 PSI
  • Maximum Water Temperature: 140°F
  • Approved: UL Listed, FM Approved

Description

The 4 inch Ames Fire & Waterworks Series 7001 fire service strainer is designed to protect water spray systems and critical fire system devices from clogging by foreign particles. This strainer features an epoxy-coated steel body with groove x groove connections and one cleanout port for easy maintenance. Inside, a 304 stainless steel strainer element with .25 diameter perforations effectively traps debris. It is rated for a maximum working pressure of 175 psi and a maximum water temperature of 140°F. UL Listed and FM Approved, this strainer ensures reliable performance in non-potable fire protection applications, safeguarding downstream equipment.

Help Me Connect

This Ames Fire & Waterworks Series 7001 strainer features grooved connections on both inlet and outlet ends, designed for use with compatible 4 inch grooved piping and fittings. Grooved connections provide a secure, leak-tight seal through the use of mechanical couplings, allowing for efficient installation and maintenance without the need for welding or threading.

View full details

Additional Details

This 4 inch Ames Fire & Waterworks Series 7001 fire service strainer is designed for non-potable water spray systems to protect against clogging from foreign particles.

It is typically installed upstream of critical fire system devices such as meters, backflow preventers, and flow alarms to prevent damage caused by large debris.

Features

  • Epoxy coated fabricated steel body for durability.
  • Groove x groove connections for secure installation.
  • Equipped with one cleanout port for maintenance.
  • Features a large solids trap to minimize screen blockage.
  • Internal strainer element is made of 304 stainless steel with .25 diameter perforations.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

Specifications

  • Size: 4 inch
  • Connection Type: Groove x Groove
  • Cleanout Ports: 1
  • Body & Cover Material: Fusion-bonded epoxy coated steel
  • Screen Material: 304 stainless steel
  • Screen Perforation: .25 diameter
  • Clean-Out Plug Material: Brass or Bronze
  • Groove Standard: AWWA C606
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Maximum Water Temperature: 140°F (60°C)

Certificates & Approvals

  • CULUS Listed 321
  • FM Approved Class 5551

FAQs

What is the primary purpose of this 4 inch fire service strainer?

This 4 inch Ames Fire & Waterworks Series 7001 fire service strainer is designed for non-potable water spray systems to protect against clogging from foreign particles. It safeguards critical downstream devices like meters and backflow preventers.

What type of connections does this strainer utilize?

This strainer features groove x groove connections on both the inlet and outlet. These connections are designed for mechanical coupling with compatible 4 inch grooved piping or fittings.

Can this strainer be used for drinking water systems?

No, this product is specifically for non-potable fire protection applications. It is illegal to use this product in plumbing systems providing water for human consumption in the United States.

What are the maximum operating pressure and temperature ratings?

The strainer has a maximum working pressure of 175 psi (12.1 bar). It is rated for water temperatures up to 140°F (60°C).

What materials are used for the body and strainer element?

The body and cover are constructed from fusion-bonded epoxy coated steel for durability and corrosion resistance. The internal strainer element is 304 stainless steel with .25 diameter perforations.
