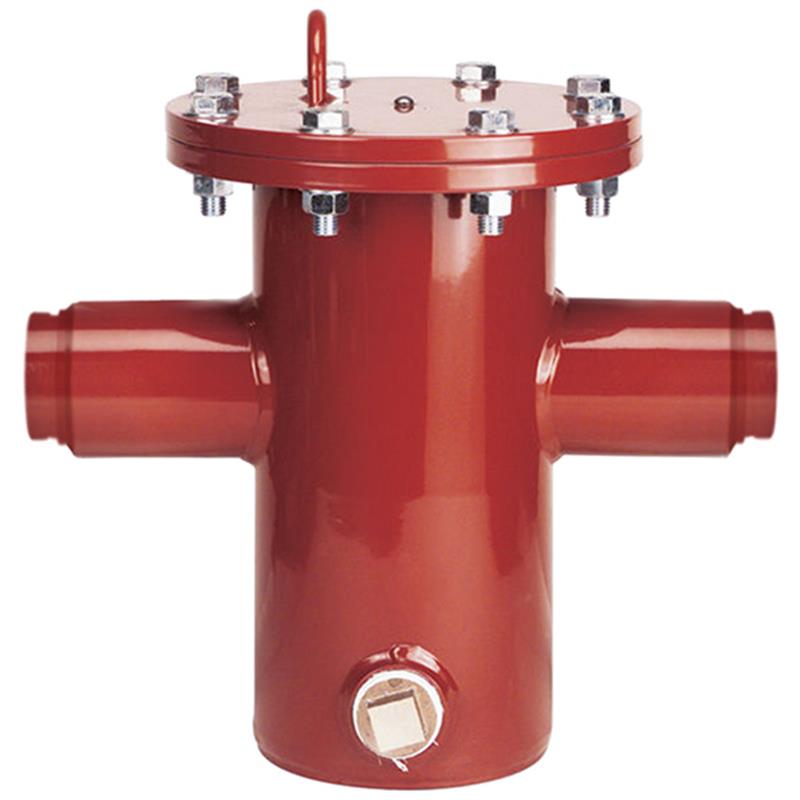

4 7002-2-Clean Outs-Flange x Flange

Item Number: 0691004
1 1
$8,342.24
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Pipe Size: 4 inch (100mm)
  • Weight: 158.0 lb
  • Body Material: Fusion-bonded epoxy coated steel
  • Screen Material: 304 stainless steel
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Maximum Water Temperature: 140°F (60°C)
  • Connections: Flange x Flange
  • Cleanout Ports: Two
  • Certifications: UL Listed 321, FM Approved Class 5551

Description

The 4 inch Ames Fire & Waterworks Series 7002 fire service strainer protects water spray systems from clogging by trapping foreign materials 1/4 inch or larger. Featuring a fusion-bonded epoxy coated steel body and 304 stainless steel screen, it ensures system integrity for non-potable applications. This strainer is equipped with two cleanout ports for easy maintenance and offers robust performance with a maximum working pressure of 175 psi. It is UL Listed 321 and FM Approved Class 5551, ideal for critical fire protection installations. Item number 0691004.
View full details

Additional Details

This 4 inch Ames Fire & Waterworks Series 7002 fire service strainer is designed for use in non-potable water spray systems to protect against clogging. It traps foreign material 1/4 inch diameter or larger, safeguarding devices like meters, backflow preventers, and flow alarms from damage by large particles.

The strainer features an epoxy-coated fabricated steel body with flange x flange connections and two cleanout ports.

Features

  • Epoxy coated fabricated steel strainer body
  • Flange x flange connections
  • Two cleanout ports for maintenance
  • Large solids trap to minimize screen blockage
  • 304 stainless steel strainer element


WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

Specifications

  • Body & Cover Material: Fusion-bonded epoxy coated steel
  • Screen Material: 304 stainless steel
  • Screen Perforation: .25 inch diameter
  • Clean-Out Plug Material: Brass or Bronze
  • Flange Type: AWWA Class "D"
  • Grooves: AWWA C606
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Maximum Water Temperature: Up to 140°F (60°C)
  • Pipe Size: 4 inch (100mm)
  • Number of Cleanouts: Two

Certificates & Approvals

  • CULUS Listed 321
  • FM Approved Class 5551

FAQs

What is the primary application of this fire service strainer?

This fire service strainer is primarily used in non-potable water spray systems to protect against clogging caused by particles fouling sprinkler heads and other system devices like meters, backflow preventers, and flow alarms.

What materials are used in the construction of the Series 7002 strainer?

The body and cover are made from fusion-bonded epoxy coated steel. The strainer screen is 304 stainless steel with a .25 inch diameter perforation, and the clean-out plugs are brass or bronze.

Can this strainer be used for potable (drinking) water systems?

No, this product is designed for non-potable applications. It is illegal to use this product in any plumbing system providing water for human consumption in the United States. Always consult local water authorities and plumbing codes before installation.

What is the maximum operating pressure and temperature for this strainer?

The maximum working pressure for this strainer is 175 psi (12.1 bar), and it can handle water temperatures up to 140°F (60°C).

How many cleanout ports does the Series 7002 strainer have?

The Series 7002 strainer, as indicated by the product description and image, features two cleanout ports for efficient maintenance and debris removal.
