4 7002-2-Clean Outs-Groove x Groove

Item Number: 0691049
1 1
$8,342.24
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Strainer Size: 4 inch (100mm)
  • Weight: 225.0 lb
  • Connection Type: Groove x Groove
  • Number of Cleanouts: 2
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Body Material: Epoxy coated fabricated steel
  • Screen Material: 304 stainless steel
  • UL Listed 321 and FM Approved Class 5551
  • Protects water spray systems from clogging

Description

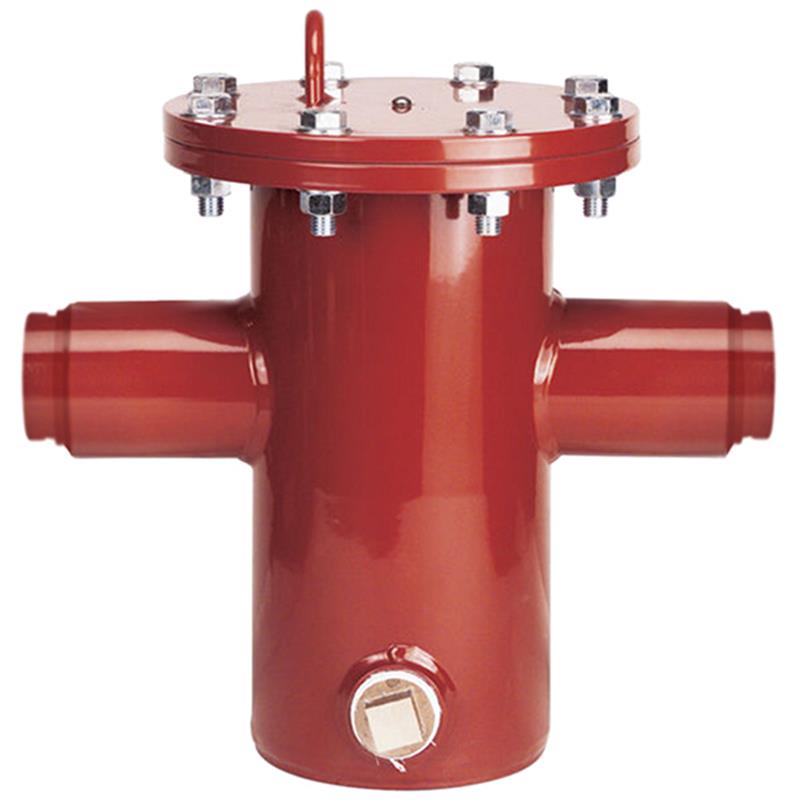

The Ames Fire & Waterworks Series 7002 is a 4 inch fire service basket strainer with two cleanout ports and groove x groove connections. It is specifically designed for non-potable water spray systems to protect against clogging from particles 1/4 inch diameter or larger, safeguarding devices like meters and backflow preventers. Constructed with an epoxy-coated steel body and a 304 stainless steel strainer element, it boasts a maximum working pressure of 175 psi and withstands water temperatures up to 140°F. This strainer is UL Listed 321 and FM Approved Class 5551, ensuring reliable performance in critical fire protection applications.

Help Me Connect

Connections

This strainer features 4 inch grooved ends, designed for seamless integration into fire protection systems using compatible 4 inch grooved piping components. The grooved connections ensure a secure and reliable seal, adhering to AWWA C606 standards for optimal performance and safety within your system.

View full details

Additional Details

This 4 inch Ames Fire & Waterworks Series 7002 fire service strainer is designed to protect water spray systems from clogging by trapping large particles. It is ideal for non-potable fire protection applications, safeguarding system devices like meters and backflow preventers.

Features

  • Epoxy coated fabricated steel body and cover for durability.
  • Equipped with two cleanout ports for easy maintenance.
  • Large solids trap design helps to minimize screen blockage.
  • Internal 304 stainless steel strainer element with .25 inch diameter perforations.
  • Designed to permit removal of the filter for replacement and repair without removing the body from the line.
  • A flush outlet is provided with each strainer.

Connections

  • Features grooved ends for secure installation.
  • Grooves comply with AWWA C606 standard.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

Specifications

  • Strainer Size: 4 inch (100mm)
  • Body and Cover Material: Fusion-bonded epoxy coated steel
  • Screen Material: 304 Stainless Steel
  • Screen Perforation: .25 inch diameter
  • Connection Type: Groove x Groove
  • Number of Cleanouts: 2
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Maximum Water Temperature: 140°F (60°C)
  • Clean-Out Plug Material: Brass or Bronze
  • Grooves Standard: AWWA C606

Certificates & Approvals

  • UL Listed: 321
  • FM Approved: Class 5551

FAQs

What is the primary purpose of this strainer?

This 4 inch fire service strainer is primarily used in non-potable water spray systems to trap foreign particles 1/4 inch in diameter or larger, preventing clogging of sprinkler heads and protecting system devices like meters and backflow preventers from damage.

What are the main connections on this strainer?

This specific Series 7002 strainer features 4 inch groove x groove connections, designed for secure and easy installation with compatible grooved piping components.

What materials are used in the construction of the strainer?

The body and cover are made from fusion-bonded epoxy coated fabricated steel, while the strainer element is 304 stainless steel with .25 inch diameter perforations. The clean-out plugs are Brass or Bronze.

What is the maximum operating pressure and temperature for this strainer?

The strainer has a maximum working pressure of 175 psi (12.1 bar) and can operate with water temperatures up to 140°F (60°C).

Does this strainer have any safety certifications?

Yes, this Ames Fire & Waterworks Series 7002 strainer is UL Listed 321 and FM Approved Class 5551, confirming its suitability and reliability for fire protection applications.
