4 AVS-C Mechanical Joint x Mechanical Joint

Item Number: 0693221
1 1
$1,886.20
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Size: 4 inch
  • Weight: 157.0 lb
  • Body Material: Ductile Iron
  • Connection Type: Mechanical Joint x Mechanical Joint
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 32°F to 140°F
  • Coating: Fusion Epoxy Coated
  • Lead Content: Less than 0.25% by weight
  • Augments N Series backflow prevention valve installation

Description

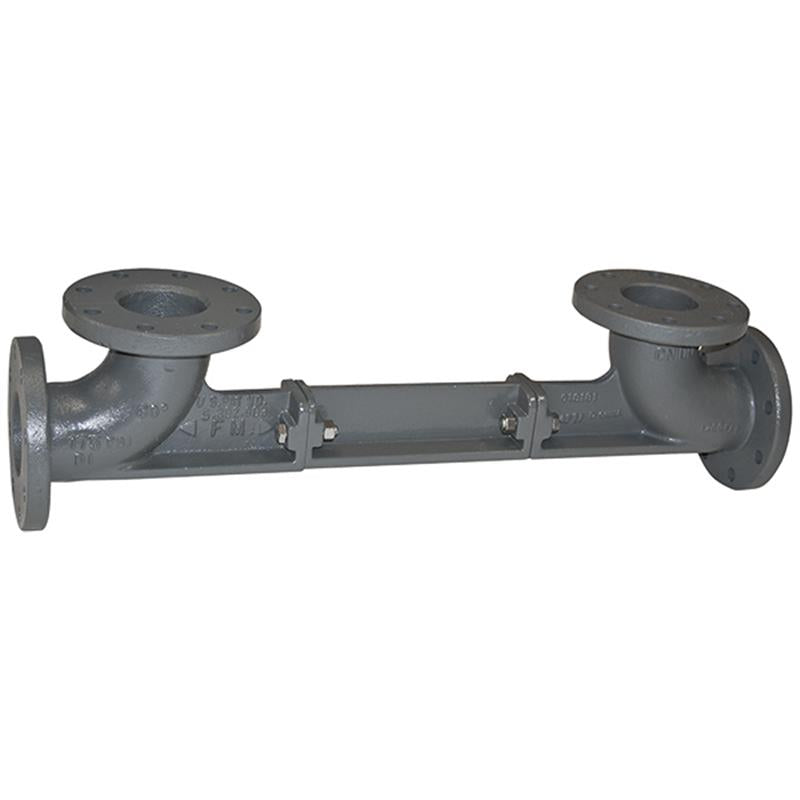

This 4 inch Ames Series AVS Valve Setter is a ductile iron component engineered to augment the installation of N series backflow prevention valves. It features a Mechanical Joint by Mechanical Joint (MJxMJ) configuration for secure piping connections. The valve setter is constructed from fusion epoxy coated ductile iron, providing corrosion resistance. It operates within a temperature range of 32°F to 140°F and can handle a maximum working pressure of 175 PSI. Designed to eliminate the need for thrust blocks, it simplifies installation while ensuring system stability. The wetted surface contains less than 0.25% lead by weight. Item number 0693221.

Help Me Connect

Compatibility and Installation

  • This Ames Series AVS Valve Setter is specifically designed for use with N series backflow prevention valves, including models such as C400NBFG and C500NBFG.
  • The unit features Mechanical Joint (MJ) connections on both ends, allowing for secure attachment to corresponding mechanical joint piping.
  • Depending on local conditions, the use of external mechanical joint restraint devices may be required at the pipe connections for added stability.
  • Remember that mechanical joint accessories, flange bolts, and gaskets are generally not included with the valve setter (except for center joints).
View full details

Additional Details

The 4 inch Ames Series AVS Valve Setter is specifically designed to augment the installation of N series backflow prevention valves, providing reliable support for piping systems.

Features

  • Constructed with a corrosion resistant fusion epoxy coating, applied internally and externally, for long-lasting protection.
  • Designed to eliminate the need for traditional thrust blocks or other restraints at the point of installation, streamlining setup.
  • Features integral ductile iron support between elbows to transfer thrust downstream, enhancing system stability.

Connections

  • This valve setter utilizes a Mechanical Joint by Mechanical Joint (MJxMJ) configuration for secure pipe connections.

Specifications

  • Nominal Size: 4 inch (100mm)
  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external (AWWA C550)
  • Bolts & Nuts Material: Stainless steel
  • Connection Type: Mechanical Joint x Mechanical Joint
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Lead Content: Wetted surface contains less than 0.25% of lead by weight

Certificates & Approvals

  • Flanges: ANSI B16.1 Class 125 (Standard)
  • Flanges: ANSI AWWA C153 A21.53-88

FAQs

What is the primary purpose of the Ames Series AVS Valve Setter?

The Ames Series AVS Valve Setter is designed to augment and simplify the installation of N series backflow prevention valves by providing stable support and eliminating the need for thrust blocks.

What are the connection types for this specific valve setter?

This model features Mechanical Joint (MJ) connections on both ends, making it a Mechanical Joint by Mechanical Joint (MJxMJ) configuration.

What materials is the valve setter made from, and is it corrosion resistant?

The body is constructed from ductile iron A536 GR 65-45-12 and is internally and externally coated with fusion epoxy (AWWA C550) for superior corrosion resistance. The bolts and nuts are made of stainless steel.

What is the maximum operating pressure and temperature range for this product?

This valve setter can handle a maximum working pressure of 175 PSI (12.1 bar) and is suitable for temperatures ranging from 32°F to 140°F (0°C to 60°C).

Is this product considered lead-free for potable water applications?

Yes, the wetted surface of this product that contacts consumable water contains less than 0.25% of lead by weight, meeting lead-free requirements.
