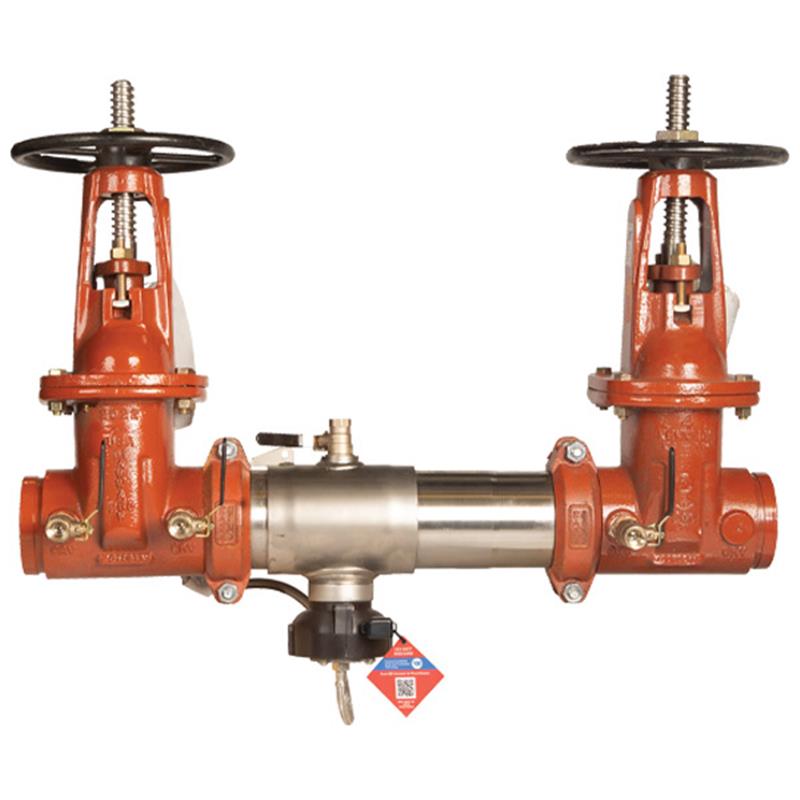

This Colt 4 inch lead free reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and backpressure.

It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards.

Product Overview

• The Colt C400 Series assembly provides protection to the potable water system in accordance with national plumbing codes.
• Designed for health hazard applications, protecting against contamination from backsiphonage and backpressure.
• Features Lead Free* construction, with wetted surfaces containing less than 0.25% of lead by weight.
• Approved for horizontal installation when installed in accordance with the direction of the flow arrow.

Flood Detection System

• Includes an integrated flood sensor with SentryPlus Alert® technology to detect excessive water discharge from the relief valve.
• When an add-on connection kit (sold separately) is paired, the sensor activates to relay multichannel alerts (call, email, text) for potential flooding events.
• Sensor Control Monitor connection kits enable integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi.

Construction & Features

• Extremely compact design, allowing for smaller enclosures.
• Body constructed from Type 304 (Schedule 40) stainless steel housing and sleeve with a quick access sleeve.
• Equipped with two independent Link Check modules with reversible elastomer discs for drip-tight closure.
• Features OSY resilient seated gate valves with grooved inlet and grooved outlet connections.
• Torsion spring check modules offer unmatched ease of serviceability.
• Groove couplings for easy installation and integral pipeline adjustment.
• Patented link check for lowest pressure loss.
• Includes drip tight shutoff valves and required test cocks.
