4 C400N-DOSY-FS

Item Number: F0206389
1 1
$10,598.33
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 4 inch
  • Weight: 500.0 lb
  • Body Material: Type 304 Stainless Steel
  • Valve Type: Domestic OSY Resilient Seated Gate Valves
  • Features: Integrated Flood Sensor with SentryPlus Alert Technology
  • Installation Pattern: Horizontal N-Pattern
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F
  • Approvals: ASSE 1013, CSA B64.4, UL Classified, FM Approved, NSF/ANSI 61-G

Description

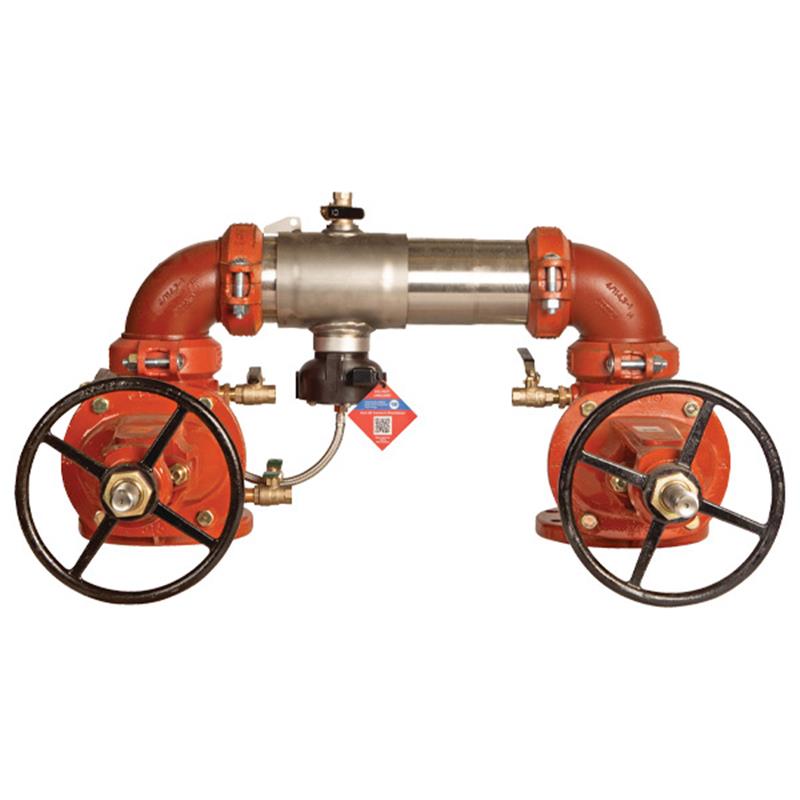

The Colt 4 inch stainless steel reduced pressure zone (RPZ) backflow preventer assembly protects potable water from contamination due to backsiphonage and backpressure. Featuring Type 304 stainless steel construction and domestic OSY resilient seated gate valves, this Lead Free* unit includes a SentryPlus Alert® flood sensor to detect relief valve discharge. Its compact design and groove fittings allow for easy horizontal N-pattern installation. Approved by ASSE, UL, FM, NSF, and AWWA, it operates up to 175 psi and 140°F, ideal for health hazard cross-connection protection. Item F0206389.

Help Me Connect

Installation & Connections

This 4 inch Colt C400 backflow preventer is designed for horizontal N-pattern installation. It features groove couplings for easy installation and precise pipeline alignment. The integrated flood sensor requires an add-on connection kit to activate its communication capabilities for remote alerts. These kits enable integration with various systems including BMS, cellular communication, or the Nexa® platform via Wi-Fi.

View full details

Additional Details

This Colt™ 4 inch stainless steel reduced pressure zone (RPZ) backflow preventer assembly provides critical protection to potable water systems. It prevents the reverse flow of fire protection substances and non-potable water into the drinking water supply, safeguarding against backsiphonage and backpressure in continuous pressure piping applications and health hazard cross-connections.

The assembly features a flood sensor with SentryPlus Alert® technology, designed to detect excessive water discharges from the relief valve. When paired with an optional add-on connection kit, the sensor activates to relay multichannel alerts (call, email, text) to notify personnel about potential flooding events.

Features

  • Lead Free* construction to comply with lead-free installation requirements
  • Extremely compact design, 70% lighter than traditional designs
  • Type 304 (Schedule 40) stainless steel housing and sleeve for durability
  • Groove fittings for integral pipeline adjustment and ease of installation
  • Patented link check modules for lowest pressure loss and unmatched ease of serviceability
  • Domestic outside stem and yoke (OSY) resilient seated gate valves for drip-tight shutoff
  • Includes an integrated supervisory switch as an option on each gate valve of the OS&Y model
  • Configurable for horizontal N-pattern installation
  • Reversible elastomer check discs (silicone or EPDM)
  • Sensor on relief valve for flood detection with SentryPlus Alert® technology
An add-on connection kit is required to activate the flood sensor's communication features. Without the kit, the sensor is passive and will not communicate with other devices.

Specifications

  • Product Type: Reduced Pressure Zone Backflow Preventer
  • Size: 4 inch
  • Body Material: Type 304 (Schedule 40) Stainless Steel (Housing & Sleeve)
  • Valve Type: Domestic Outside Stem and Yoke (OSY) Resilient Seated Gate Valves
  • Configuration: Horizontal N-Pattern Installation
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Link Checks: Noryl®, Stainless Steel
  • Check Discs: Reversible Silicone or EPDM
  • Test Taps: Lead Free* Bronze Body
  • Pins & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)

Certificates & Approvals

  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C511-97
  • ASSE 1013
  • CSA B64.4
  • UL Classified (BFG & OSY Only)
  • FM Approved (BFG & OSY Only)
  • NSF/ANSI 61-G Certified

FAQs

What is the primary function of the Colt C400 RPZ backflow preventer?

The Colt C400 RPZ assembly is designed to protect potable water systems from contamination by preventing the reverse flow of non-potable substances due to backsiphonage or backpressure, particularly in health hazard cross-connections.

How does the integrated flood sensor work?

The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. When an add-on connection kit is installed, it can relay multichannel alerts (call, email, text) to notify personnel about potential flooding.

What materials are used in the construction of this backflow preventer?

The housing and sleeve are constructed from Type 304 (Schedule 40) stainless steel. Elastomers include EPDM, silicone, and Buna 'N'. Link checks are Noryl® and stainless steel, while test taps are Lead Free* bronze.

What type of shutoff valves are included with this assembly?

This assembly features domestic outside stem and yoke (OSY) resilient seated gate valves, which are UL Classified and FM Approved. These valves provide drip-tight shutoff.

What installation patterns are supported for this model?

This specific Colt C400N-DOSY-FS backflow preventer is configured for horizontal N-pattern installation, allowing for versatility in various piping layouts.
